LFXS30766D 5

LFXS30766D 5

Written by

in

LFXS30766D 5

Products

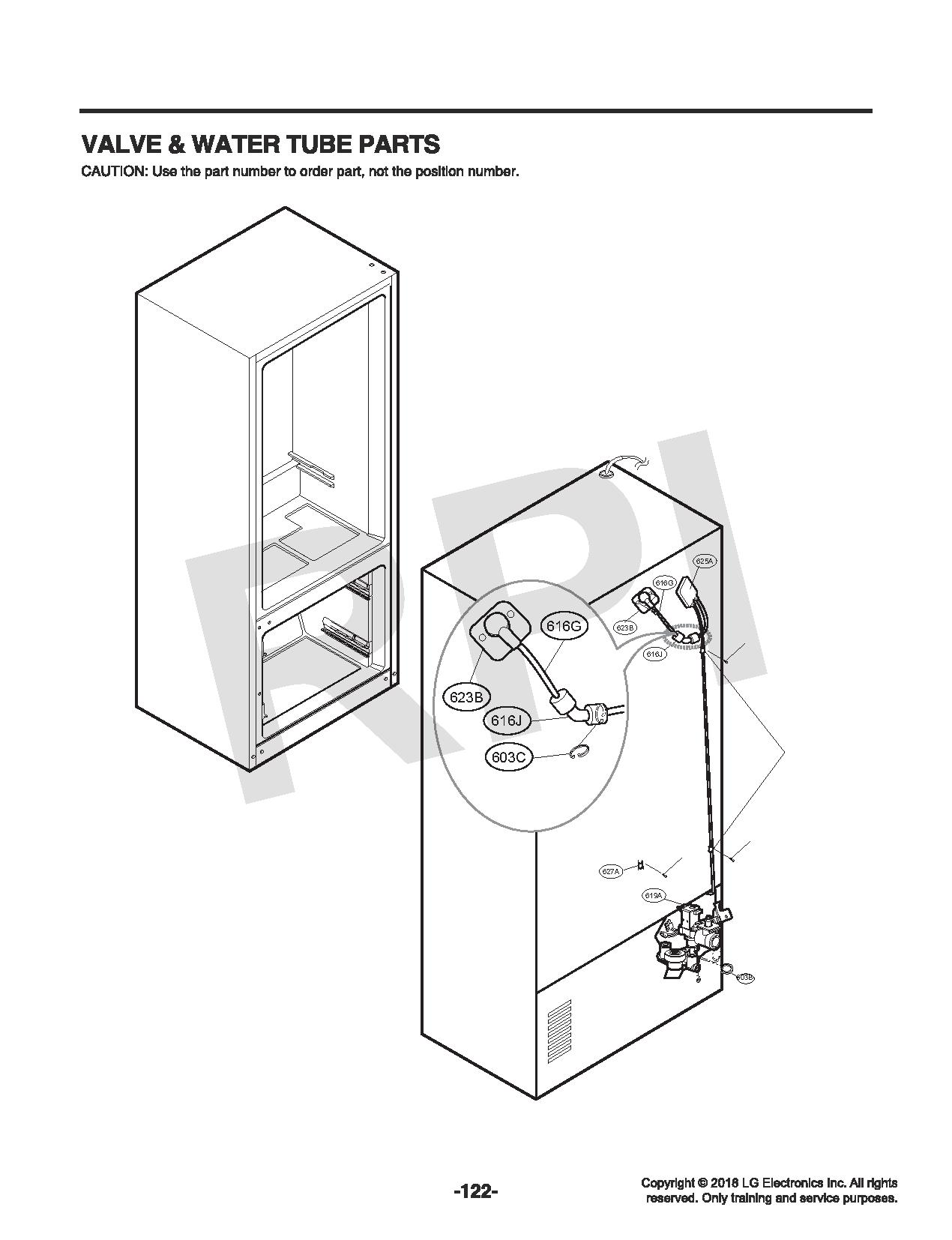

PositionProduct
S044J00415H LG Custom Screw
600AAEQ73130004 LG Refrigerator Ice Maker Kit
600CACQ90087901 LG Motor Cover Assembly
600GMCZ63273301 LG Refrigerator Multi Duct
600HMCZ63273401 LG Refrigerator Multi Duct
600IMDS64013907 LG Foam Gasket
600JMEA63570501 LG Water Guide
603C4004JA3002A LG Refrigerator Ice Maker Water Supply Tubing Clip
603B4930JA3091A LG Refrigerator Water Line Connector Clip
606AMOTOR-AC INDOOR
607A4931JA3005B LG Refrigerator Bracket Holder Assembly
611ABUCKET ASSY-ICE
612AEAU62563503 LG AC Motor
616GAJR56656503 LG Refrigerator Ice Water Line Tube Assembly
616JMCD63827601 LG Connector Tube
619AAJU72992603 LG Refrigerator Water Inlet Fill Valve
623B5006JJ2009A LG Cap Cover
625A3550JA2184B LG Refrigerator Tube Cover
627AMEG42758602 LG Pipe Holder
630AADC72987149 LG Room Door Assembly
630Q4580JT3001B LG Refrigerator Roller
630JADX73250601 LG Refrigerator Door Seal Gasket
630HMCK66593601 LG Refrigerator Home Bar Cover
630GAEH73577903 LG Lower Hinge Assembly
630FAEH72976201 LG Upper Hinge Assembly
630DMEB61894003 LG Refrigerator Ice Room Door Handle
630CGASKET-DOOR
630EMCK63734907 LG Refrigerator Lever Cover
