LFXS32766S 0

LFXS32766S 0

Written by

in

LFXS32766S 0

Products

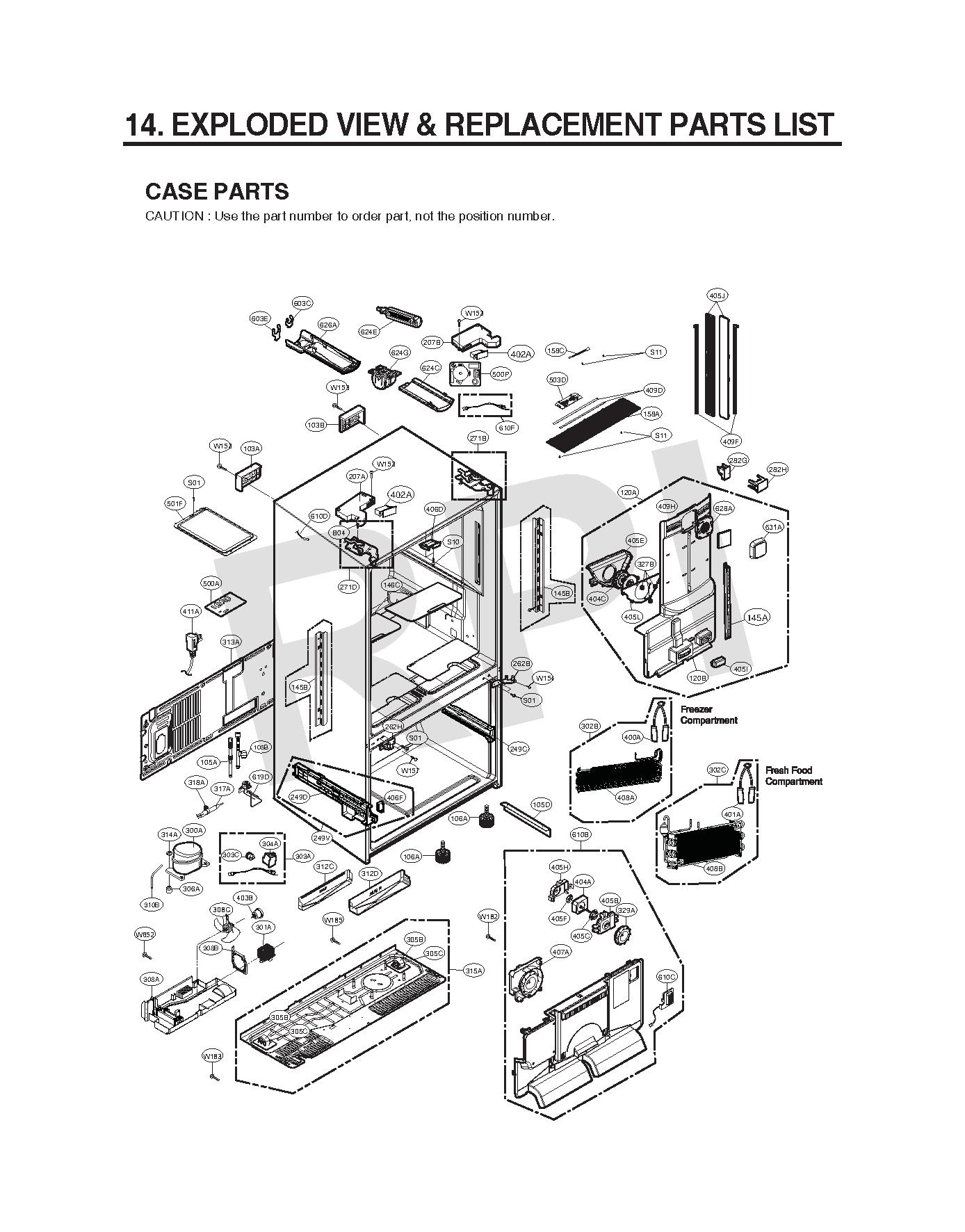

PositionProduct
103B3650JA2061W LG Rear Handle
103A3650JA2061X LG Rear Handle
105ATUBE ASSY-DRAIN
105D5070JA3002S LG Lower Skirt
105B5251JA2006B LG Drain Tube Assembly
106AAFC72909201 LG Leg Assembly Adjust
120AADJ73252226 LG Duct Multi Assembly
120AADJ73252238 LG Multi-Duct Assembly
120BMCZ62772101 LG Refrigerator Multi Duct
145AMEG62685901 LG Refrigerator Shelf Holder
145BMEG62685801 LG Refrigerator Shelf Holder
146CACQ85959312 LG Refrigerator Dairy Door Cover Assembly
158CSENSOR-TEMPERATURE
158AMCK67195101 LG Refrigerator Lamp Cover
207AMCK68187502 LG Refrigerator Hinge Cover Assembly
207BMCK68412501 LG Hinge Cover
249VAEC73697501 LG Refrigerator Guide Assembly-Rail
249DHolder,Rail
249CAEC73317810 LG Rail Guide Assembly
262BAEH73816902 LG Center Hinge Assembly
262HAEH73816904 LG Hinge Assembly Center
271BAEH60614106 LG Upper Hinge Assembly
271DAEH60614101 LG Upper Hinge Assembly
282GMBL65039901 LG Refrigerator Duct Cap
282HMBL65205601 LG Refrigerator Duct Cap
300ATCA35111303 LG Left Compression Assembly
300ATCA36491304 LG Compressor
301AACG73645004 LG Condenser Wire Assembly
302BADL73980910 LG Refrigerator Evaporator Assembly
302CADL73881001 LG Evaporator Assembly
303C6750CL0001F LG Refrigerator Overload Protector
303AEBG63205833 LG Refrigerator PTC Thermistor Assembly
303COVERLOAD PROTECT
303ATHERMISTOR ASSY-PTC
304AMCK70052506 LG Refrigerator PTC Cover
304A3550JA2110B LG Cover
305C1PZZJA3013B LG Common Pin
305BMHA62513601 LG Refrigerator Roller
306AMCQ66921101 LG Refrigerator Compressor Damper
308CADP73273401 LG Fan Assembly
308BMEA42772903 LG Fan Guide
308AMJS62233503 LG Drip Tray
310B4J00977P LG Compressor Sealing Pipe
312C3391JJ2013J LG Drain Tray Assembly
312D3391JJ2013N LG Refrigerator Drain Tray Assembly
313AACQ86284803 LG Refrigerator Machinery Cover Assembly
314A4620JA3015A LG Refrigerator Compressor Stopper
315AAAN77088901 LG Compressor Base Assembly
317AADH73150208 LG Dryer Assembly
318A4930JA3034A LG Dryer Holder
327B5040JA3063B LG Damper
329AADP73013901 LG Refrigerator Fan Assembly
400ACONTROLLER ASSY
401ACONTROLLER ASSY
402AEBF61314813 LG Refrigerator Magnet Switch
403BEAU62025701 LG DC Motor
403BEAU63103301 LG DC Motor
404CEAU63503709 LG Refrigerator DC Motor Assembly
404AEAU63103203 LG DC Motor
404CEAU65089701 LG DC Motor Assembly
404AEAU60694527 LG DC Motor
405F5040JA2004B LG Refrigerator Motor Rubber Grommet Support
405C5040JA2009B LG Refrigerator Damper Support Motor Rubber Grommet
405JMCK67195001 LG Lamp Cover
405IMCK61881401 LG Lamp Cover
405LMAZ63010801 LG Motor Bracket
405EMHN62542001 LG Refrigerator Shroud
405HMCK61880502 LG Motor Cover
405BMAZ61845401 LG Motor Bracket
406DMEG63261302 LG Refrigerator Door Holder
406FEBF61314816 LG Refrigerator Magnet Switch
407AABA72913415 LG Motor Bracket Assembly
407AABA72913423 LG Motor Assembly Bracket
408AMEE62225112 LG Heater Sheath
408BMEE62105206 LG Heater Sheath
409HEAV61572001 LG LED Assembly
409DEAV61916703 LG LED Assembly
409FEAV61916704 LG LED Assembly
410GEAE58905704 LG Electric Appliance Capacitor
411AEAD62329149 LG Power Cord Assembly
411AEAD61445236 LG Power Cord Assembly
500AEBR78940620 LG Refrigerator Main PCB Assembly
500AEBR78940605 LG Refrigerator Main PCB Assembly
500PEBR64730408 LG Power Control PCB Assembly
501F3551JA2144M LG PCB Cover Assembly
503DLGE MCK6722
