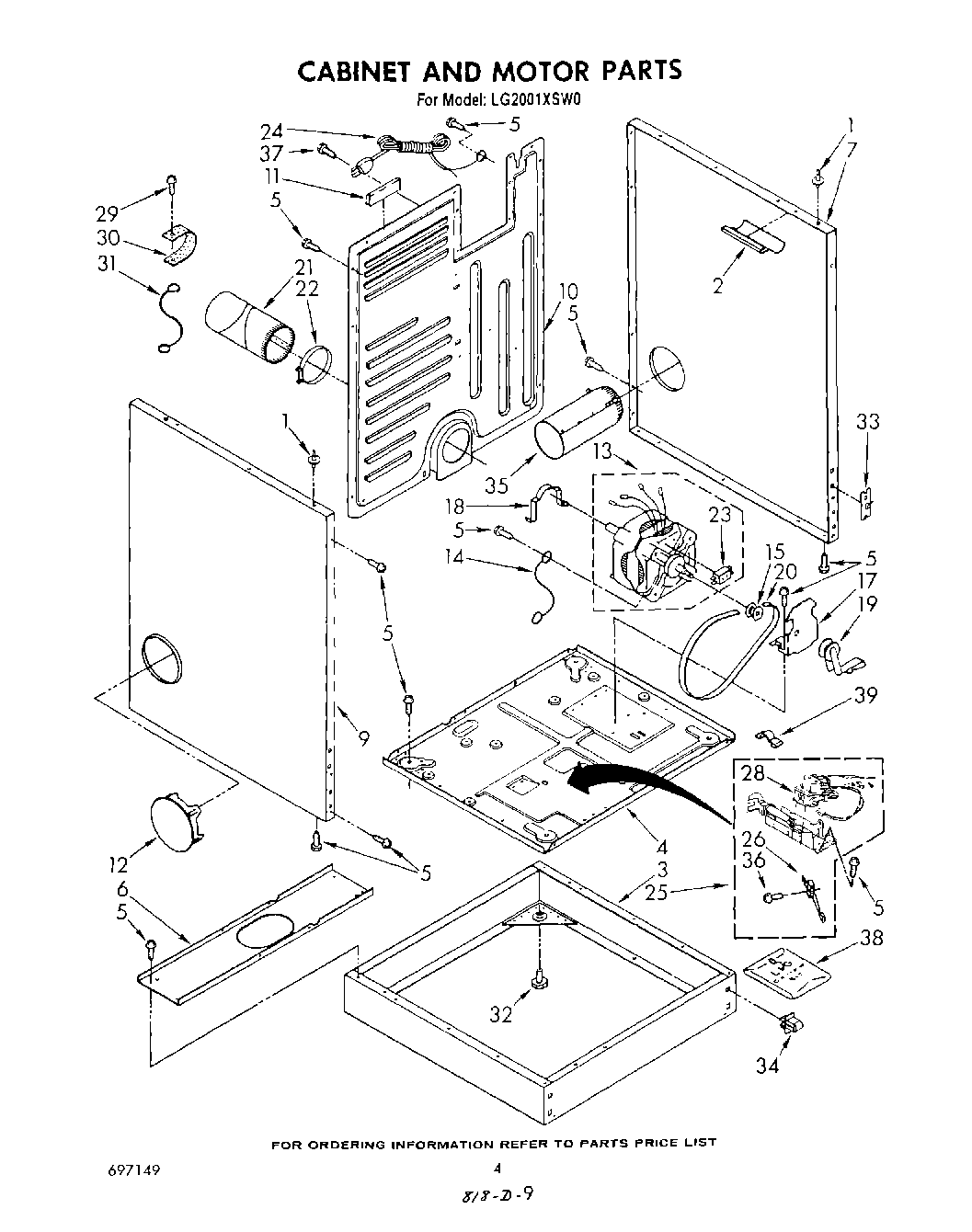

LG2001XSW0 03 – CABINET AND MOTOR

Products

Position	Product
1	Locator, Top
2	686770 Whirlpool Support Bracket
3	Pedestal Assembly
4	WP348726 Whirlpool Base Assembly
5	SCREW
6	Coverplate, Pedestal Rear Bottom
7	Panel, Side (R.H.) (Platinum)
7	Panel, Side (R.H.) (Toast)
7	Panel, Side (R.H.) (Golden Wheat)
7	Panel, Side (R.H.) (Almond)
7	Panel, Side (R.H.) (White)
9	Panel, Side (L.H.) (White)
9	Panel, Side (L.H.) (Toast)
9	Panel, Side (L.H.) (Golden Wheat)
9	Panel, Side (L.H.) (Almond)
9	Panel, Side (L.H.) (Platinum)
10	Panel, Rear
11	Protector, Panel (2)
12	692790 Whirlpool Plug
12	Plug, Side Panel (2) (Platinum)
12	Plug, Side Panel (2) (Golden Harvest)
12	Plug, Side Panel (2) (Almond)
12	Plug, Side Panel (2) (Toast)
14	Wire, Ground
15	W10837625 Whirlpool Dryer Motor Pulley
17	696541 Whirlpool Base
18	WP660658 Whirlpool Clamp
19	WP691366 Whirlpool Dryer Idler Pulley Assembly
20	3394652 Whirlpool Drum Belt
21	Pipe, Exhaust
22	Clamp, Hose
23	279827 Whirlpool Dryer Drive Motor
24	W11222083 Whirlpool Power Cord
25	Burner Assembly 60 Hz. (Type 1, 2 & 3) (White Rodgers)
26	279311 Whirlpool Dryer Flat Igniter with Bracket
28	279923 Whirlpool Gas Valve
29	Screw, Ground (10-24 x 1)
30	Strap, Ground
31	WPL 364089
32	WP233550 Whirlpool Leveling Feet
33	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
34	WPL 3388595
35	WPL 693738
36	WPW10366705 Whirlpool Screw
38	W10402145 Whirlpool LP Gas Connection
39	341029 Whirlpool Clamp
