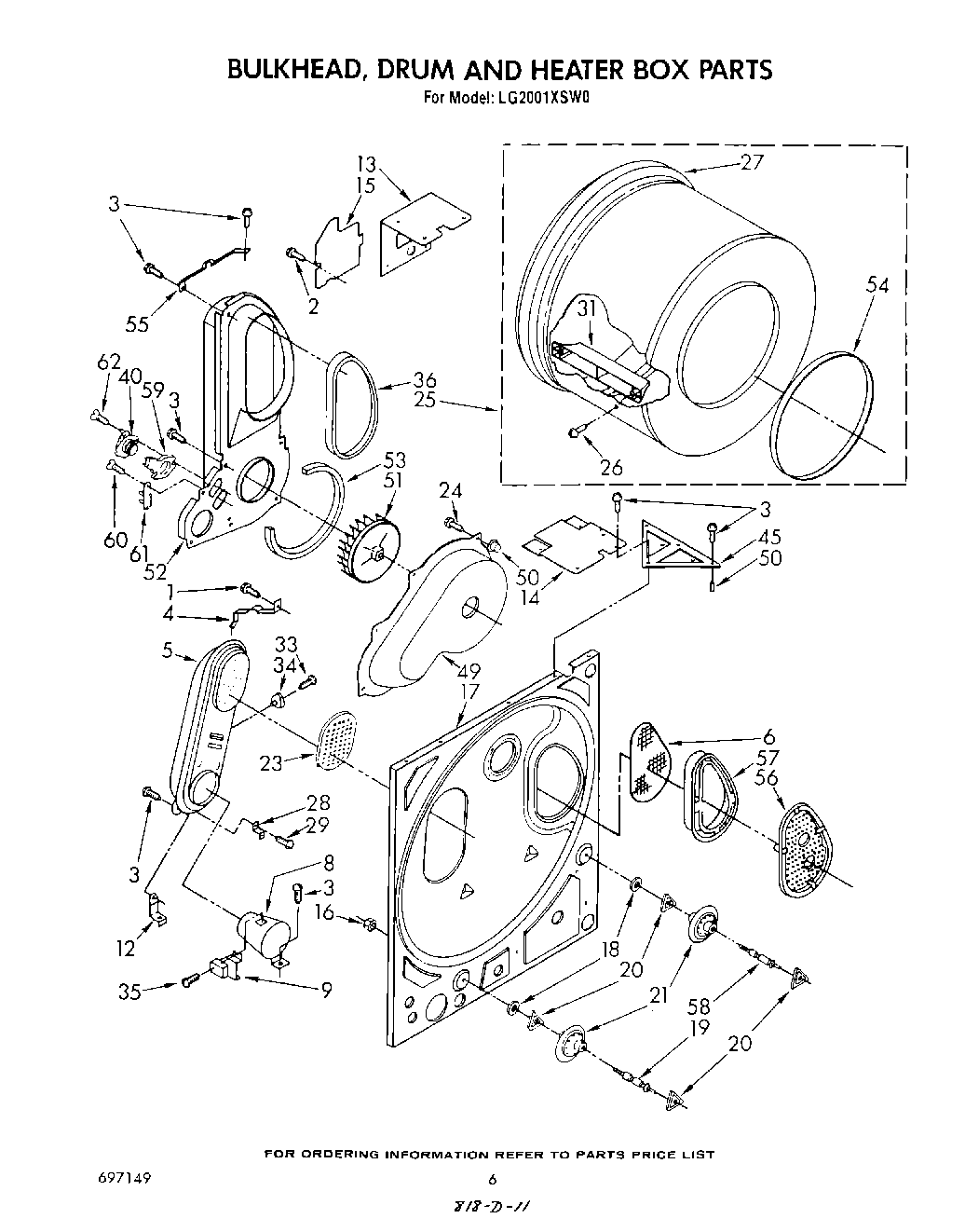

LG2001XSW0 05 – BULKHEAD, DRUM AND HEATER BOX , LIT

LG2001XSW0 05 – BULKHEAD, DRUM AND HEATER BOX , LIT

Written by

in

LG2001XSW0 05 – BULKHEAD, DRUM AND HEATER BOX , LIT

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL LIT697149
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL LIT3388161
WPL 72112
WPL LIT3387072
Guide, Dryer
72113 Whirlpool Touch-Up Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
799344 Whirlpool Refrigerator Paint
Leveler (Thinner)
Almond (Uncut)
72017 Whirlpool Appliance Touch-Up Paint White
Golden Harvest
WPL LIT787207
WPL LIT787206
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
WP72107 Whirlpool Touchup
2WP693995 Whirlpool Screw
3SCREW
4279771 Whirlpool Clip
5Box, Heater
6Screen, Back-Up
8279900 Whirlpool Box O/S1
9WP338906 Whirlpool Dryer Gas Sensor
12347455 Whirlpool Support Assembly
13279304 Whirlpool Block Terminal
14Support, Terminal Block Extension
15W11736322 Whirlpool Cover Assembly
16WP358160 Whirlpool Nut
17Bulkhead
18WP348197 Whirlpool Washer Assembly
19SHAFT SUPPORT ROLLER DRYER
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21349241T Whirlpool Dryer Drum Support Roller Kit
23345335 Whirlpool Cover
24WP308685 Whirlpool Microwave Screw
253391834 Whirlpool Drum
26Screw, 11-16 x 7/8
27SEAL
28Spacer, Heater Box
29WP33001882 Whirlpool Screw
31685207 Whirlpool Dryer Baffle
33WP90767 Whirlpool Screw
34Thermostat, 205 F (96 C)
35WP3390631 Whirlpool Screw
36SEAL
40WP694674 Whirlpool Cycling Thermostat
45345325 Whirlpool Gusset
49696419 Whirlpool Housing
50W10491983 Whirlpool Tine Tip
51WP696426 Whirlpool Wheel
52Duct, Air
53Seal, Fan Scroll
54WP3394508 Whirlpool Bearing Ring
55345396 Whirlpool Clip
57W10828351 Whirlpool Dryer Filter Lint Screen with Cover
58SHAFT SUPPORT ROLLER DRYER
59Heater, Thermostat
60WP488729 Whirlpool Refrigerator Door Screw
61WP3392519 Whirlpool Dryer Thermal Fuse
62WP965173 Whirlpool Dishwasher Screw
