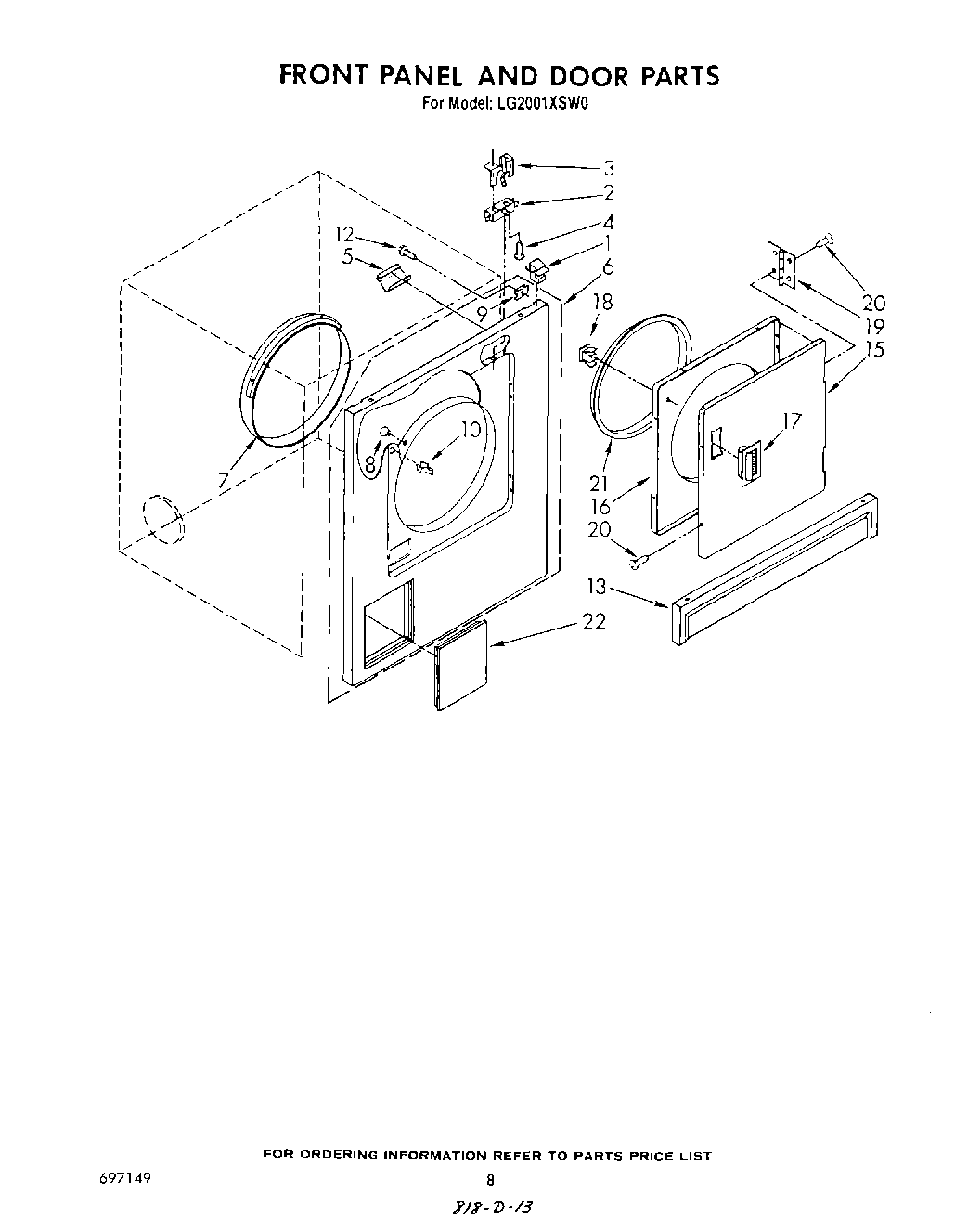

LG2001XSW0 06 – FRONT PANEL AND DOOR

Products

Position	Product
1	WP345670 Whirlpool Lock
2	W10820036 Whirlpool Door Switch Kit
3	WP691581 Whirlpool Actuator
4	WP98129 Whirlpool Screw
5	WPL 686768
6	Panel, Front (Also Includes Illus. 7) (Platinum)
6	Panel, Front (Also Includes Illus. 7) (Toast)
6	Panel, Front (Also Includes Illus. 7) (Golden Wheat)
6	Panel, Front (Also Includes Illus. 7) (Almond)
6	Panel, Front (Also Includes Illus. 7) (White)
7	279264 Whirlpool Bearing and Seal Kit
8	279220 Whirlpool Clip
9	WP98234 Whirlpool Nut
12	SCREW
13	Panel, Toe (Almond)
13	Panel, Toe (Platinum)
13	Panel, Toe (Toast)
13	Panel, Toe (Golden Wheat)
13	Panel, Toe (White)
15	WPL 689319
15	WP348205 Whirlpool Door
15	Door, Front (Toast)
15	Door, Front (Platinum)
15	Door, Front (Almond)
16	280077 Whirlpool Door
17	Handle, Door (Almond)
17	Handle, Door (Platinum)
17	Handle, Door (Golden Harvest)
17	Handle, Door (Toast)
17	WP686711 Whirlpool Door Handle
18	279570 Whirlpool Dryer Door Latch Kit
19	WP348023 Whirlpool Hinge
20	WP694091 Whirlpool Screw
21	W11613302 Whirlpool Door Seal
22	Door, Access (Golden Harvest)
22	Door, Access (Almond)
22	Door, Access (Platinum)
22	Door, Access (Toast)
22	Door, Access (White)
