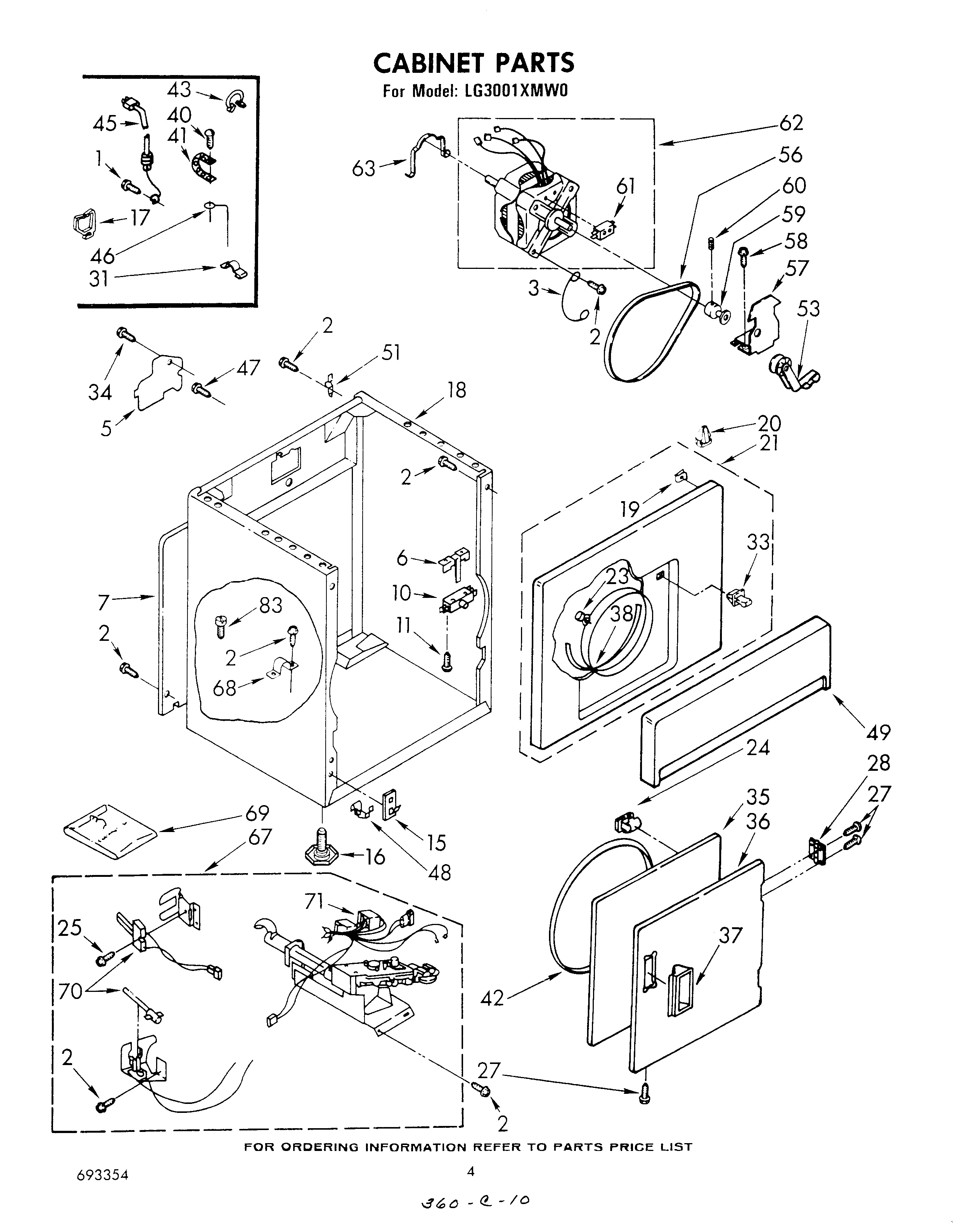

LG3001XMW0 03 – CABINET

Products

Position	Product
1	SCREW
3	Wire, Ground (Motor)
5	W11736322 Whirlpool Cover Assembly
6	WP691581 Whirlpool Actuator
7	Panel, Rear
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
15	Clip, Toe Panel
16	49621 Whirlpool Leveling Feet
17	Clip, Harness (Rear Bulkhead Area)
18	Cabinet (White)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel Assembly (White)
23	279220 Whirlpool Clip
25	WPW10366705 Whirlpool Screw
27	Screw
28	WP348023 Whirlpool Hinge
31	8528351 Whirlpool Clip
33	279570 Whirlpool Dryer Door Latch Kit
35	280077 Whirlpool Door
36	WP348205 Whirlpool Door
37	WP686711 Whirlpool Door Handle
38	279264 Whirlpool Bearing and Seal Kit
40	Screw, Ground (10-24 x 1)
41	Strap, Ground
42	W11613302 Whirlpool Door Seal
43	Clamp, Harness
45	W11222083 Whirlpool Power Cord
46	WPL 364089
48	WP297092 Whirlpool Clip
49	Panel, Toe (White)
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	W11233559 Whirlpool Motor Pulley
60	SCREW, SET
61	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
67	Burner Assembly, 60 Hz. (Type 1, 2 & 3) (White Rodgers)
67	Burner Assembly, 60 Hz. (Alternate) (Refer To
68	341029 Whirlpool Clamp
69	Kit, Conversion Type 1 To Type 3 (MFD)
69	W10402145 Whirlpool LP Gas Connection
70	279311 Whirlpool Dryer Flat Igniter with Bracket
71	BURNER-GAS
83	WPL 343826
