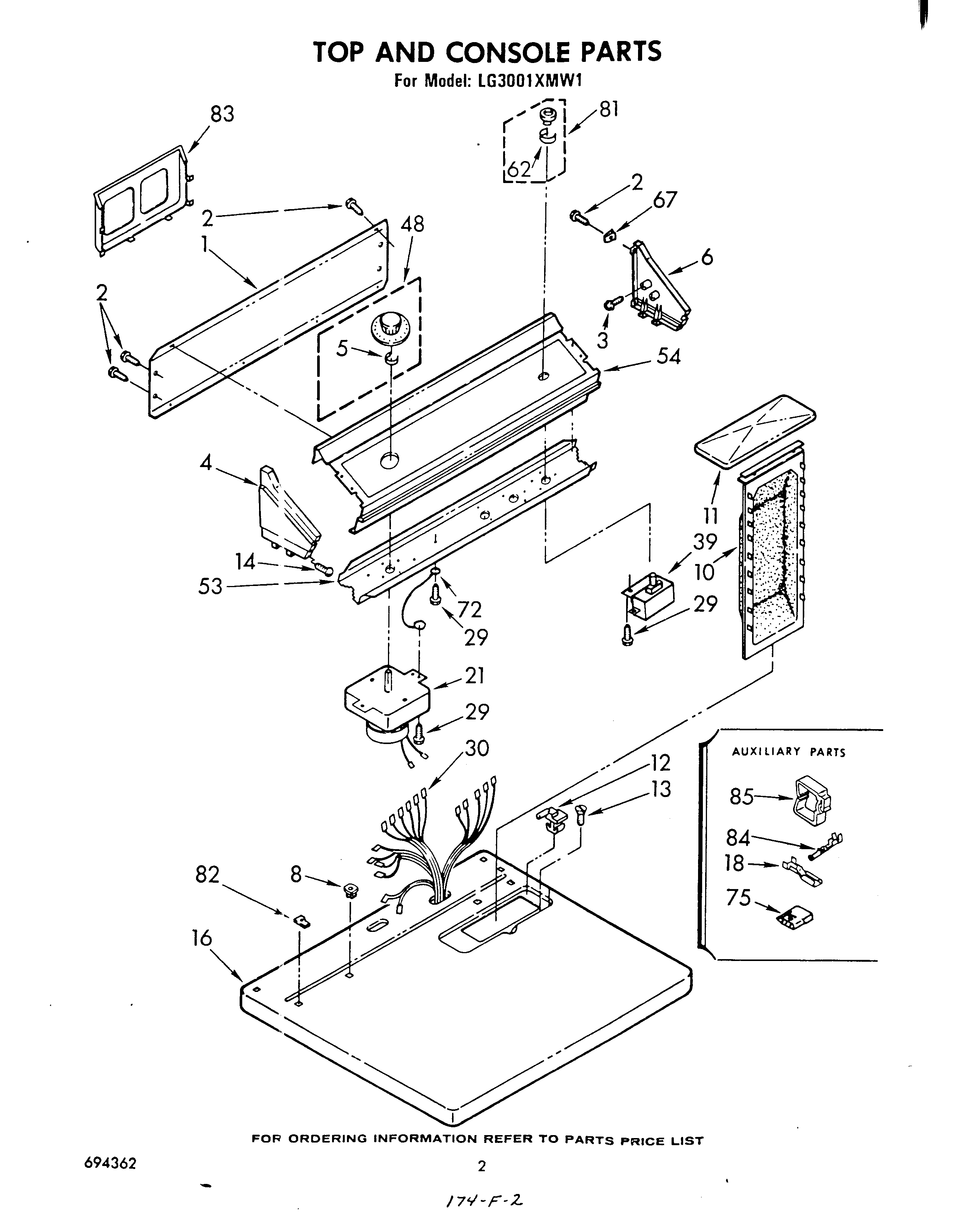

LG3001XMW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

Position	Product
	799344 Whirlpool Refrigerator Paint
1	Panel, Rear Console
2	SCREW
3	WPL 355326
4	Cap, End (L.H.) (White)
5	WP688805 Whirlpool Spring Clip
6	Cap , End (R.H.) (White)
8	Stop, Push-In Top
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Screw, 8-18 x 1 (2)
16	top (white)
18	WP94614 Whirlpool Terminal
21	Timer Assembly, 60 Hz.
29	WP3390631 Whirlpool Screw
30	Harness, Wiring
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
39	(Alt.)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	Clip
67	Clip (4)
72	Wire, Ground
75	Connector (Door Switch)
75	353424 Whirlpool Connector
81	Pushbutton Assembly
82	Nut, Push-In (2)
83	Rack, Literature
84	WP596797 Whirlpool Terminal
85	Guide, Use & Care
85	350938 Whirlpool Spray Gun
85	WPL 694344
85	72017 Whirlpool Appliance Touch-Up Paint White
85	WPL 693849
85	Leveler (Thinner)
85	Clip, Harness (Rear Bulkhead Area)
85	WPL 799351
85	350930 Whirlpool White Spray Paint
85	List, Service Parts
