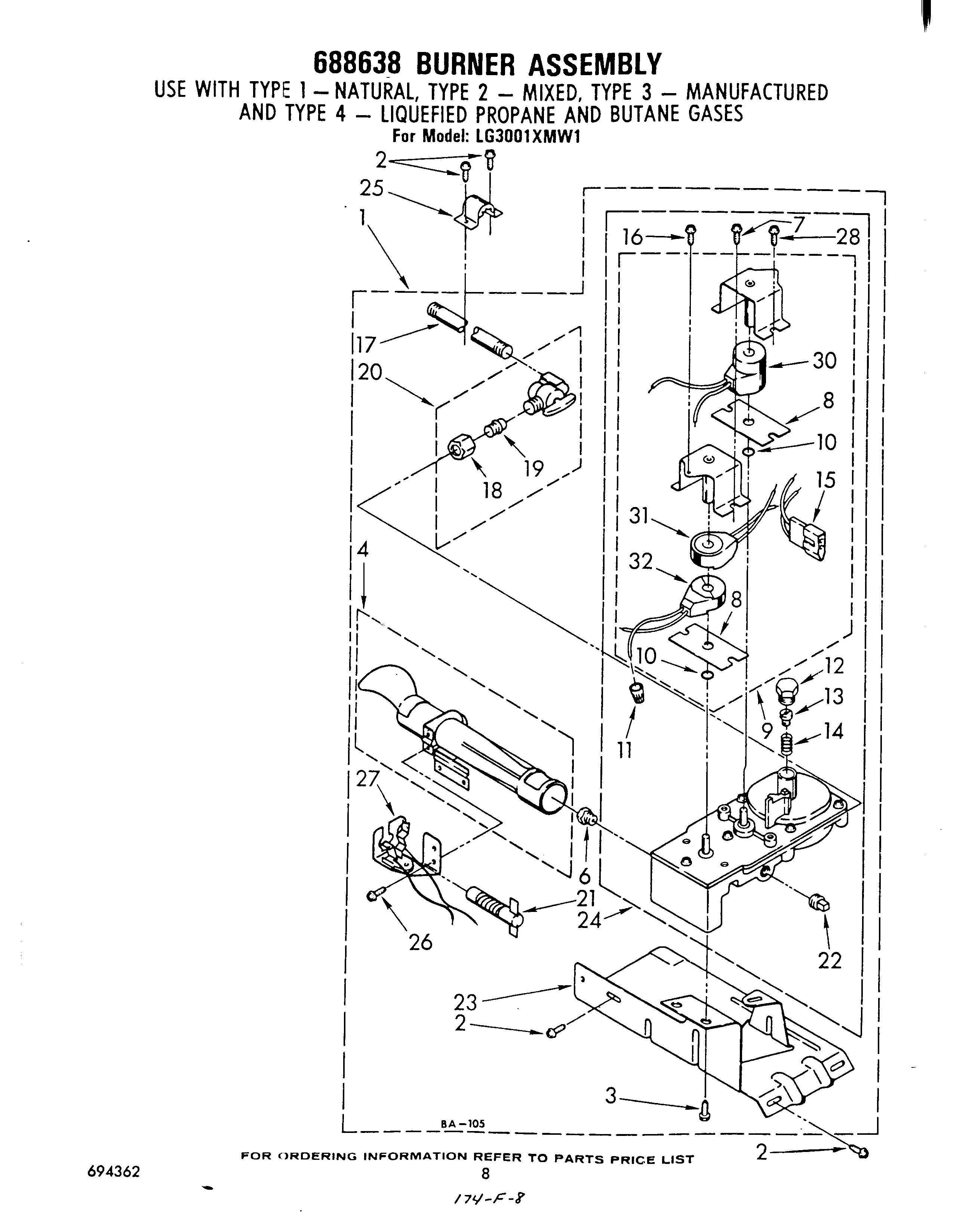

LG3001XMW1 06 – 688638 BURNER ASSEMBLY

LG3001XMW1 06 – 688638 BURNER ASSEMBLY

Written by

in

LG3001XMW1 06 – 688638 BURNER ASSEMBLY

Products

PositionProduct
1Burner Assembly, 60 Hz. (Alternate) (Refer To
2SCREW
3WP90767 Whirlpool Screw
4WP693140 Whirlpool Burner
6Orifice, Burner (Type 1)
6WP15418 Whirlpool Gas Orifice
6Orifice, Burner (Type 3)
6Orifice, Burner (Type 4 (Butane))
6WP229742 Whirlpool Gas Orifice
7WP489128 Whirlpool Refrigerator Screw
8Plate (2)
9BURNER-GAS
10Ring, “O“ (2)
11Connector, Wire (3)
12Screw, Leak Limiter
13Screw, Regulator Adjustment
14Spring, Regulator
15353424 Whirlpool Connector
16Screw, 6-20 x 5/16
17Pipe, Gas Supply
18Nut, Compression
193393767 Whirlpool Pipe
20Valve & Union, Shut-Off
21279311 Whirlpool Dryer Flat Igniter with Bracket
22W10295523 Whirlpool Plug
23Baseplate
24Valve Assembly, 60 Hz.
25341029 Whirlpool Clamp
26WPW10366705 Whirlpool Screw
28Screw, 8-32 x 5/8 (2)
30Coil Assembly (Main)
31Coil Assembly (Hold)
32Kit, Conversion Type 1 To Type 3 (MFD)
32Coil Assembly (Assist)
32W10402145 Whirlpool LP Gas Connection
