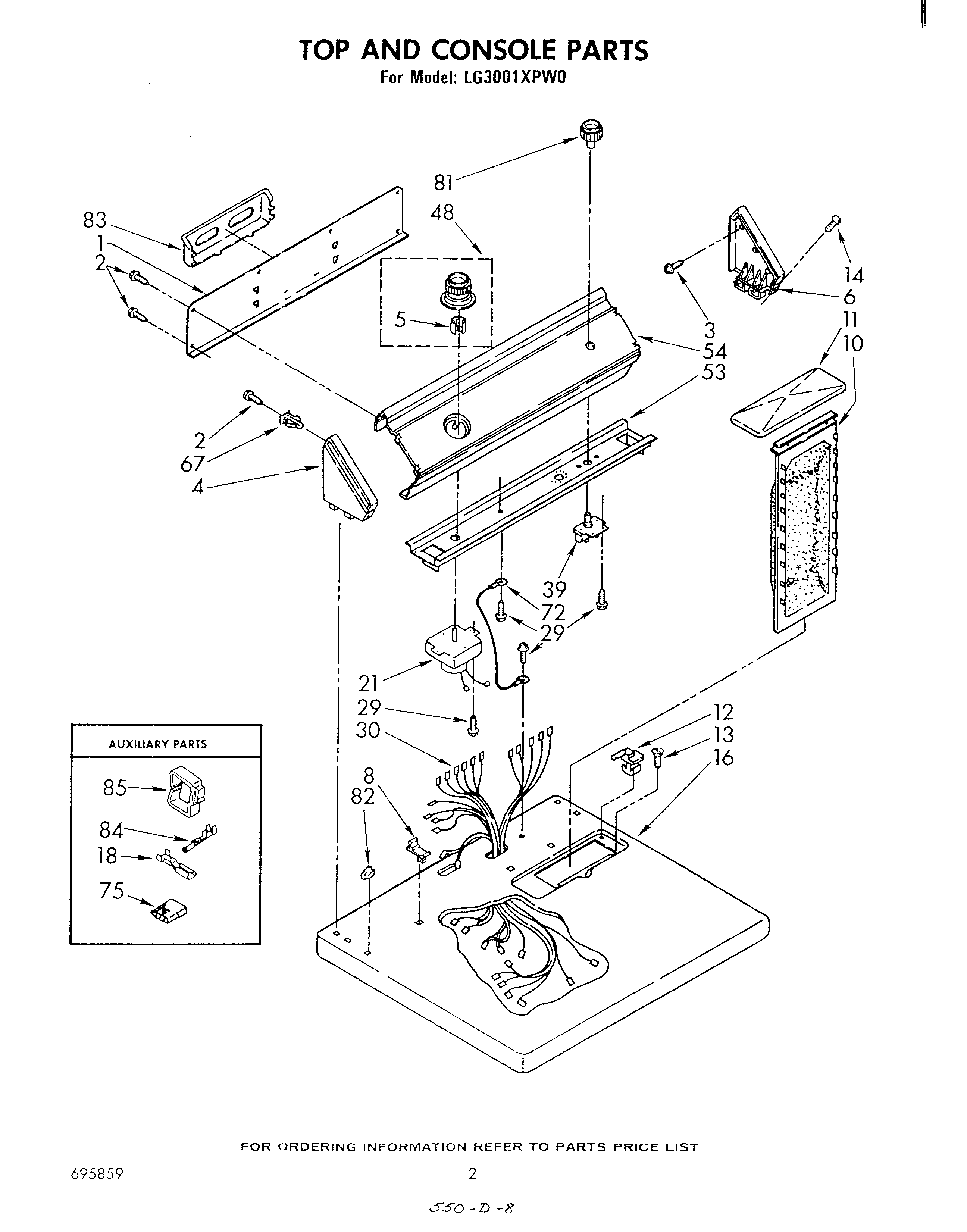

LG3001XPW0 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

LG3001XPW0 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

Written by

in

LG3001XPW0 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
WPL LIT677967
Washer (Belt Drive)
List, Service Parts
Guide, Dryer
Leveler (Thinner)
WPL LIT694344
Guide, Use & Care
Dryer
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
1Panel, Rear
2WP489069 Whirlpool Compactor Screw
3WPL 355326
4Cap, End (L.H.)
5WP688805 Whirlpool Spring Clip
6WPL 63796
8Stop, Push-In Top
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WPL 64211
16Top (White)
18WP94614 Whirlpool Terminal
21Timer Assembly, 60 Hz.
29WP3390631 Whirlpool Screw
30Harness, Wiring
39(Alt.)
39Switch, Push-To-Start
39Switch, Push-To-Start (Alternate)
48Timer Knob & Dial
53Bracket, Control
54PANEL, CONTROL
62Clip
67WP689559 Whirlpool Nut
72Wire, Ground
75353424 Whirlpool Connector
75Connector (Door Switch)
81Knob, Push-To-Start
82Nut, Push-In (2)
83Rack, Literature
84WP596797 Whirlpool Terminal
85Clip, Harness (Rear Bulkhead Area)
