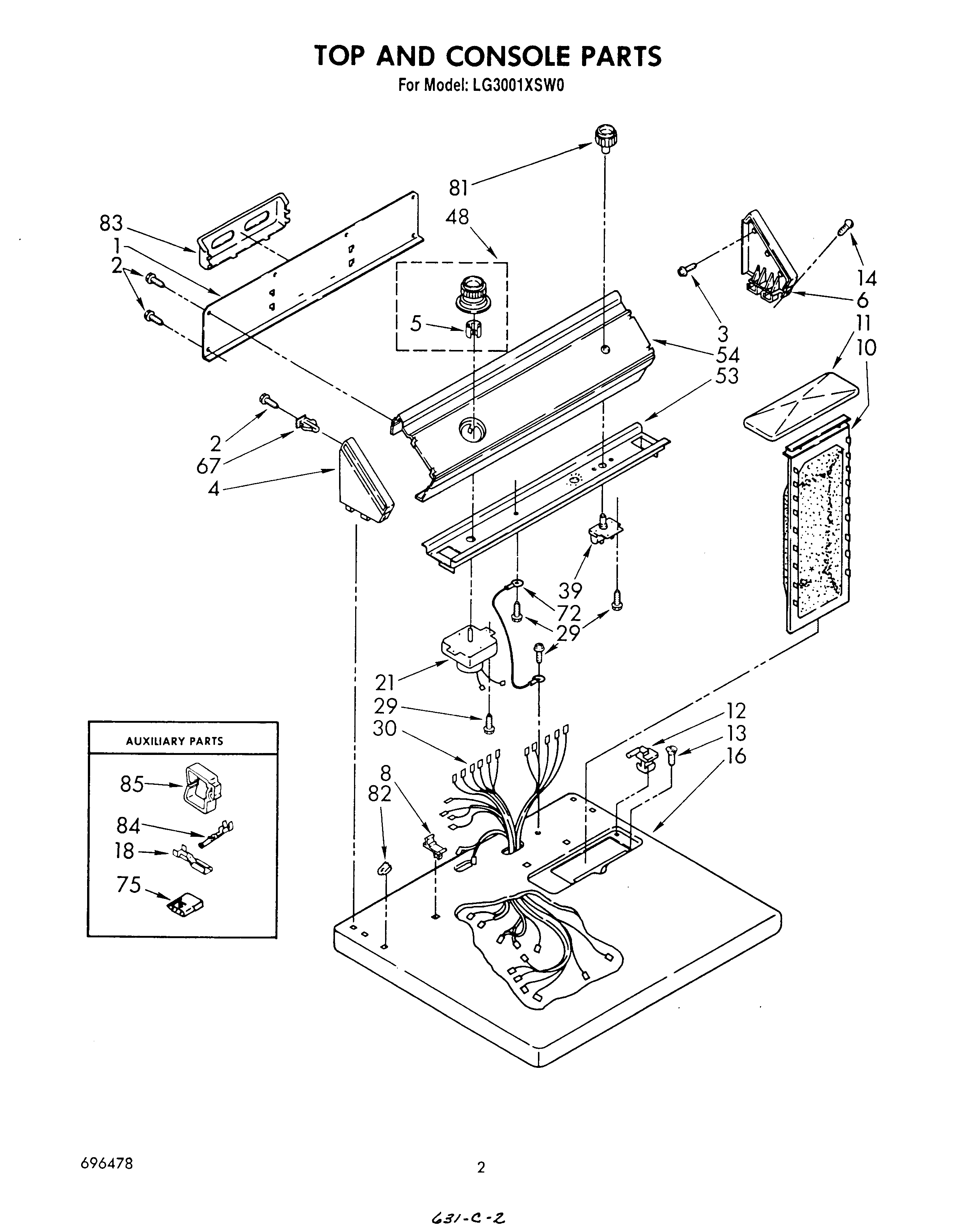

LG3001XSW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	WPL LIT677967
	Washer (Belt Drive)
	Guide, Dryer
	WPL LIT696233
	Leveler (Thinner)
	Guide, Use & Care
	List, Service Parts
	350938 Whirlpool Spray Gun
	WPL LIT677971
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	Dryer
1	Panel, Rear
2	WP489069 Whirlpool Compactor Screw
3	WPL 355326
4	Cap, End (L.H.)
5	WP688805 Whirlpool Spring Clip
6	WPL 63796
8	Stop, Push-In Top
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
16	Top (White)
18	WP94614 Whirlpool Terminal
21	Timer Assembly, 60 Hz.
29	WP3390631 Whirlpool Screw
30	Harness, Wiring
39	(Alt.)
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
48	Timer Knob & Dial
53	Bracket, Control
54	Panel, Control
67	WP689559 Whirlpool Nut
72	Wire, Ground
75	353424 Whirlpool Connector
75	Connector (Door Switch)
81	Knob, Push-To-Start
82	Nut, Push-In (2)
83	Rack, Literature
84	WP596797 Whirlpool Terminal
85	Clip, Harness (Rear Bulkhead Area)
