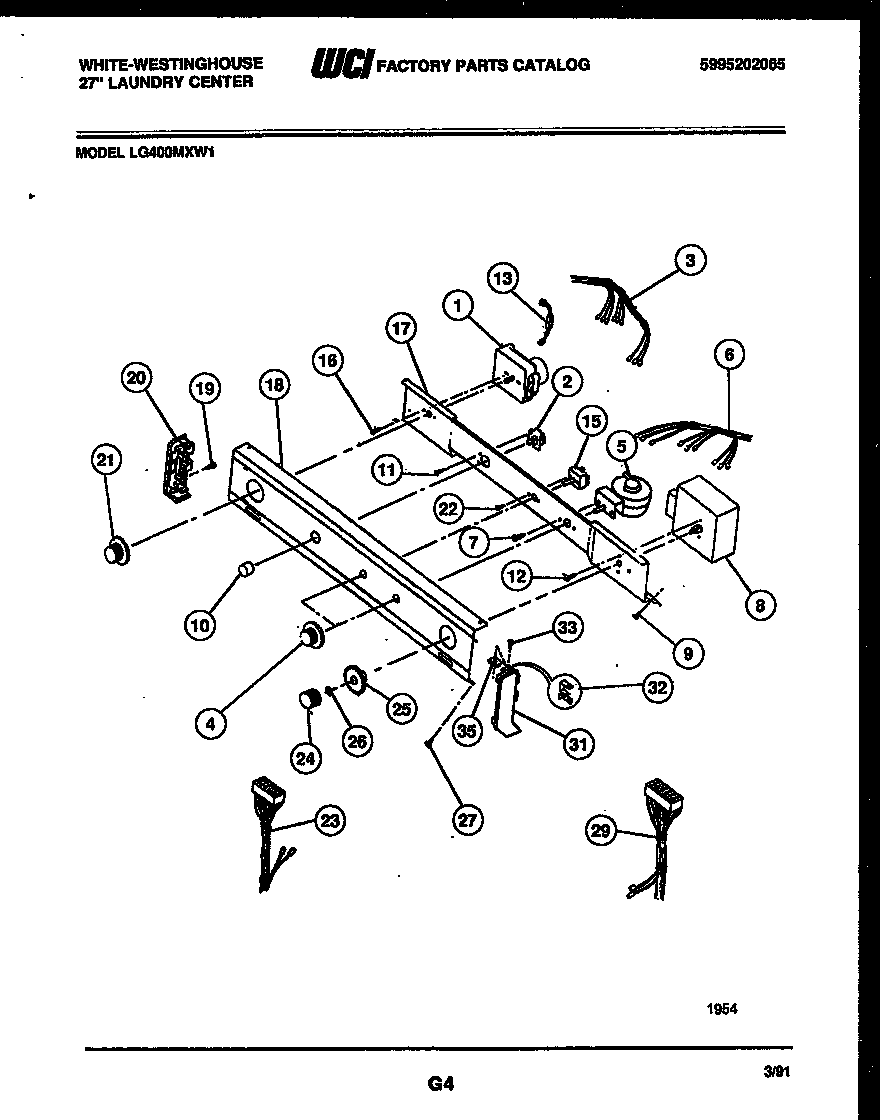

LG400MXD1 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
*43188	SPACER PAD-CONTROL PANEL BRACKET (2)
1	WCI 5303212897
2	WCI 5303209890
3	WCI 5303211052
4	131858004 Frigidaire Control Knob, White
5	WCI 5303937062
6	WCI 5303209895
8	WCI 5303209896
9	131302800 Frigidaire Drum Vane Screw
10	WCI 3205632
11	WCI 08001544
13	RESISTOR, 3.0K
15	SWITCH-WATER TEMP
16	SCREW (2)
17	WCI 3205639
18	WCI 5303270949
19	131168200 Frigidaire Dryer Screw
20	WCI 5303209671
21	131859104 Frigidaire Dryer Timer Knob
22	WCI 3161259
23	WCI 5303210678
24	WCI 5303210341
25	WCI 5303209901
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 3205645
32	WCI 3204357
33	SCREW (2)
35	CLIP (8)
