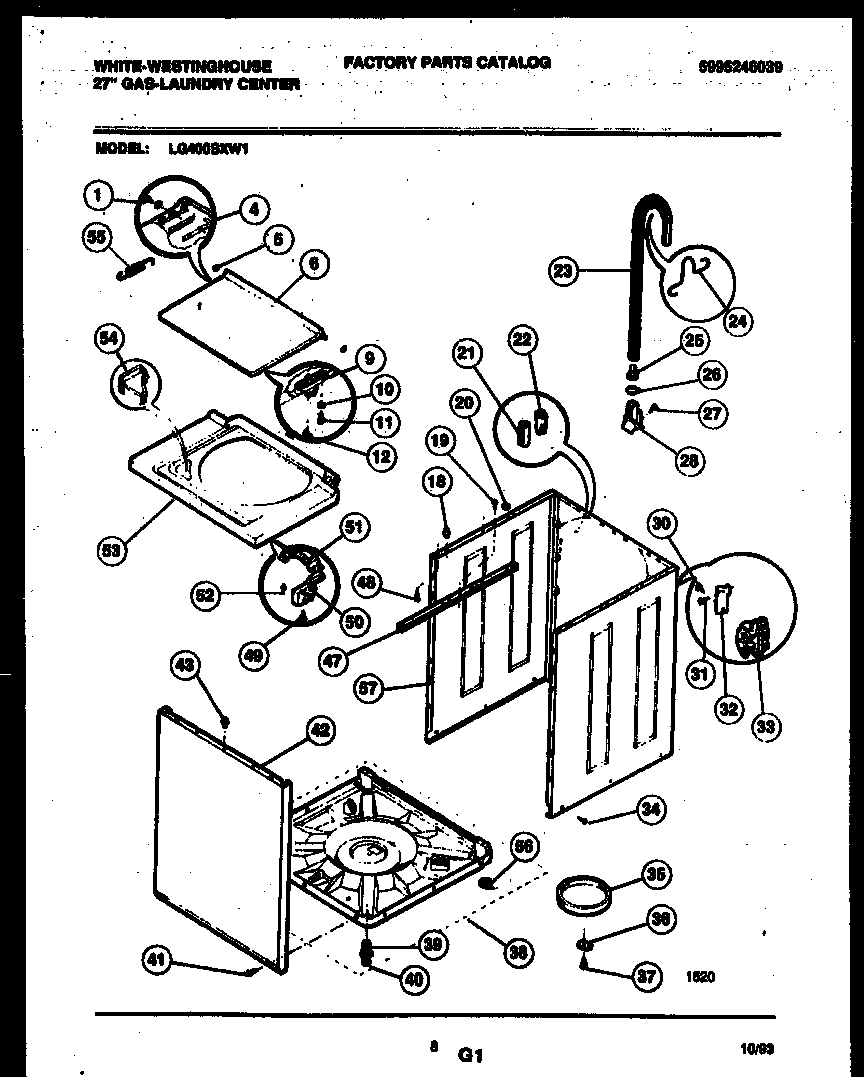

LG400SXD1 05 – CABINET PARTS

Products

Position	Product
1	SCREW
4	5304489657 Frigidaire Bar Hinge Kit
5	5303208743 Frigidaire Grommet
6	WCI 5303212873
9	131390000 Frigidaire Door Catch-Strike
10	WCI 5308002408
11	3204368 Frigidaire Screw-Strike
12	134075500 Frigidaire Bumper-LID
18	PIN - LOCATING
19	WCI 5308057419
20	3204374 Frigidaire Pin
21	WCI 5308014903
22	WCI 5303161252
23	WCI 3205414
24	RETAINER
25	3204375 Frigidaire Check Valve
26	WCI 5364154013
27	131205100 Frigidaire Screw
28	WCI 3204376
30	WCI 5303010202
31	5303015671 Frigidaire Bracket Termination Screw
32	WCI 3204378
33	134190200 Frigidaire Washer Water Valve
34	131205500 Frigidaire Screw
35	SNUBBER RING
36	SHIPPING BLOCK
37	SHIPPING SCREW
38	WCI 5303300247
39	LEVELING LEG & PAD
40	WCI 3204383
41	131302800 Frigidaire Drum Vane Screw
42	WCI 131104305
43	WCI 3204350
47A	MARRIAGE BRACKET-LH
47	MARRIAGE BRACKET-RH
48	SCREW
49	SCREW
50	WCI 3205646
51	WCI 3204391
52	RIVET (3)
53	WCI 5303212875
54	WCI 3204394
55	134890500 Frigidaire Spring
56	WCI 5303201463
57	WCI 131062112
