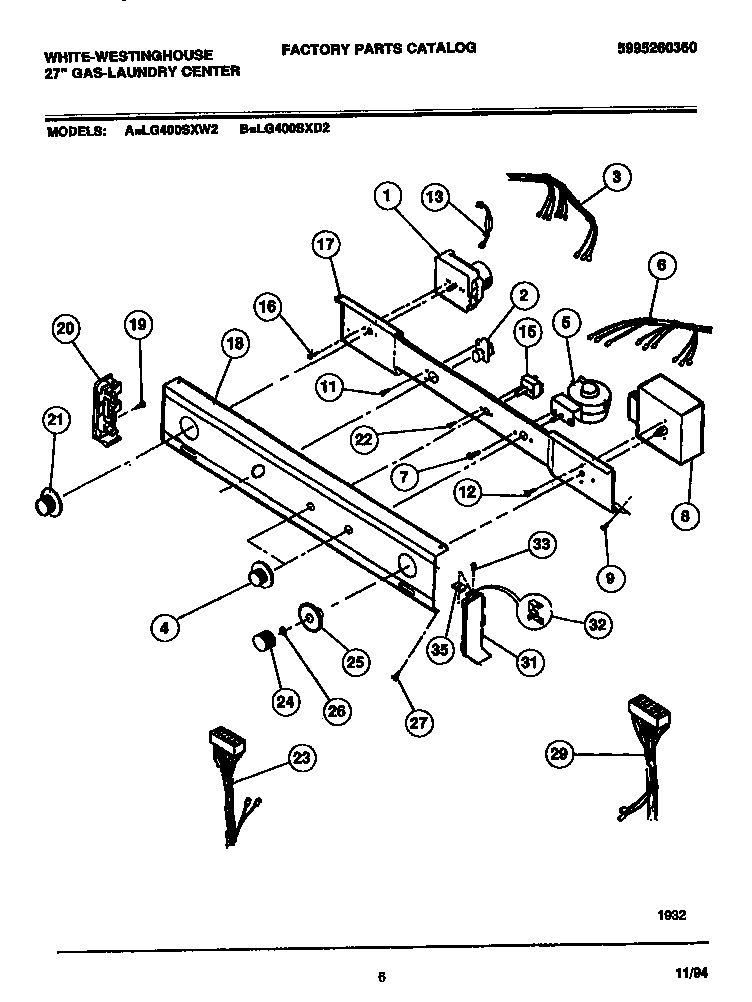

LG400SXD2 04 – CONSOLE & CONTROLS

Products

Position	Product
1	WCI 131062700
2	WCI 5303209890
3	WCI 5303211052
4	131858004 Frigidaire Control Knob, White
5	WCI 5303209894
6	WCI 131081900
8	WCI 5303271776
9	131168200 Frigidaire Dryer Screw
13	RESISTOR, 3.0K
15	SWITCH-TEMPERATURE
16	218359202 Frigidaire Refrigerator Screw
17	BRACKET-CONTROLS
18	WCI 5303270949
19	131243700 Frigidaire Screw
20	WCI 5303209671
21	131859104 Frigidaire Dryer Timer Knob
22	WCI 3161259
23	WCI 131201800
24	WCI 5303210341
25	WCI 5303209901
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131200500
31	WCI 5303210650
32	WCI 3204357
33	134156200 Frigidaire Screw
35	CLIP (8)
