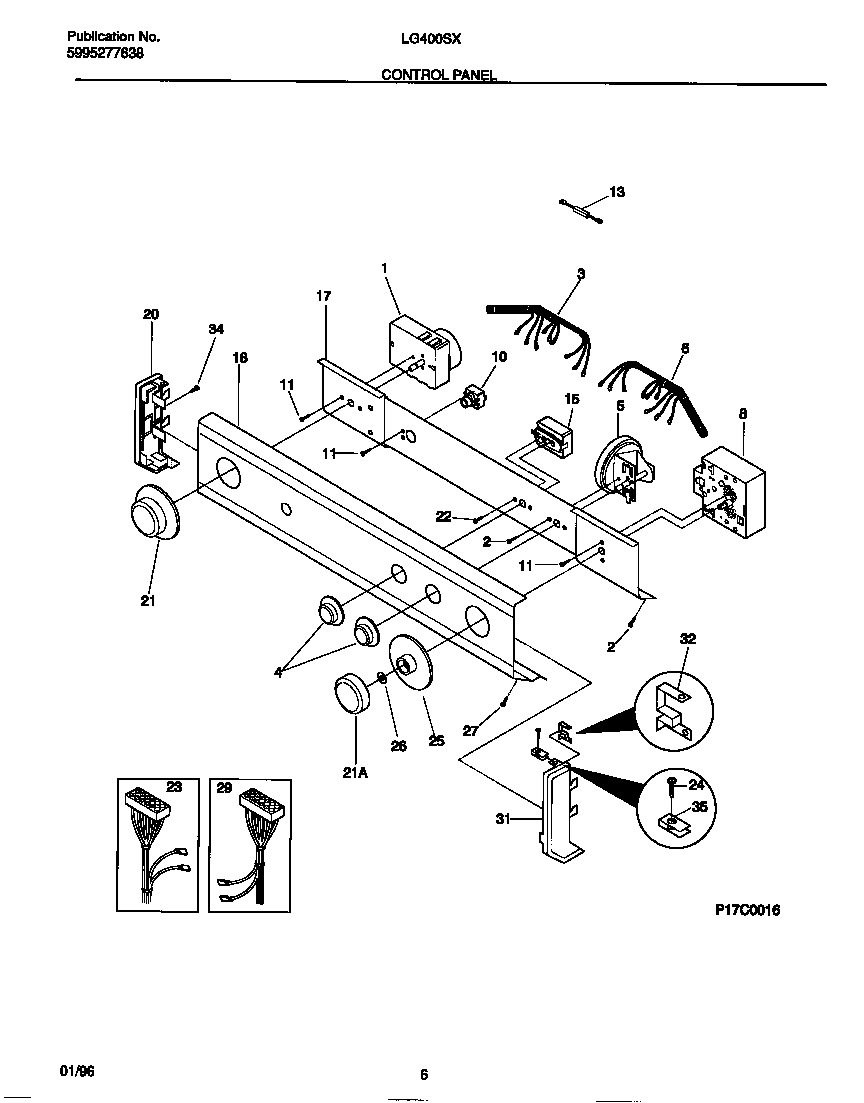

LG400SXW3 04 – CONTROL PANEL

LG400SXW3 04 – CONTROL PANEL

Written by

in

LG400SXW3 04 – CONTROL PANEL

Products

PositionProduct
*67647131209800 Frigidaire Clamp
*676505303303590 Frigidaire Dryer 4.0" Cable Tie
*676485303161300 Frigidaire Strap
*67649SPACER PAD-CONTROL PANEL BRACKET (2)
1WCI 131062400
2131168200 Frigidaire Dryer Screw
3WCI 131343300
4131858004 Frigidaire Control Knob, White
5WCI 5303209894
6HARNESS-WIRING CTRL, WASHER
8WCI 131379600
10WCI 5303209890
11218359202 Frigidaire Refrigerator Screw
13RESISTOR, 3.0K
15SWITCH-TEMPERATURE
17BRACKET-CONTROLS
18WCI 5303270949
20WCI 131288100
21131859104 Frigidaire Dryer Timer Knob
21WCI 5303210341
22WCI 3161259
23WCI 131249700
24134156200 Frigidaire Screw
25WCI 5303209901
26SPACER-TIMER-SHAFT
27SCREW (2)
29WCI 131200500
31WCI 131288210
32WCI 3204357
34131243700 Frigidaire Screw
35CLIP (8)
