LG4931XTF0 04 – TOP AND CONSOLE – Aparts

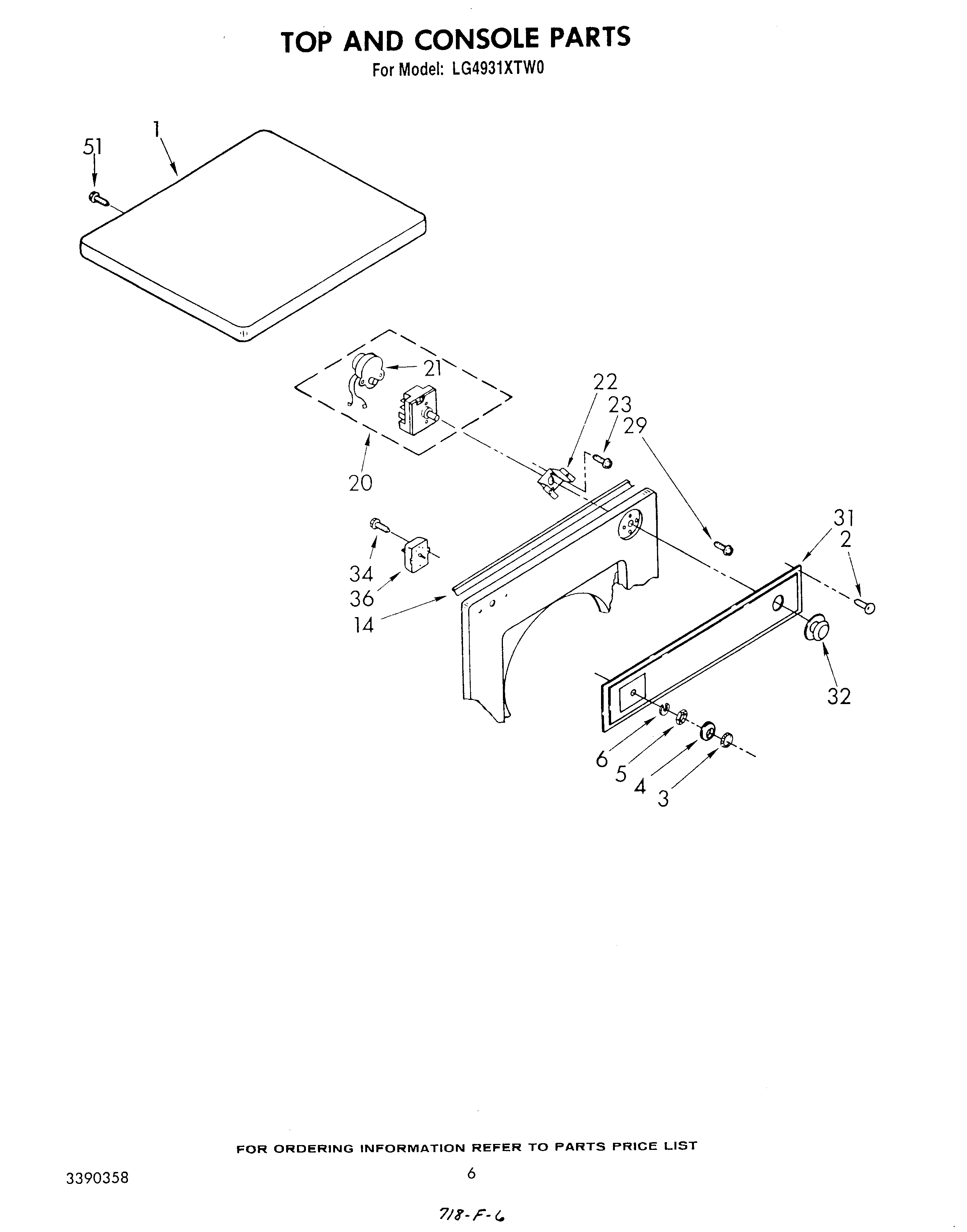

LG4931XTF0 04 – TOP AND CONSOLE

Products

Position	Product
1	Top (Toast)
1	Top (Golden Harvest)
1	Top (Almond)
1	345703 Whirlpool White Maintop
1	Top (Platinum)
2	Rivet, Plastic (4)
3	Nut, Knurled
4	Ring, Trim
5	Nut, Hex
6	Lockwasher
14	Protector Support
20	Timer, 60 Hz.
21	(Timer Motor Not Serviceable)
22	348171 Whirlpool Bracket
23	303776 Whirlpool Dishwasher Screw
29	WP90767 Whirlpool Screw
31	Panel, Control
32	Timer Knob & Skirt Assembly
34	WP3390631 Whirlpool Screw
36	Switch, Push-To-Start
51	SCREW
