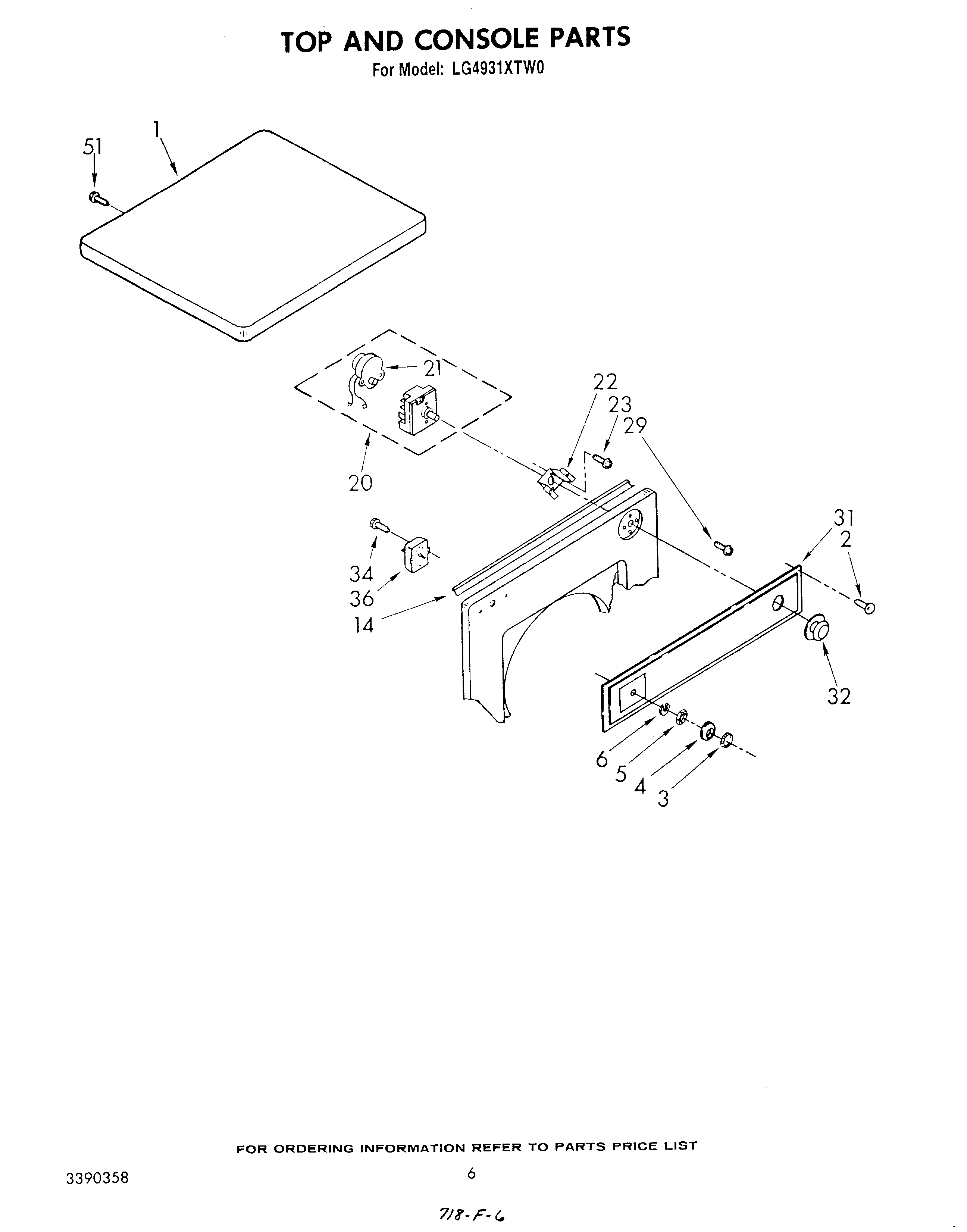

LG4931XTN0 04 – TOP AND CONSOLE

Products

PositionProduct
1Top (Golden Harvest)
1Top (Platinum)
1Top (Almond)
1345703 Whirlpool White Maintop
1Top (Toast)
2Rivet, Plastic (4)
3Nut, Knurled
4Ring, Trim
5Nut, Hex
6Lockwasher
14Protector Support
20Timer, 60 Hz.
21(Timer Motor Not Serviceable)
22348171 Whirlpool Bracket
23303776 Whirlpool Dishwasher Screw
29WP90767 Whirlpool Screw
31Panel, Control
32Timer Knob & Skirt Assembly
34WP3390631 Whirlpool Screw
36Switch, Push-To-Start
51SCREW
