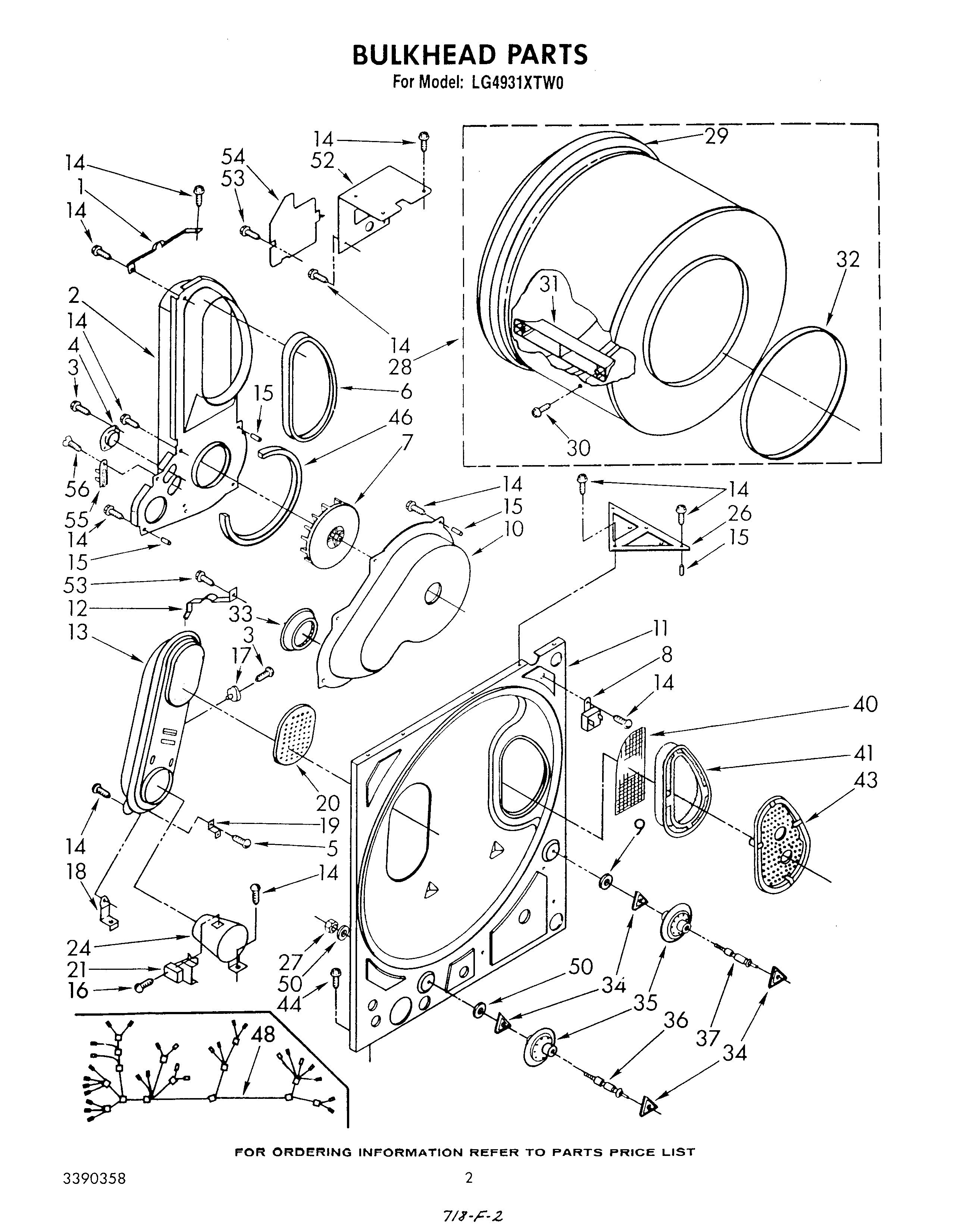

LG4931XTW0 02 – BULKHEAD , LITERATURE AND OPTIONAL

LG4931XTW0 02 – BULKHEAD , LITERATURE AND OPTIONAL

Written by

in

LG4931XTW0 02 – BULKHEAD , LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
72113 Whirlpool Touch-Up Paint
Golden Harvest (Uncut)
Toast
Guide, Dryer
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL LIT3389592
WPL LIT3390213
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
WPL LIT3390358
WPL 72112
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
Golden Harvest
1345396 Whirlpool Clip
2Air Duct Assembly
3WP90767 Whirlpool Screw
4WP694674 Whirlpool Cycling Thermostat
5WP33001882 Whirlpool Screw
6SEAL
7WP696426 Whirlpool Wheel
8WP694419 Whirlpool Buzzer Adjuster
9WP3388703 Whirlpool Washer
10696419 Whirlpool Housing
11Bulkhead
12279771 Whirlpool Clip
13Box, Heater
14SCREW
15W10491983 Whirlpool Tine Tip
16WP3390631 Whirlpool Screw
17Thermostat, 205 F (96 C)
18347455 Whirlpool Support Assembly
19Spacer, Heater Box
20345335 Whirlpool Cover
21WP338906 Whirlpool Dryer Gas Sensor
24279900 Whirlpool Box O/S1
26345325 Whirlpool Gusset
27WP358160 Whirlpool Nut
283391834 Whirlpool Drum
29SEAL
30Screw, 11-16 x 7/8
31685207 Whirlpool Dryer Baffle
32WP3394508 Whirlpool Bearing Ring
33W11233063 Whirlpool Shield Assembly
34WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
35349241T Whirlpool Dryer Drum Support Roller Kit
36SHAFT SUPPORT ROLLER DRYER
37SHAFT SUPPORT ROLLER DRYER
40Screen, Back-Up
41W10828351 Whirlpool Dryer Filter Lint Screen with Cover
46Seal, Fan Scroll
48Harness, Wiring
50WP348197 Whirlpool Washer Assembly
52279304 Whirlpool Block Terminal
53WP693995 Whirlpool Screw
54W11736322 Whirlpool Cover Assembly
55WP3392519 Whirlpool Dryer Thermal Fuse
56WP965173 Whirlpool Dishwasher Screw
