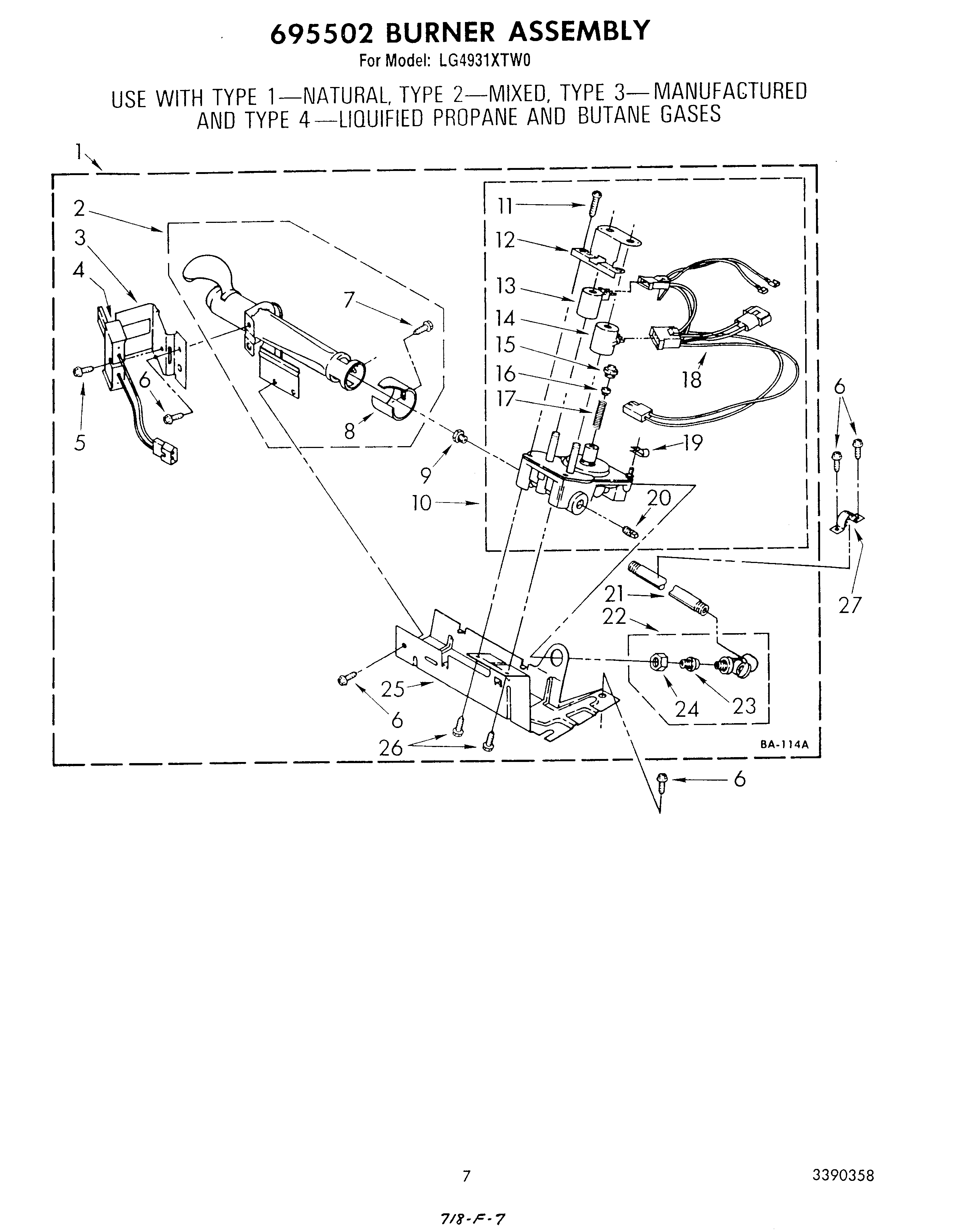

LG4931XTW0 05 – 695502 BURNER

Products

Position	Product
1	Burner, Complete (Refer to Page 7 For Further Burner Breakdown)
2	WP693140 Whirlpool Burner
3	WP694298 Whirlpool Bracket
4	279311 Whirlpool Dryer Flat Igniter with Bracket
5	WPW10366705 Whirlpool Screw
6	SCREW
7	Screw, Tapping
8	Shutter, Air
9	WP347743 Whirlpool Gas Orifice
9	WP347744 Whirlpool Gas Orifice
9	ORIFICE, BURNER TYPE 1
9	Orifice, Burner (Type 2)
9	WP234822 Whirlpool Gas Orifice
10	279923 Whirlpool Gas Valve
11	694421 Whirlpool Screw Assembly
12	694538 Whirlpool Bracket
14	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
15	WP694424 Whirlpool Limiter
16	WP694423 Whirlpool Regulator
17	WP694422 Whirlpool Spring
18	WP3401850 Whirlpool Wire Harness
19	WPL 694510
20	W10295523 Whirlpool Plug
21	Pipe, Gas Supply
22	Valve & Union, Shut-Off
23	3393767 Whirlpool Pipe
24	Nut, Compression
25	Base, Burner
26	WP90767 Whirlpool Screw
27	W10402145 Whirlpool LP Gas Connection
27	341029 Whirlpool Clamp
