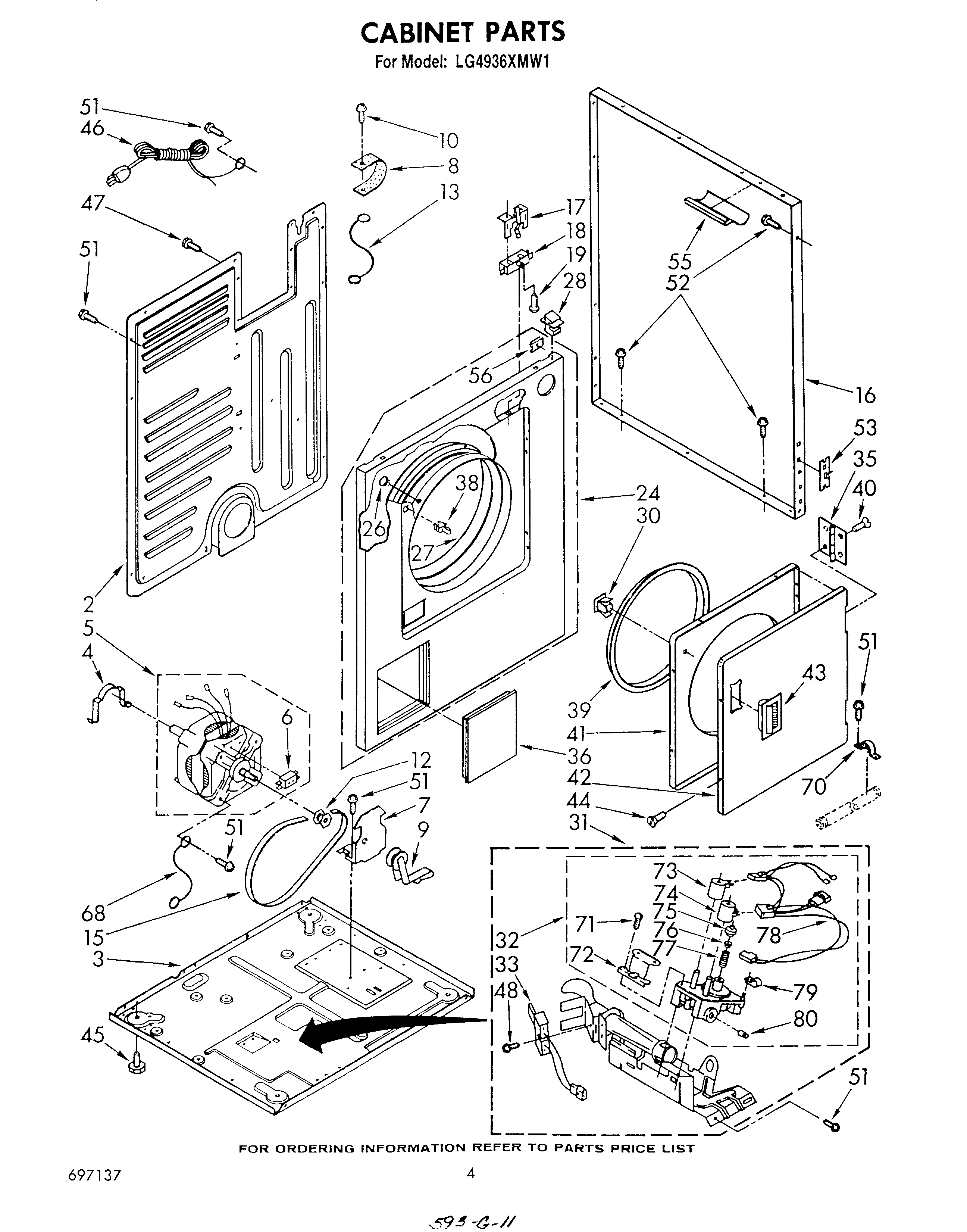

LG4936XMW1 03 – CABINET

LG4936XMW1 03 – CABINET

Written by

in

LG4936XMW1 03 – CABINET

Products

Position	Product
2	Panel, Rear
3	WP348726 Whirlpool Base Assembly
4	WP660658 Whirlpool Clamp
6	279827 Whirlpool Dryer Drive Motor
7	696541 Whirlpool Base
8	Strap, Ground
9	WP691366 Whirlpool Dryer Idler Pulley Assembly
10	Screw, Ground (10-24 x 1)
12	W10837625 Whirlpool Dryer Motor Pulley
13	WPL 364089
15	3394652 Whirlpool Drum Belt
16	Panel, Side (Golden Harvest)
16	Panel, Side (2) (Toast)
16	Panel, Side (2) (Platinum)
16	Panel, Side (2) (Almond)
16	Panel, Side (2) (White)
17	WP691581 Whirlpool Actuator
18	W10820036 Whirlpool Door Switch Kit
19	WP98129 Whirlpool Screw
24	Front Panel (White)
24	Front Panel (Platinum (When Ordering Any Of The Above Panels, Key No. 31, Page 6, Must Also Be Order
24	Front Panel (Toast)
24	Front Panel (Golden Harvest)
24	Front Panel (Almond)
26	279220 Whirlpool Clip
27	279264 Whirlpool Bearing and Seal Kit
28	WP345670 Whirlpool Lock
30	279570 Whirlpool Dryer Door Latch Kit
31	Burner, Complete (Refer to Page 7 For Further Burner Breakdown)
32	279923 Whirlpool Gas Valve
33	279311 Whirlpool Dryer Flat Igniter with Bracket
35	WP348023 Whirlpool Hinge
36	Door, Access (White)
36	Door, Access (Almond)
36	Door, Access (Golden Harvest)
36	Door, Access (Toast)
36	Door, Access (Platinum)
39	W11613302 Whirlpool Door Seal
41	280077 Whirlpool Door
42	Door, Front (Toast)
42	Door, Front (Platinum)
42	WPL 689319
42	Door, Front (Almond)
42	WP348205 Whirlpool Door
43	Handle, Door (Platinum)
43	Handle, Door (Golden Harvest)
43	WP686711 Whirlpool Door Handle
43	Handle, Door (Almond)
44	WP694091 Whirlpool Screw
45	WP233550 Whirlpool Leveling Feet
46	W11222083 Whirlpool Power Cord
48	WPW10366705 Whirlpool Screw
51	SCREW
52	WP489069 Whirlpool Compactor Screw
53	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
55	WPL 686767
56	WP98234 Whirlpool Nut
68	Wire, Ground
70	341029 Whirlpool Clamp
71	694421 Whirlpool Screw Assembly
72	694538 Whirlpool Bracket
74	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
75	WP694424 Whirlpool Limiter
76	WP694423 Whirlpool Regulator
77	WP694422 Whirlpool Spring
78	WP3401850 Whirlpool Wire Harness
79	WPL 694510
80	W10295523 Whirlpool Plug
