LG5201XTW1 02 – TOP AND CONSOLE, LIT/OPTIONAL

LG5201XTW1 02 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

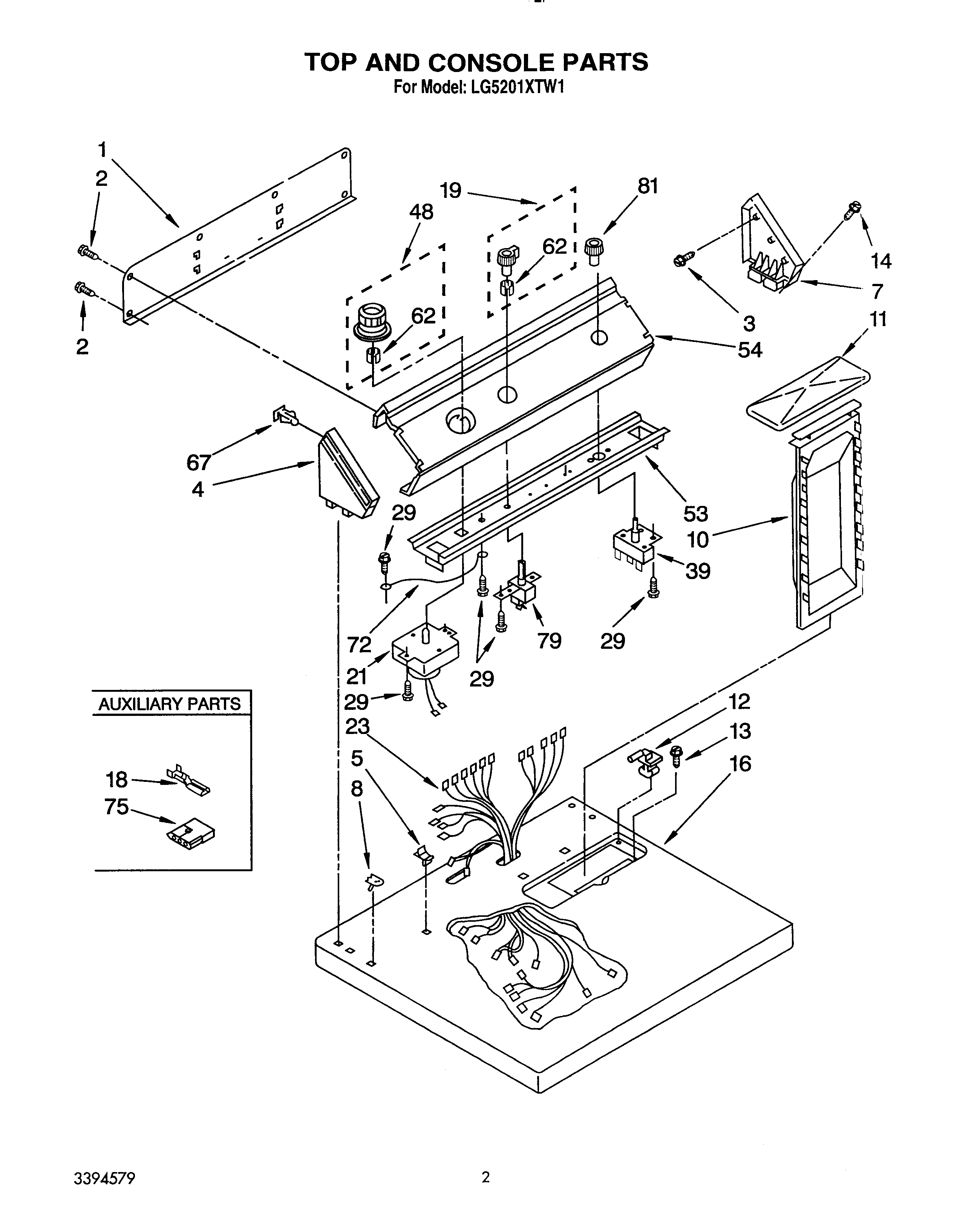

LG5201XTW1 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Washer (Belt Drive)
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
Dryer
Guide, Dryer
List, Service Parts
Almond (Uncut)
Leveler (Thinner)
Use & Care Guide
WP72107 Whirlpool Touchup
WPL LIT677971
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
WPL LIT677967
Instructions, Installation
1Panel, Rear
2WP489069 Whirlpool Compactor Screw
3WPL 355326
4Cap, End (L.H.)
5Stop, Push-In Top
7WPL 63796
8Nut, Push-In (2)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WPL 64211
16Top (Almond)
16Top (White)
18WP94614 Whirlpool Terminal
19Control Knob, Temperature
21Timer Assembly, 60 Hz.
23Harness, Wiring
29WP3390631 Whirlpool Screw
39(Alt.)
39Switch, Push-To-Start
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
79Switch, Temperature Selector
81Knob, Push-To-Start
