LG5531XKW1 02 – SECTION

LG5531XKW1 02 – SECTION

Written by

in

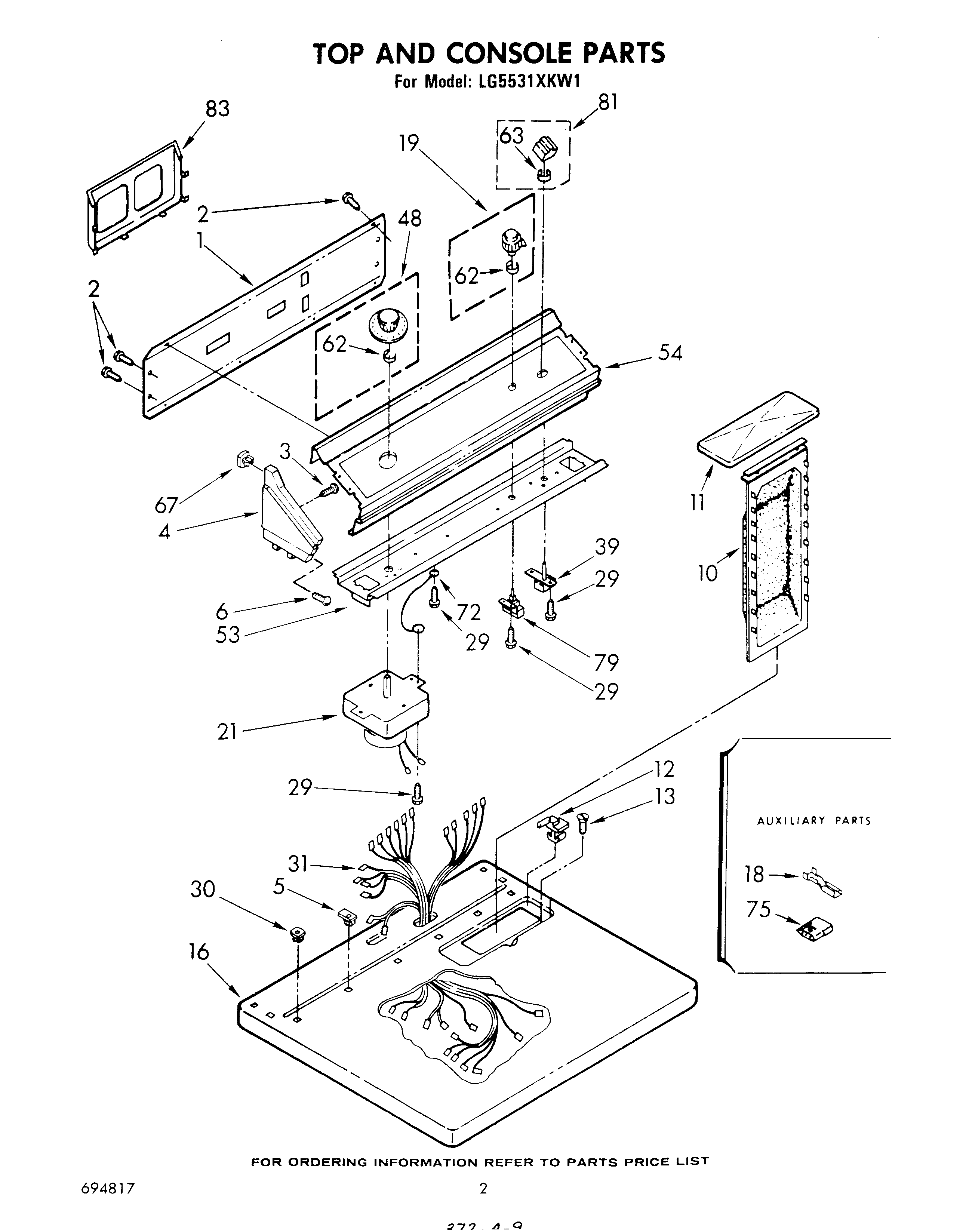

LG5531XKW1 02 – SECTION

Products

PositionProduct
Almond (Uncut)
799344 Whirlpool Refrigerator Paint
Enamel, Coffee (1 Qt. Uncut)
Enamel, New Avocado (1 Qt. Uncut)
Golden Harvest (Uncut)
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
3WPL 355326
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End L.H. (Golden Harvest)
4Cap, End (L.H.) (Almond)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End L.H. (White)
4Cap, End (L.H.) (White)
5Stop, Push-In Top
6Screw, 8-18 x 1 (2)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Almond)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (Golden Harvest)
16top (white)
16Top (Almond)
18WP94614 Whirlpool Terminal
18WP596797 Whirlpool Terminal
19Control Knob Assembly
21Timer, 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Switch, Push-To-Start
39Switch, Push-To-Start (Alternate)
39(Alt.)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
63Clip
67WP689559 Whirlpool Nut
72Wire, Ground
75Connector (Door Switch)
75353424 Whirlpool Connector
79Switch, Temperature Selector
81Button Assembly
8372017 Whirlpool Appliance Touch-Up Paint White
83350956 Whirlpool Spray Assembly
83350938 Whirlpool Spray Gun
83WPL 694344
83WPL 691276
83WPL 694817
83WPL 693849
83WP72107 Whirlpool Touchup
83Paint, Spray 13 Oz. (Avocado)
83paint, spray 13 oz. (coffee)
83Paint, Touch-Up 1/2 Oz. (Coffee)
8372109 Whirlpool Dacor Avocado Touch-Up Paint
83Golden Harvest
8372110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
83350930 Whirlpool White Spray Paint
83Rack, Literature
83Leveler (Thinner)
83WPL 799351
