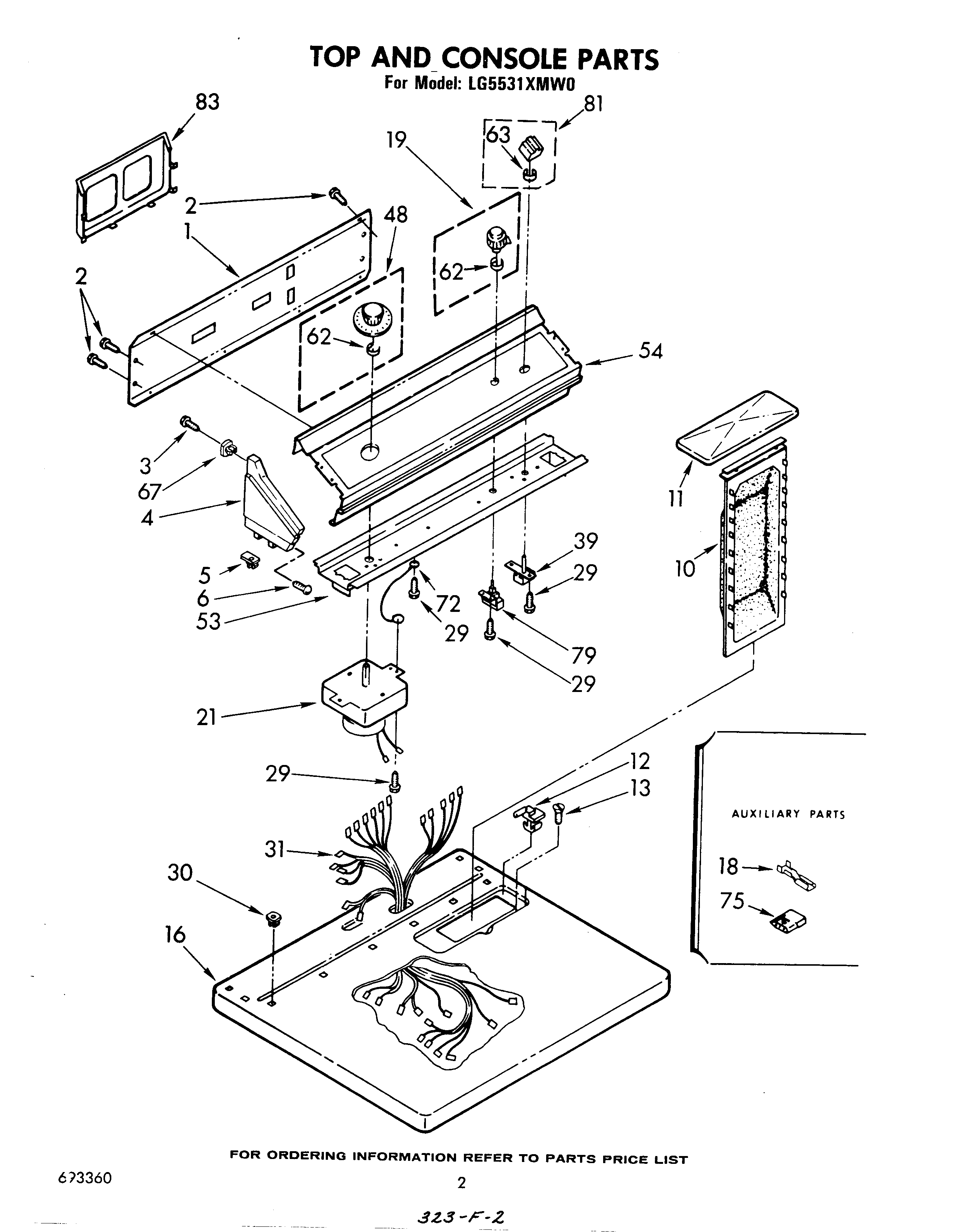

LG5531XMW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG5531XMW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG5531XMW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
Golden Harvest (Uncut)
Enamel, New Avocado (1 Qt. Uncut)
Enamel, Coffee (1 Qt. Uncut)
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End L.H. (White)
4Cap, End L.H. (Golden Harvest)
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End L.H. (Almond Cap, End R.H.)
5Stop, Push-In Top
6Screw, 8-18 x 1 (2)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Golden Harvest)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (Almond)
16Top (Golden Harvest)
16top (white)
18WP596797 Whirlpool Terminal
18WP94614 Whirlpool Terminal
19Control Knob Assembly
21Timer, 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Switch, Push-To-Start (Alternate)
39Switch, Push-To-Start
39(Alt.)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
63Clip
67WP689559 Whirlpool Nut
72Wire, Ground
75Connector (Door Switch)
75353424 Whirlpool Connector
79Switch, Rotary
81Button Assembly
83WPL 799351
83Instructions,
8372109 Whirlpool Dacor Avocado Touch-Up Paint
83350956 Whirlpool Spray Assembly
83350938 Whirlpool Spray Gun
83Rack, Literature
83WPL 691276
8372017 Whirlpool Appliance Touch-Up Paint White
83WPL 693849
83Golden Harvest
8372110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
83350930 Whirlpool White Spray Paint
83Paint, Touch-Up 1/2 Oz. (Coffee)
83paint, spray 13 oz. (coffee)
83Paint, Spray 13 Oz. (Avocado)
83Leveler (Thinner)
83WP72107 Whirlpool Touchup
83WPL 693360
