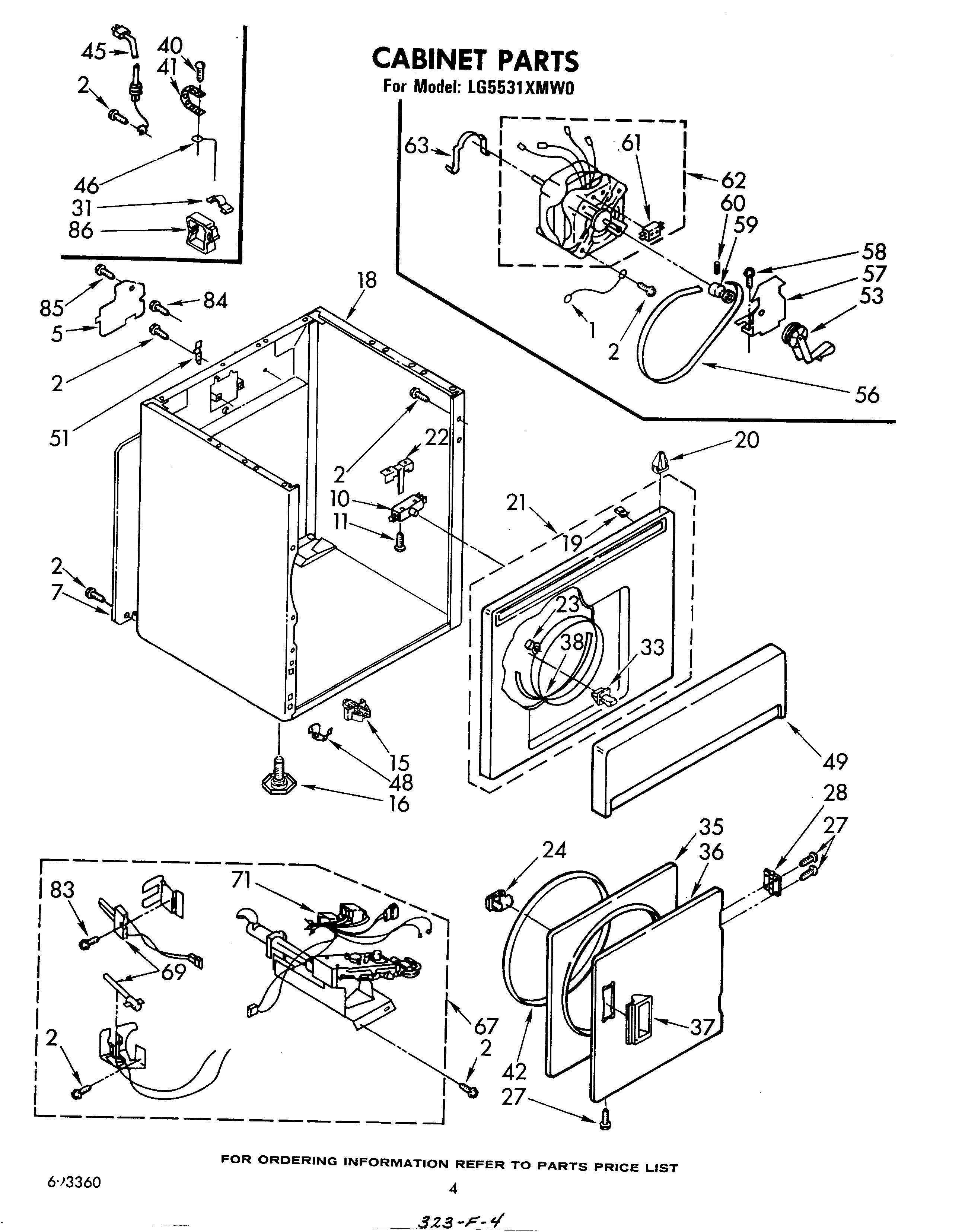

LG5531XMW0 03 – CABINET

Products

PositionProduct
1Wire, Ground (Motor)
2SCREW
5W11736322 Whirlpool Cover Assembly
7Panel, Rear
10W10820036 Whirlpool Door Switch Kit
11WP98129 Whirlpool Screw
15Clip, Toe Panel
1649621 Whirlpool Leveling Feet
18Cabinet (Almond)
18Cabinet (White)
18Cabinet (Golden Harvest)
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Upper Front Panel Assembly (Golden Harvest)
21Upper Front Panel Assembly (Almond)
21Front Panel Assembly (White)
22WP691581 Whirlpool Actuator
23279220 Whirlpool Clip
27WP694091 Whirlpool Screw
28WP348023 Whirlpool Hinge
318528351 Whirlpool Clip
33279570 Whirlpool Dryer Door Latch Kit
35280077 Whirlpool Door
36Door, Front (Almond)
36WP348205 Whirlpool Door
36WPL 689319
37Handle, Door (Almond)
37Handle, Door (Golden Harvest)
37WP686711 Whirlpool Door Handle
38279264 Whirlpool Bearing and Seal Kit
40Screw, Ground (10-24 x 1)
41Strap, Ground
42W11613302 Whirlpool Door Seal
45W11222083 Whirlpool Power Cord
46WPL 364089
48WP297092 Whirlpool Clip
49Panel, Toe (Golden Harvest)
49Panel, Toe (Almond)
49Panel, Toe (White)
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59W11233559 Whirlpool Motor Pulley
60SCREW, SET
61279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
67WPL 688637
67WPL 688639
67Kit, Conversion Type 1 To Type 3 (MFD)
67W10402145 Whirlpool LP Gas Connection
69279311 Whirlpool Dryer Flat Igniter with Bracket
71BURNER-GAS
83WPW10366705 Whirlpool Screw
86Clip, Harness (Rear Bulkhead Area)
