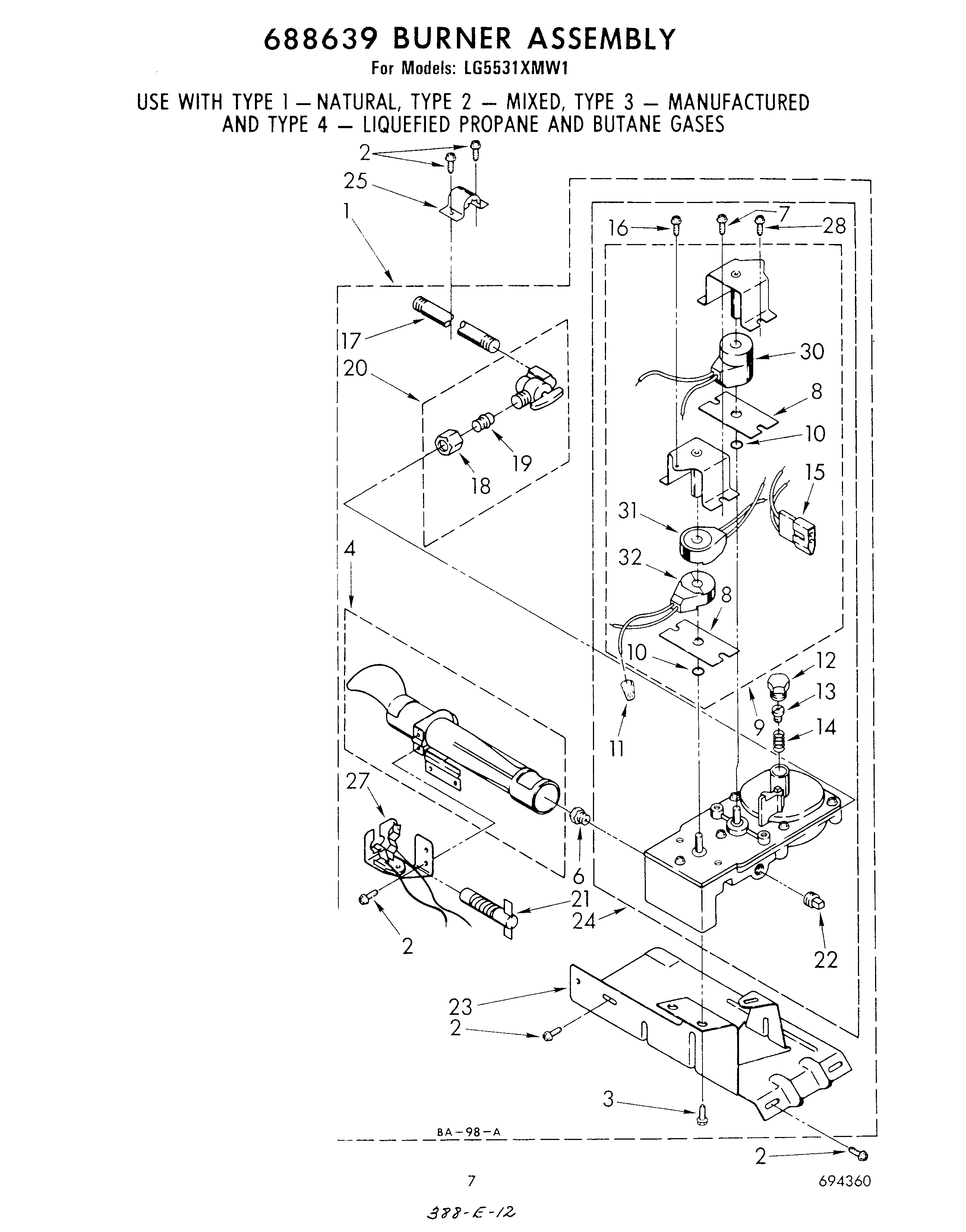

LG5531XMW1 05 – 688639 BURNER

LG5531XMW1 05 – 688639 BURNER

Written by

in

LG5531XMW1 05 – 688639 BURNER

Products

PositionProduct
1WPL 688639
2SCREW
3WP90767 Whirlpool Screw
4WP693140 Whirlpool Burner
6WP234868 Whirlpool Gas Orifice
6WP234826 Whirlpool Gas Orifice
6WP229742 Whirlpool Gas Orifice
6Orifice, Burner (Type 2)
6Orifice, Burner (Type 3)
7WP489128 Whirlpool Refrigerator Screw
8Plate (2)
9BURNER-GAS
10Ring, “O“ (2)
11Connector, Wire (3)
12Screw, Leak Limiter
13Screw, Regulator Adjustment
14Spring, Regulator
15353424 Whirlpool Connector
16Screw, 6-20 x 5/16
17Pipe, Gas Supply
18Nut, Compression
193393767 Whirlpool Pipe
20Valve & Union, Shut-Off
21279311 Whirlpool Dryer Flat Igniter with Bracket
22W10295523 Whirlpool Plug
23Baseplate
24Valve Assembly, 60 Hz.
25341029 Whirlpool Clamp
28Screw, 8-32 x 5/8 (2)
30Coil Assembly (Main)
31Coil Assembly (Hold)
32W10402145 Whirlpool LP Gas Connection
32Kit, Conversion Type 1 To Type 3 (MFD)
32Coil Assembly (Assist)
