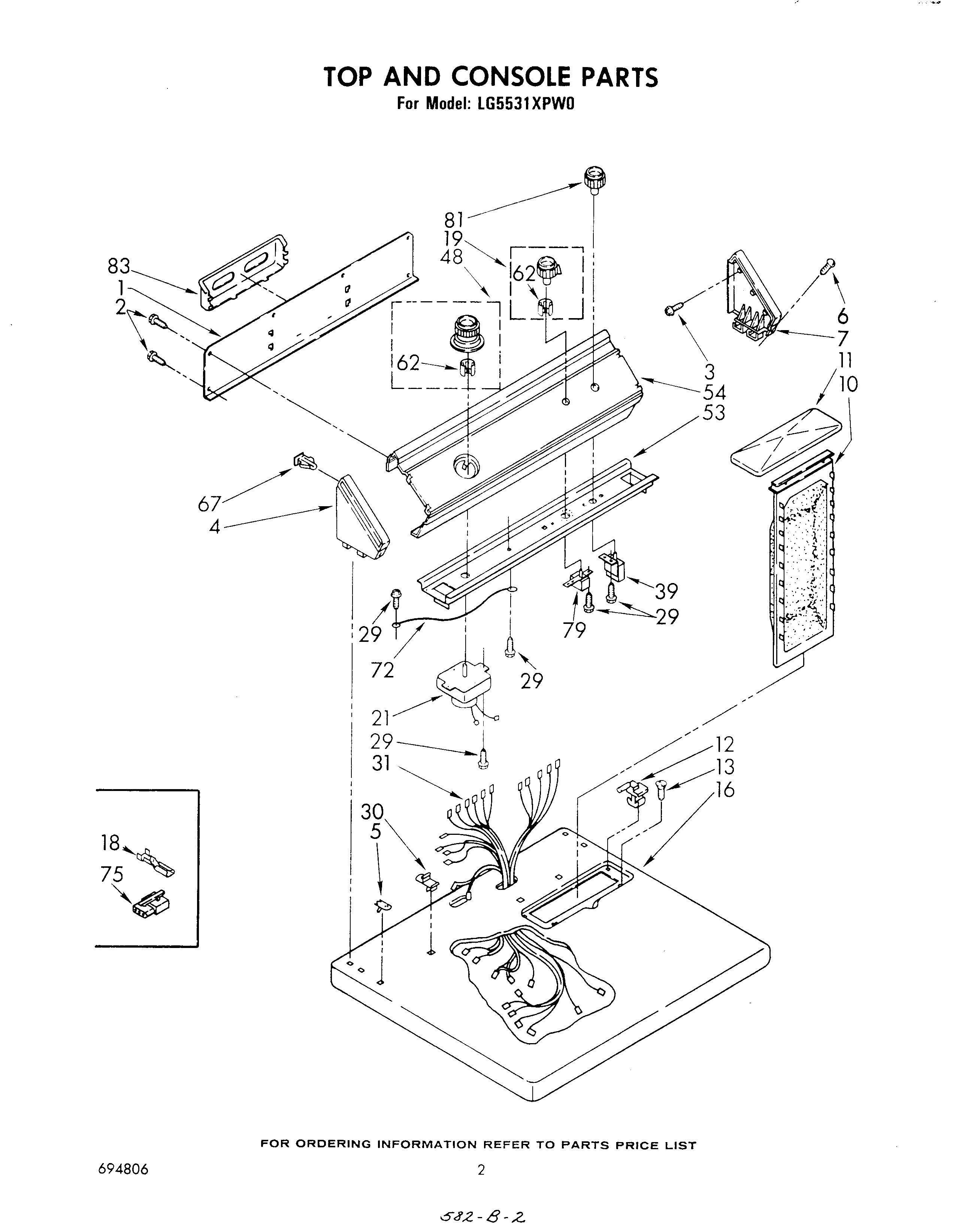

LG5531XPW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG5531XPW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG5531XPW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT693692
WPL 72112
Platinum (Uncut)
Enamal, Toast (1 Qt. Uncut)
Paint, Spray (13 Oz.) (Platinum)
Toast
Golden Harvest (Uncut)
Golden Harvest
72113 Whirlpool Touch-Up Paint
WPL LIT677971
paint, spray 13 oz. (coffee)
Paint, Spray 13 Oz. (Avocado)
WPL LIT696233
Guide, Dryer
Washer (Belt Drive)
WPL LIT694806
WPL LIT677967
Enamel, New Avocado (1 Qt. Uncut)
Enamel, Coffee (1 Qt. Uncut)
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Leveler (Thinner)
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
350930 Whirlpool White Spray Paint
WP72107 Whirlpool Touchup
Dryer
350956 Whirlpool Spray Assembly
1Panel, Rear
2WP489069 Whirlpool Compactor Screw
3WPL 355326
4Cap, End (L.H.)
5Nut, Push-In (2)
6WPL 64211
7WPL 63795
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (Almond)
16Top (Toast)
16Top (Platinum)
16Top (White)
16Top (Golden Harvest)
18WP94614 Whirlpool Terminal
18WP596797 Whirlpool Terminal
19Knob, Water Level
21Timer, 60 Hz.
29WP3390631 Whirlpool Screw
30Stop, Push-In Top
31Harness, Wiring
39Switch, Push-To-Start (Alternate)
39(Alt.)
39Switch, Push-To-Start
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
75Connector (Door Switch)
75353424 Whirlpool Connector
79Switch, Temperature Selector
81Knob, Push To Start
83Rack, Literature
