LG5536XPW0 03 – CABINET

LG5536XPW0 03 – CABINET

Written by

in

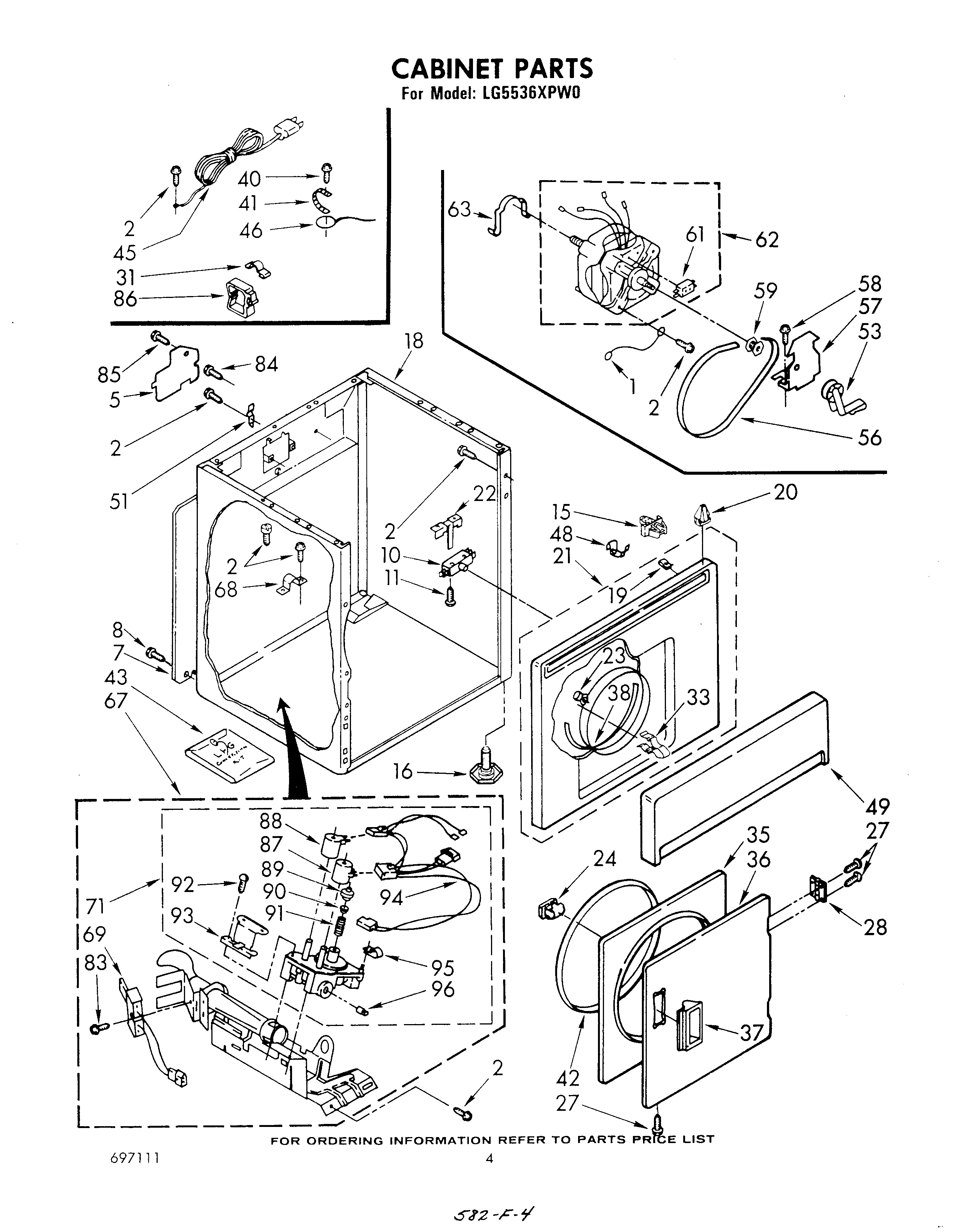

LG5536XPW0 03 – CABINET

Products

Position	Product
1	Wire, Ground (Motor)
2	SCREW
5	W11736322 Whirlpool Cover Assembly
7	Panel, Rear
8	WP489069 Whirlpool Compactor Screw
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
15	Clip, Toe Panel (2)
16	49621 Whirlpool Leveling Feet
18	Cabinet (Platinum)
18	Cabinet (Toast)
18	Cabinet (Golden Harvest)
18	Cabinet (Almond)
18	Cabinet (White)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Upper Front Panel Assembly (Toast)
21	Upper Front Panel Assembly (Golden Harvest)
21	Upper Front Panel Assembly (Almond)
21	Front Panel Assembly (White)
21	Upper Front Panel Assembly (Platinum)
22	WP691581 Whirlpool Actuator
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
27	WP694091 Whirlpool Screw
28	WP348023 Whirlpool Hinge
31	8528351 Whirlpool Clip
35	280077 Whirlpool Door
36	WP348205 Whirlpool Door
36	WPL 689319
36	Door, Front (Almond)
36	Door, Front (Toast)
36	Door, Front (Platinum)
37	Handle, Door (Almond)
37	Handle, Door (Platinum)
37	WP686711 Whirlpool Door Handle
37	Handle, Door (Golden Harvest)
38	279264 Whirlpool Bearing and Seal Kit
40	Screw, Ground (10-24 x 1)
41	Strap, Ground
42	W11613302 Whirlpool Door Seal
43	Kit, Conversion Type 1 To Type 3 (MFD)
43	49572A Whirlpool Dryer Propane Gas Conversion Kit
45	W11222083 Whirlpool Power Cord
46	WPL 364089
48	WP297092 Whirlpool Clip
49	WPL 694999
49	Panel, Toe (Golden Harvest)
49	Panel, Toe (Almond)
49	Panel, Toe (White)
49	WPL 695000
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
61	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
67	Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
68	341029 Whirlpool Clamp
69	279311 Whirlpool Dryer Flat Igniter with Bracket
71	279923 Whirlpool Gas Valve
83	WPW10366705 Whirlpool Screw
85	WP693995 Whirlpool Screw
86	Clip, Harness (Rear Bulkhead Area)
87	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
89	WP694424 Whirlpool Limiter
90	WP694423 Whirlpool Regulator
91	WP694422 Whirlpool Spring
92	694421 Whirlpool Screw Assembly
93	694538 Whirlpool Bracket
94	WP3401850 Whirlpool Wire Harness
95	WPL 694510
96	W10295523 Whirlpool Plug
