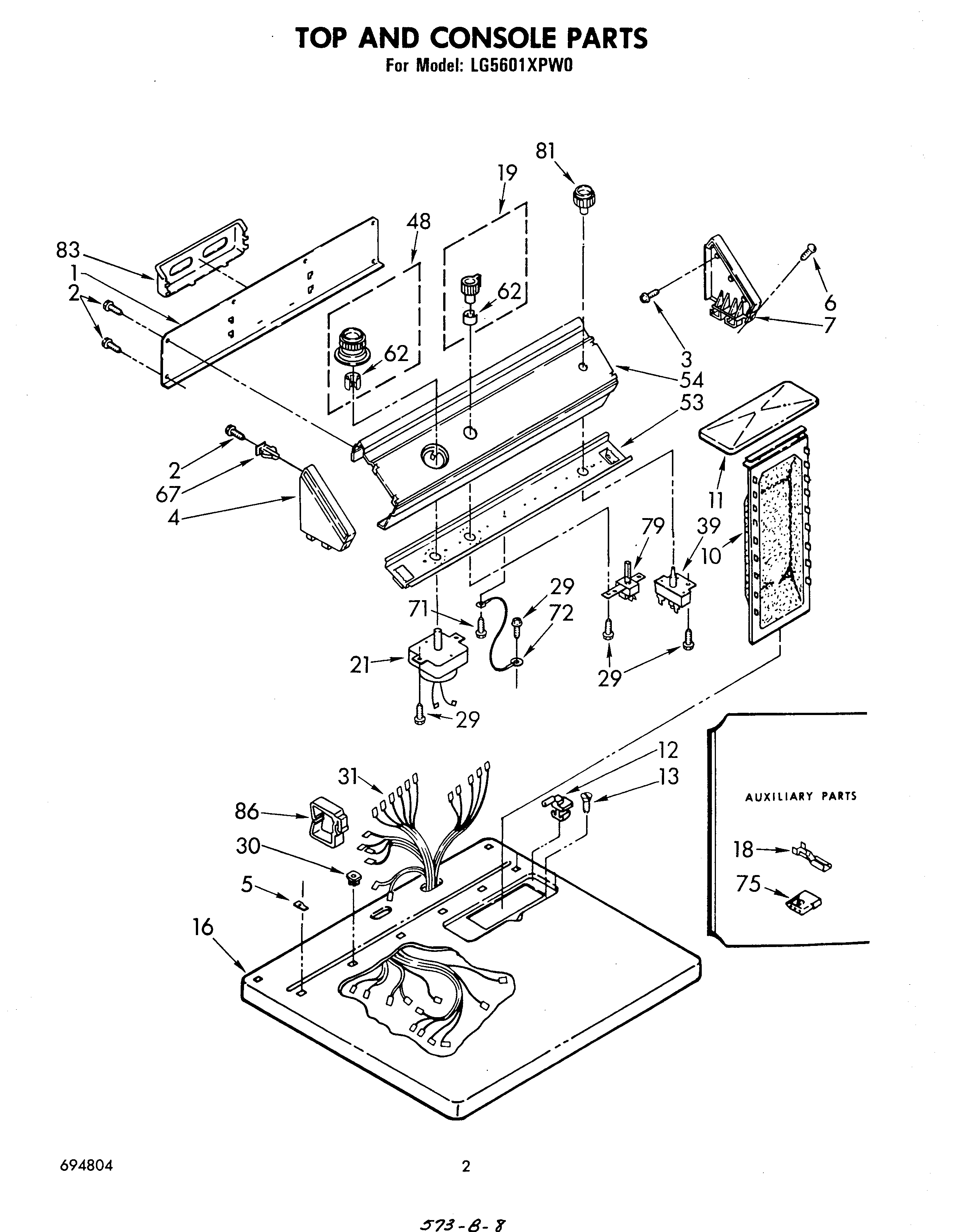

LG5601XPW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG5601XPW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG5601XPW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL 72112
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL LIT694804
Guide, Dryer
72017 Whirlpool Appliance Touch-Up Paint White
WP72107 Whirlpool Touchup
350956 Whirlpool Spray Assembly
WPL LIT696233
799344 Whirlpool Refrigerator Paint
WPL LIT693691
Leveler (Thinner)
Almond (Uncut)
350938 Whirlpool Spray Gun
1Panel, Rear
2WP489069 Whirlpool Compactor Screw
3WPL 355326
4Cap, End (L.H.)
5Stop, Push-In Top
6WPL 64211
7WPL 63795
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (White)
16Top (Almond)
16Top (Golden Harvest)
16Top (Toast)
16Top (Platinum)
18WP94614 Whirlpool Terminal
18WP596797 Whirlpool Terminal
19Knob, Water Level
21Timer, 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39(Alt.)
39Switch, Push-To-Start
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
71SCREW
72Wire, Ground
75353424 Whirlpool Connector
75Connector (Door Switch)
76Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
76Dryer
76WPL LIT677967
79Switch, Temperature Selector
81Knob, Push To Start
83Rack, Literature
86Clip, Harness (Rear Bulkhead Area)
