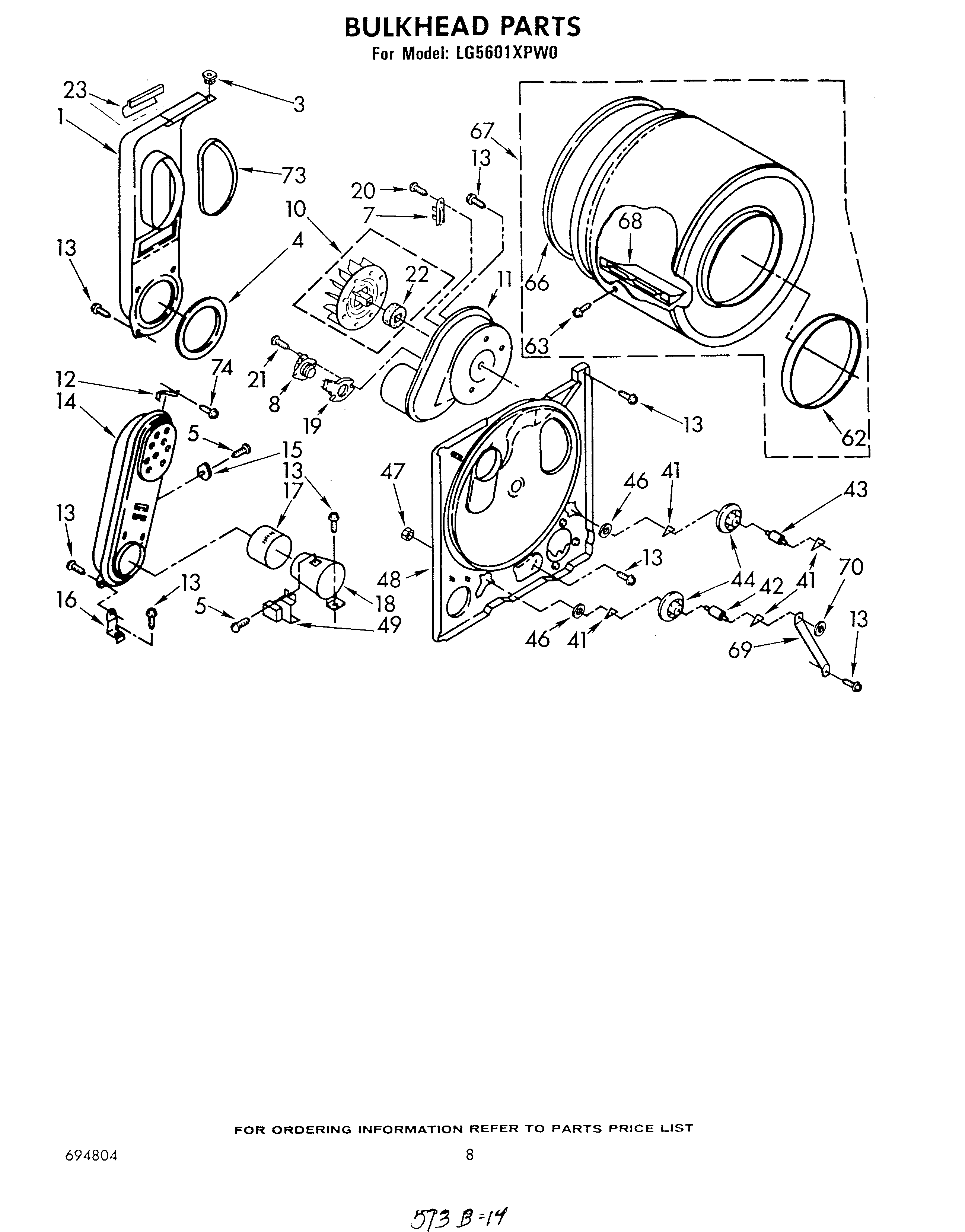

LG5601XPW0 05 – BULKHEAD

Products

Position	Product
1	279505 Whirlpool Chute
3	98460 Whirlpool Nut
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP694674 Whirlpool Cycling Thermostat
10	WP694089 Whirlpool Dryer Blower Wheel
11	Housing, Blower
12	279771 Whirlpool Clip
13	SCREW
15	Thermostat, 205 F (96 C)
15	Thermostat SPST (205)
16	Support, Heater Box (2)
17	279900 Whirlpool Box O/S1
19	Thermostat, Heater
20	WP965173 Whirlpool Dishwasher Screw
21	WP488729 Whirlpool Refrigerator Door Screw
22	Seal, Blower
23	686770 Whirlpool Support Bracket
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP358160 Whirlpool Nut
48	Bulkhead
49	WP338906 Whirlpool Dryer Gas Sensor
62	WP3394508 Whirlpool Bearing Ring
63	Screw, 11-16 x 7/8
66	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67	3396775 Whirlpool Drum Assembly
68	WP342847 Whirlpool Drum Baffle
69	Bracket, Support
70	WP90296 Whirlpool Clip
73	SEAL
