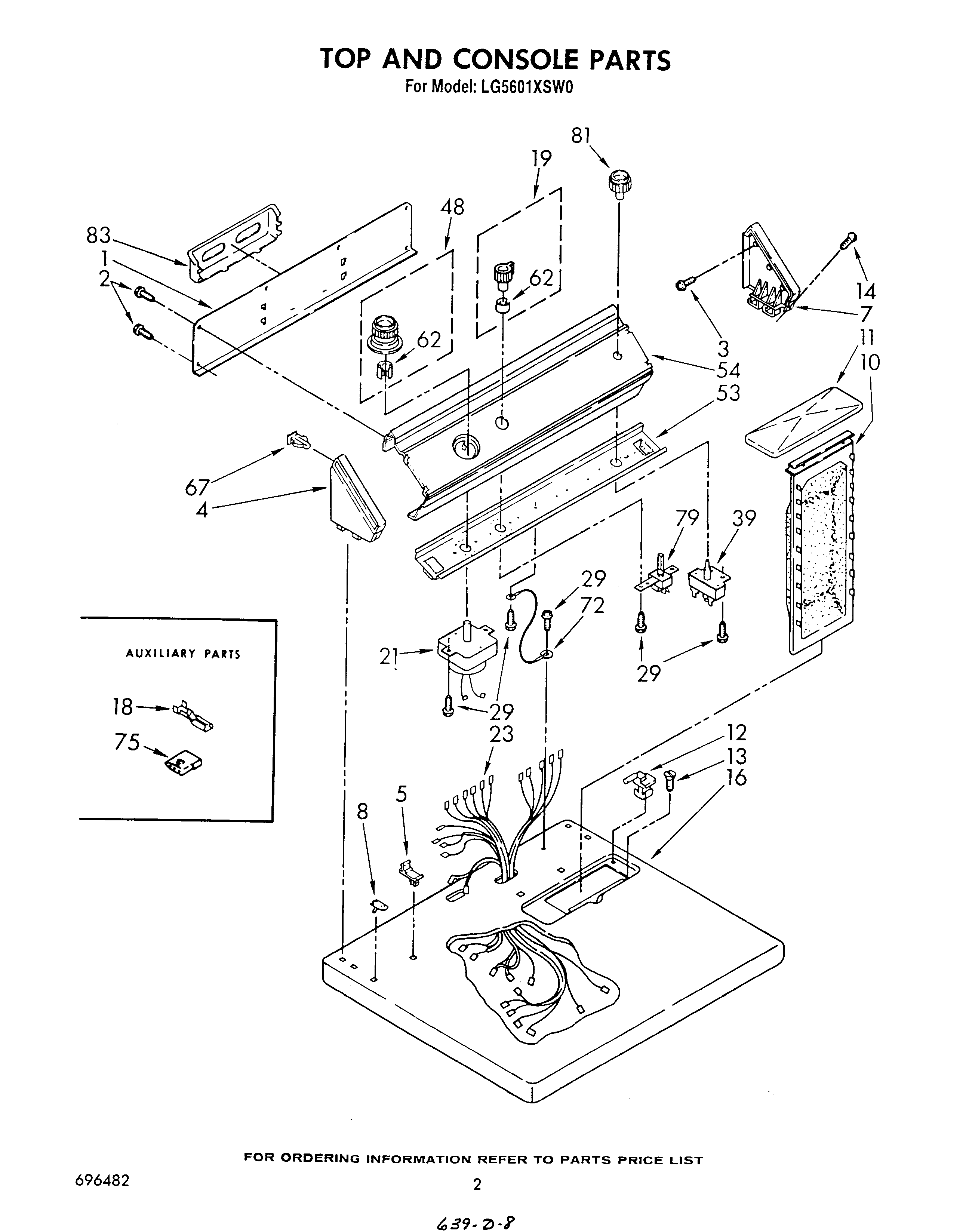

LG5601XSW0 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

LG5601XSW0 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

Written by

in

LG5601XSW0 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
WPL 72112
Platinum (Uncut)
Enamal, Toast (1 Qt. Uncut)
Paint, Spray (13 Oz.) (Platinum)
Toast
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
WPL LIT677967
72113 Whirlpool Touch-Up Paint
WPL LIT677971
Golden Harvest
Dryer
Washer (Belt Drive)
WPL LIT696214
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL LIT696233
WP72107 Whirlpool Touchup
WPL LIT696482
Leveler (Thinner)
Almond (Uncut)
Guide, Dryer
Golden Harvest (Uncut)
1Panel, Rear
2WP489069 Whirlpool Compactor Screw
3WPL 355326
4Cap, End (L.H.)
5Stop, Push-In Top
7WPL 63795
8Nut, Push-In (2)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WPL 64211
16Top (Golden Harvest)
16Top (Almond)
16Top (White)
16Top (Toast)
16Top (Platinum)
18WP94614 Whirlpool Terminal
19Control Knob, Temperature
21Timer, 60 Hz.
23Harness, Wiring
29WP3390631 Whirlpool Screw
39(Alt.)
39Switch, Push-To-Start (Alternate)
39Switch, Push-To-Start
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
79Switch, Temperature Selector
81Knob, Push-To-Start
83Rack, Literature
