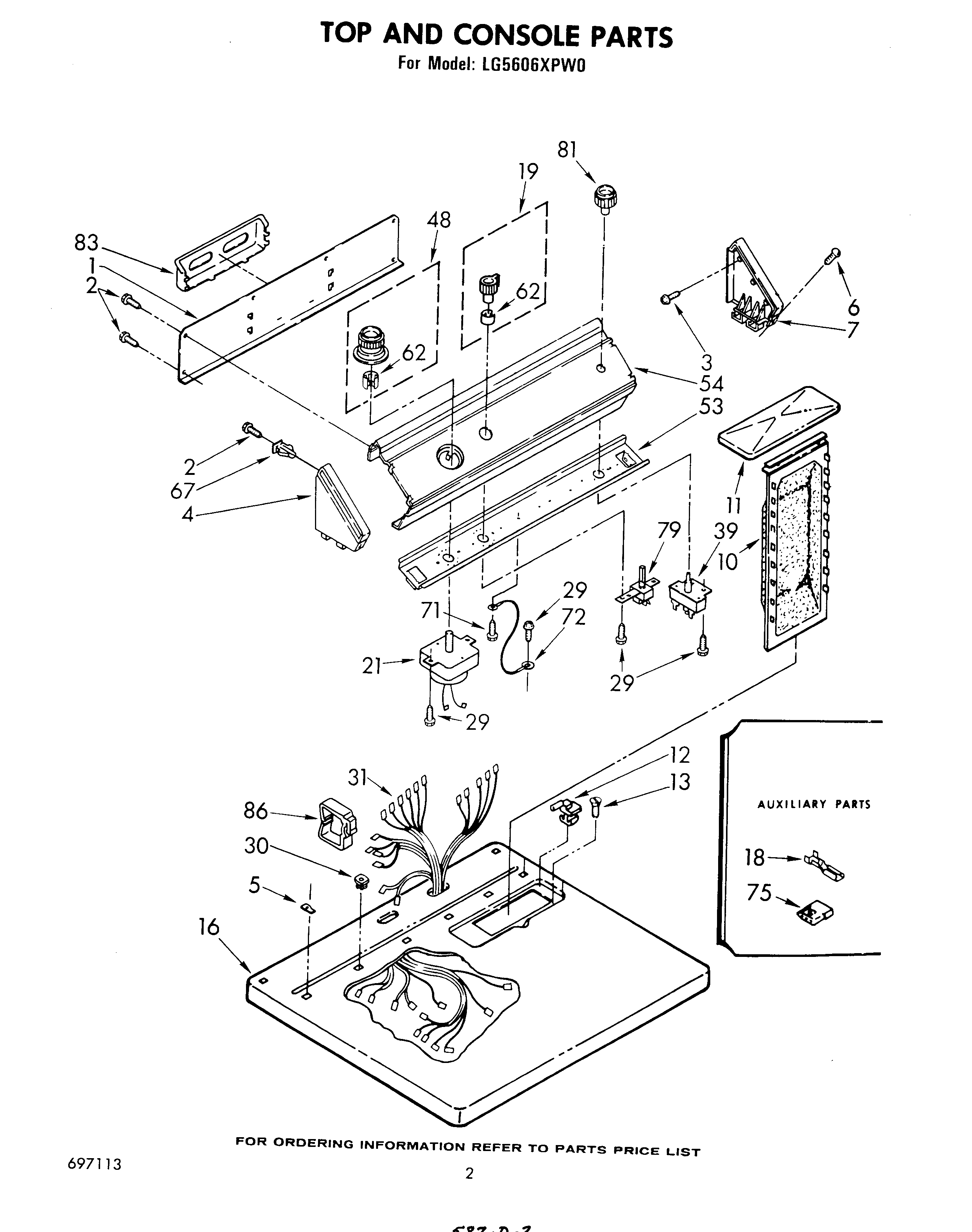

LG5606XPW0 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

LG5606XPW0 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

Written by

in

LG5606XPW0 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT677967
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72113 Whirlpool Touch-Up Paint
Guide, Dryer
Golden Harvest
Golden Harvest (Uncut)
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
Washer (Belt Drive)
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
Toast
Dryer
799344 Whirlpool Refrigerator Paint
WPL LIT697113
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
WPL LIT696759
WP72107 Whirlpool Touchup
WPL LIT677971
Leveler (Thinner)
Almond (Uncut)
WPL LIT696233
350930 Whirlpool White Spray Paint
1Panel, Rear
2WP489069 Whirlpool Compactor Screw
3WPL 355326
4Cap, End (L.H.)
5Stop, Push-In Top
6WPL 64211
7WPL 63795
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (Platinum)
16Top (White)
16Top (Almond)
16Top (Golden Harvest)
16Top (Toast)
18WP596797 Whirlpool Terminal
18WP94614 Whirlpool Terminal
19Knob, Water Level
21Timer, 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39(Alt.)
39Switch, Push-To-Start
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
71SCREW
72Wire, Ground
75Connector (Door Switch)
75353424 Whirlpool Connector
79Switch, Temperature Selector
81Knob, Push To Start
83Rack, Literature
86Clip, Harness (Rear Bulkhead Area)
