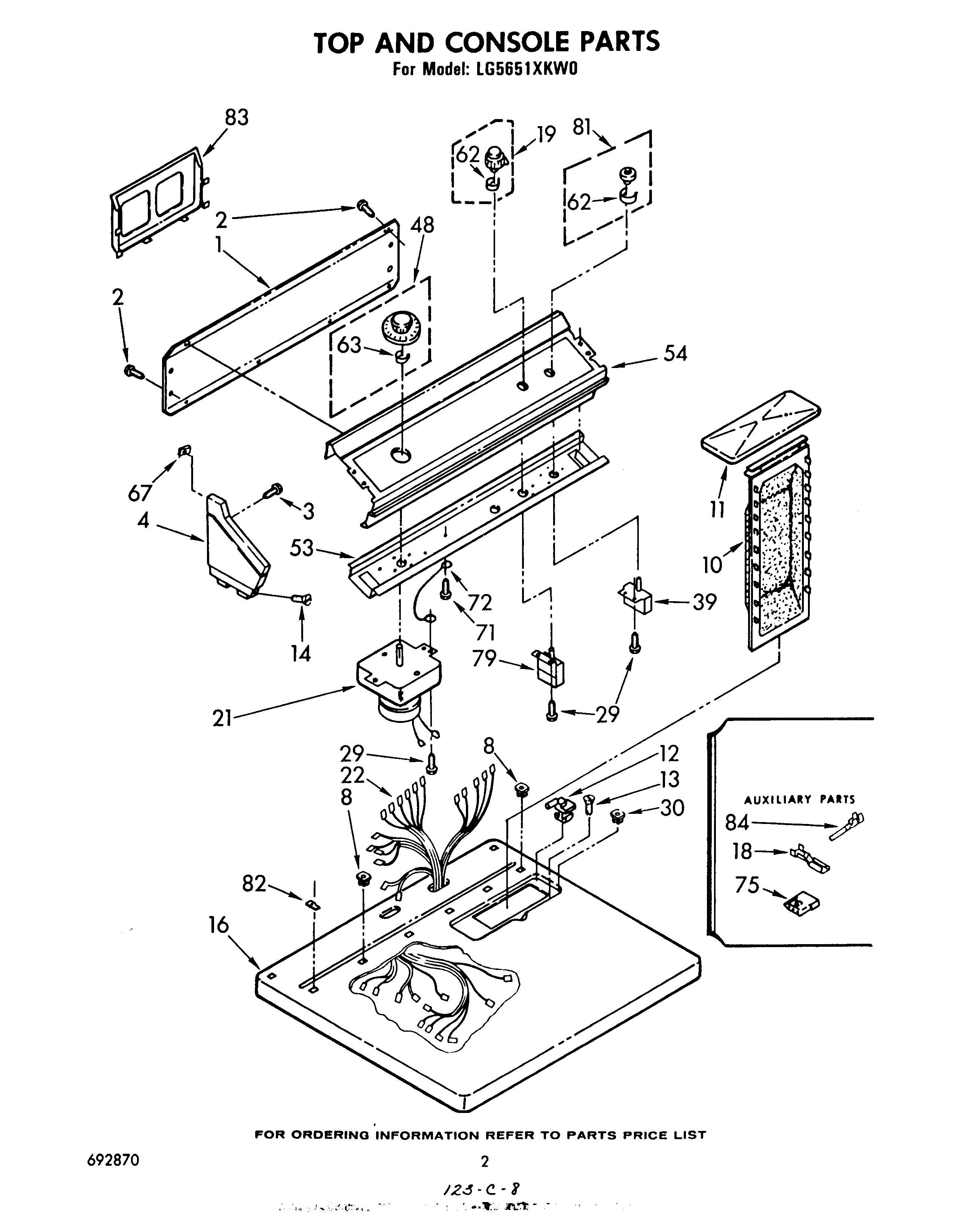

LG5651XKW0 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

Products

PositionProduct
Wire, 25` Roll (Red 12 Ga.)
799344 Whirlpool Refrigerator Paint
1Panel, Rear Console
3WPL 355326
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (White Cap, End (R.H.))
8Nut, Push-In (2)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Screw, 8-18 x 1 (2)
16top (white)
18WP94614 Whirlpool Terminal
19Control Knob Assembly
21Timer, 60 Hz.
22Harness, Wiring
29WP3390631 Whirlpool Screw
3098460 Whirlpool Nut
39(Alt.)
39Switch, Push-To-Start
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
53Bracket, Control
54PANEL, CONTROL
62Clip
63WP688805 Whirlpool Spring Clip
67Clip (4)
71SCREW
72Wire, Ground
75353424 Whirlpool Connector
75Connector (Door Switch)
79Switch, Rotary
81Button Assembly
82Stop, Push-In Top
83Rack, Literature
84List, Service Parts
84WPL 693849
84WPL 694344
84Use & Care Guide
84WPL 799351
84350930 Whirlpool White Spray Paint
84WP596797 Whirlpool Terminal
84Leveler (Thinner)
8472017 Whirlpool Appliance Touch-Up Paint White
84350938 Whirlpool Spray Gun
