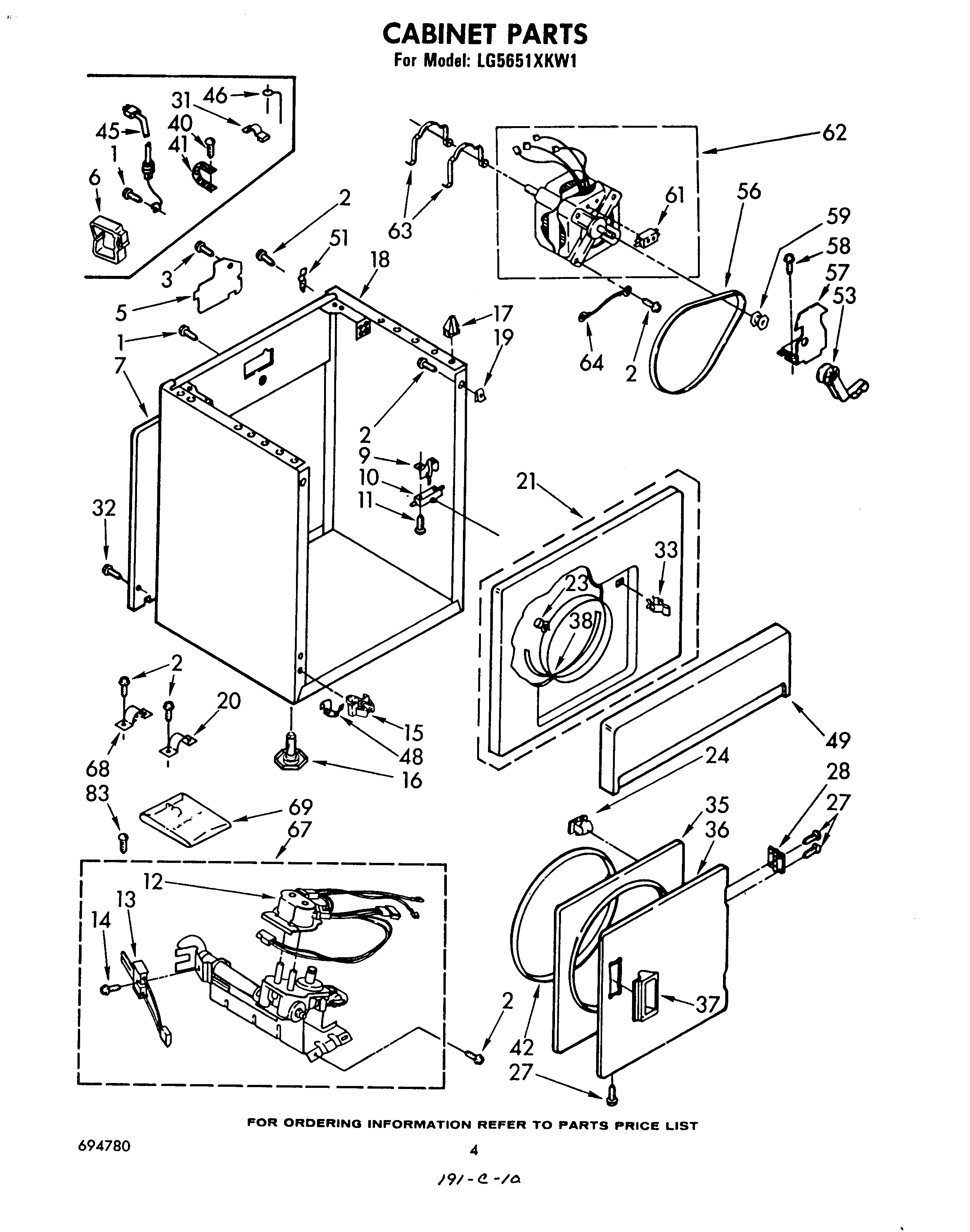

LG5651XKW1 03 – CABINET

Products

Position	Product
2	SCREW
5	W11736322 Whirlpool Cover Assembly
6	Clip, Harness (Rear Bulkhead Area)
7	Panel, Rear
9	WP691581 Whirlpool Actuator
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
12	279923 Whirlpool Gas Valve
13	279311 Whirlpool Dryer Flat Igniter with Bracket
14	WPW10366705 Whirlpool Screw
15	Clip, Toe Panel
16	49621 Whirlpool Leveling Feet
17	WP18776 Whirlpool Lock
18	Cabinet (White)
19	WP98234 Whirlpool Nut
20	Clamp, Pipe (Front)
21	Front Panel Assembly (White)
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
27	WP694091 Whirlpool Screw
28	WP348023 Whirlpool Hinge
31	8528351 Whirlpool Clip
32	WP489069 Whirlpool Compactor Screw
36	280077 Whirlpool Door
37	WP686711 Whirlpool Door Handle
38	279264 Whirlpool Bearing and Seal Kit
40	Screw, Ground (10-24 x 1)
41	Strap, Ground
42	W11613302 Whirlpool Door Seal
45	W11222083 Whirlpool Power Cord
46	WPL 364089
48	WP297092 Whirlpool Clip
49	Panel, Toe (White)
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
61	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
64	Wire, Ground (Motor)
67	Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
68	341029 Whirlpool Clamp
69	Kit, Conversion Type 1 To Type 3 (MFD)
69	49572A Whirlpool Dryer Propane Gas Conversion Kit
83	WPL 343826
