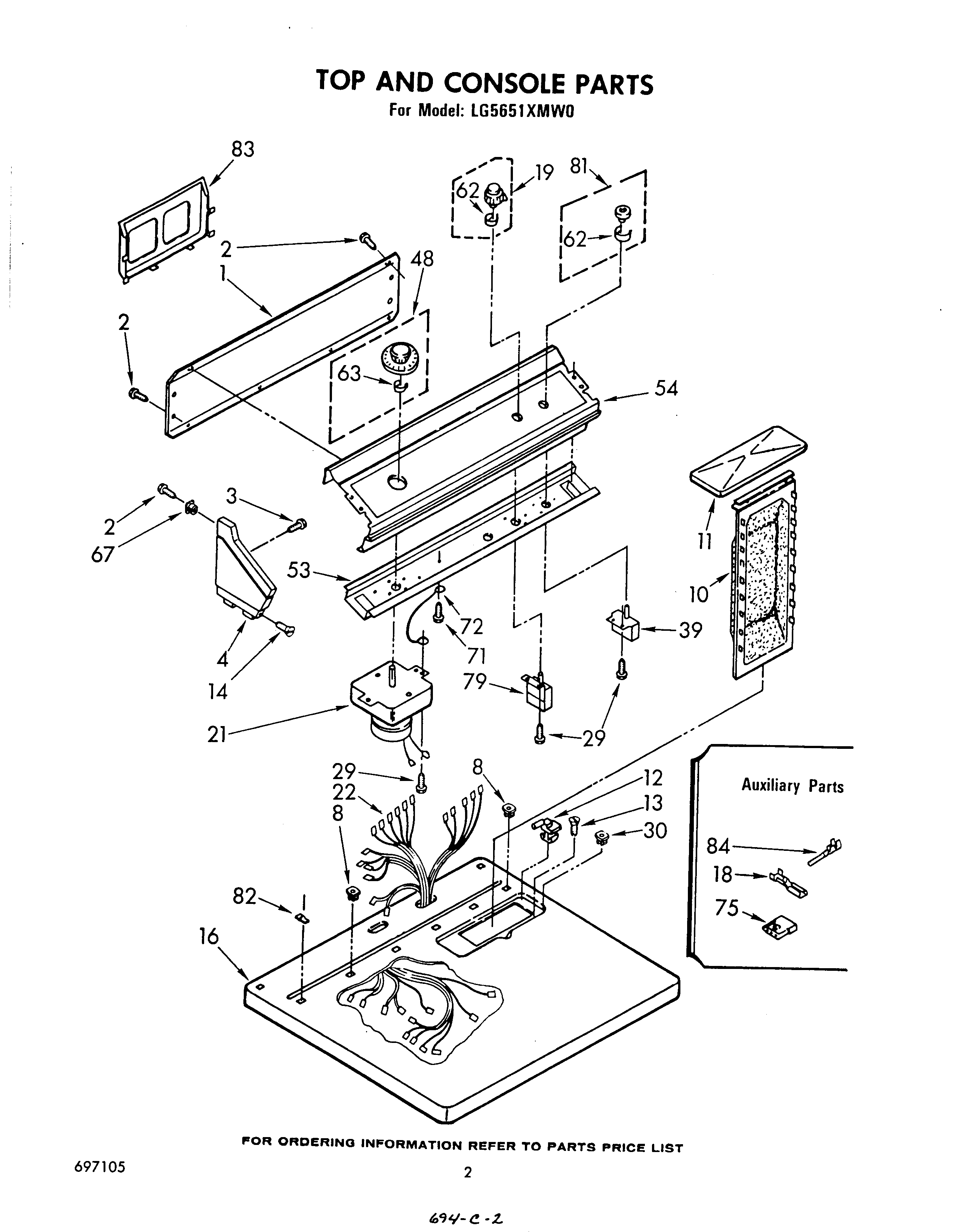

LG5651XMW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Washer (Belt Drive)
	Wire, 25` Roll (Red 12 Ga.)
	Guide, Dryer
	WPL LIT677971
	WPL LIT694344
	Dryer
	WPL 010875
	WPL LIT696754
	Leveler (Thinner)
	WPL LIT677967
	WPL LIT697105
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
1	Panel, Rear Console
3	WPL 355326
4	Cap, End (L.H.) (White Cap, End (R.H.))
4	Cap, End (L.H.) (White)
8	Nut, Push-In (2)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Screw, 8-18 x 1 (2)
16	top (white)
18	WP94614 Whirlpool Terminal
19	Control Knob Assembly
21	Timer, 60 Hz.
22	Harness, Wiring
29	WP3390631 Whirlpool Screw
30	98460 Whirlpool Nut
39	Switch, Push-To-Start
39	(Alt.)
39	Switch, Push-To-Start (Alternate)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	Clip
63	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
71	SCREW
72	Wire, Ground
75	353424 Whirlpool Connector
75	Connector (Door Switch)
79	Switch, Temperature Selector
81	Button Assembly
82	Stop, Push-In Top
83	Rack, Literature
84	WP596797 Whirlpool Terminal
