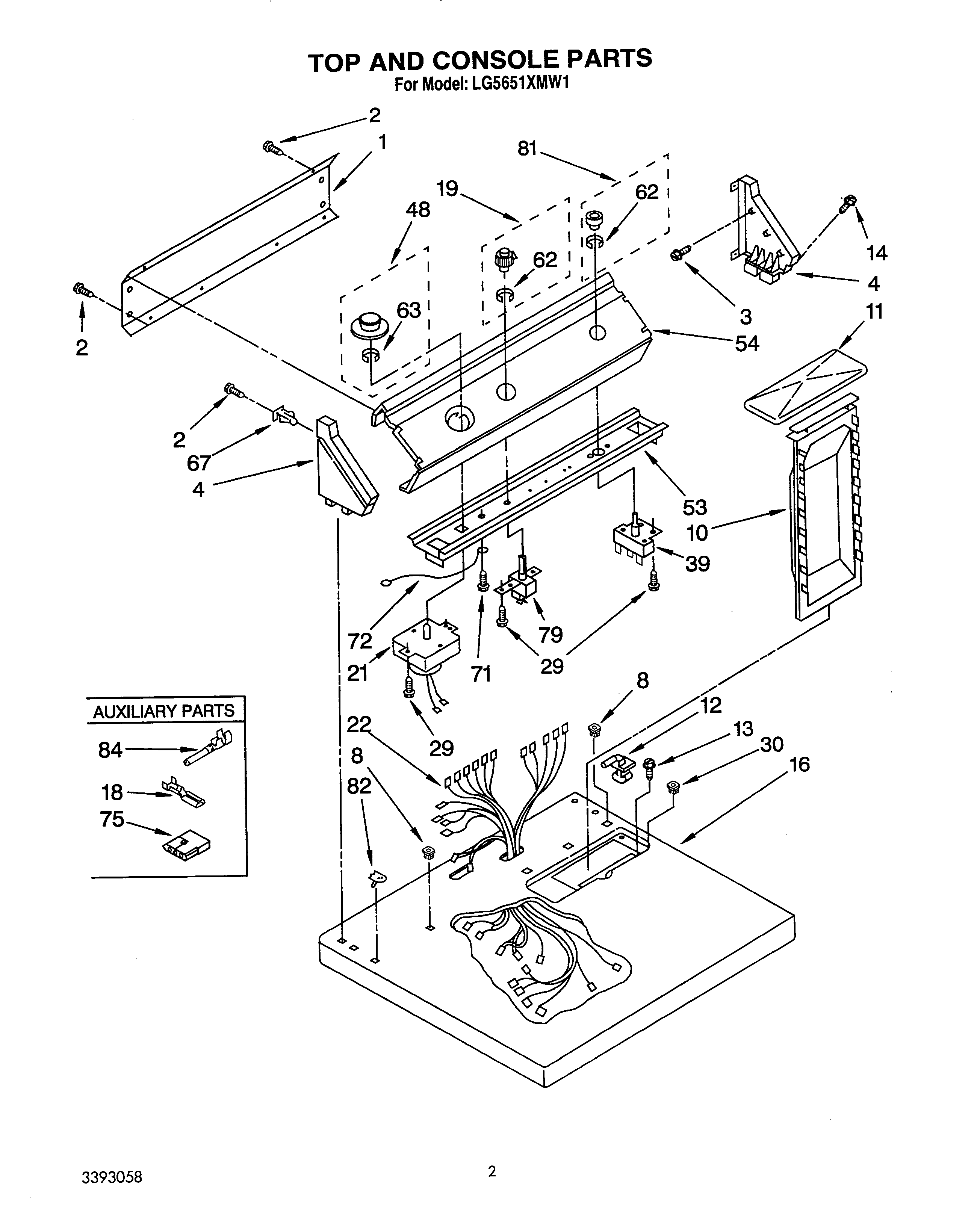

LG5651XMW1 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Washer (Belt Drive)
	List, Service Parts
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	WPL LIT677971
	Dryer
	Guide, Dryer
	WPL LIT3393137
	Leveler (Thinner)
	Use and Care Guide
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
	WPL LIT677967
1	Panel, Rear Console
3	WPL 355326
4	Cap, End (L.H.) (White Cap, End (R.H.))
4	Cap, End (L.H.) (White)
8	Nut, Push-In (2)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Screw, 8-18 x 1 (2)
16	top (white)
18	WP94614 Whirlpool Terminal
19	Control Knob Assembly
21	Timer Assembly, 60 Hz.
22	Harness, Wiring
29	WP3390631 Whirlpool Screw
30	98460 Whirlpool Nut
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
39	(Alt.)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	Clip
63	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
71	SCREW
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
79	Switch, Temperature Selector
81	Button Assembly
82	Stop, Push-In Top
84	WP596797 Whirlpool Terminal
84	Wire, 25` Roll (Blue 16 Ga.)
84	Wire, 25` Roll (Red 12 Ga.)
