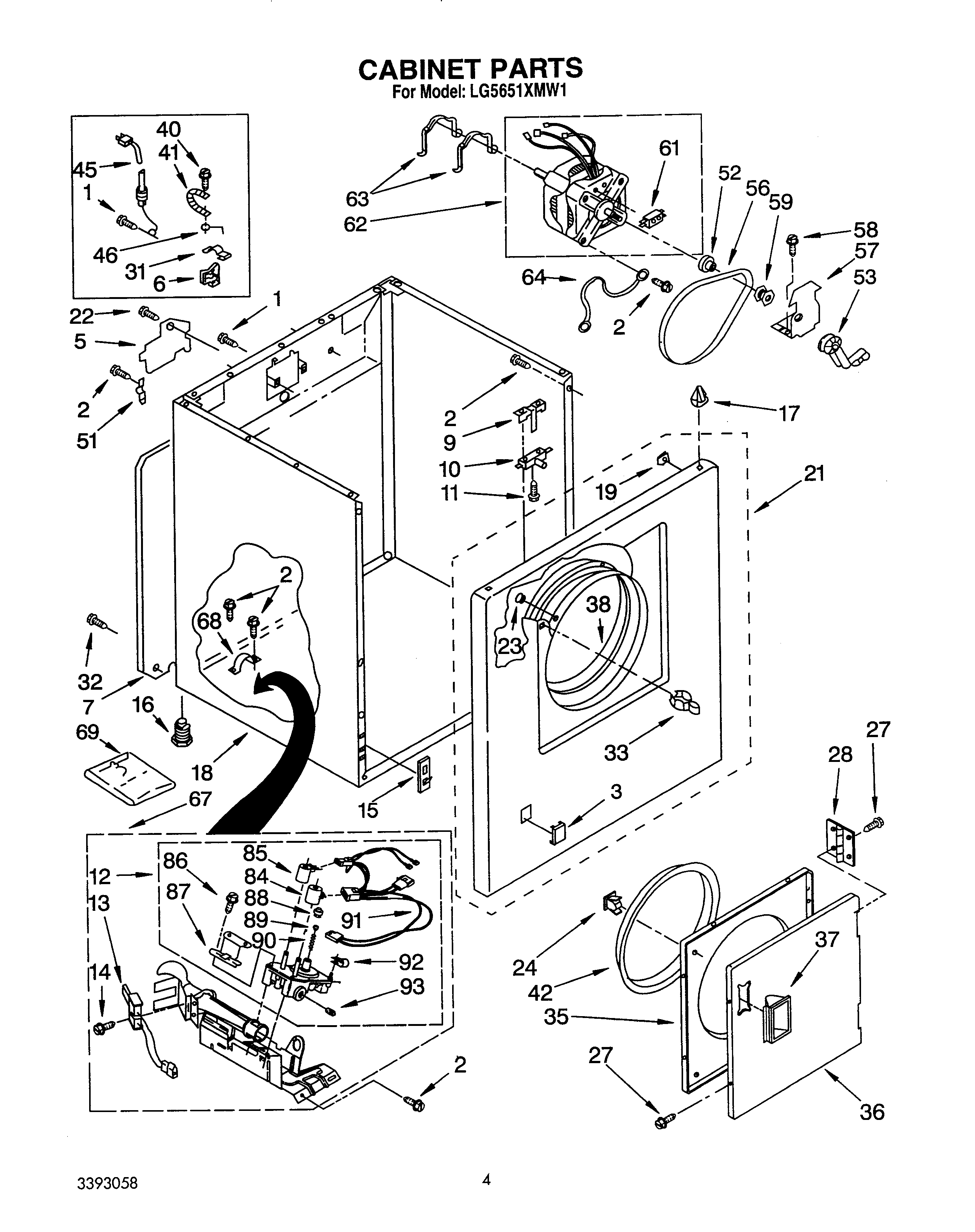

LG5651XMW1 03 – CABINET

LG5651XMW1 03 – CABINET

Written by

in

LG5651XMW1 03 – CABINET

Products

PositionProduct
1W10850756 Whirlpool Screw
2SCREW
3Plug, Front Panel (White)
5W11736322 Whirlpool Cover Assembly
6Clip, Harness (Rear Bulkhead Area)
7Panel, Rear
9WP691581 Whirlpool Actuator
10W10820036 Whirlpool Door Switch Kit
11WP98129 Whirlpool Screw
12279923 Whirlpool Gas Valve
13279311 Whirlpool Dryer Flat Igniter with Bracket
14WPW10366705 Whirlpool Screw
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17WP18776 Whirlpool Lock
18Cabinet (White)
19WP98234 Whirlpool Nut
21Front Panel Assembly (White)
22WP693995 Whirlpool Screw
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
27WP694091 Whirlpool Screw
28WP348023 Whirlpool Hinge
318528351 Whirlpool Clip
32WP489069 Whirlpool Compactor Screw
33279570 Whirlpool Dryer Door Latch Kit
35280077 Whirlpool Door
36WP348205 Whirlpool Door
37WP686711 Whirlpool Door Handle
38279264 Whirlpool Bearing and Seal Kit
40Screw, Ground (10-24 x 1)
41Strap, Ground
42W11613302 Whirlpool Door Seal
45W11222083 Whirlpool Power Cord
46WPL 364089
51WP8066217 Whirlpool Hinge
52WP3393657 Whirlpool Belt Retainer
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
61279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
64Wire, Ground (Motor)
67Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
68341029 Whirlpool Clamp
69Kit, Conversion Type 1 To Type 3 (MFD)
6949572A Whirlpool Dryer Propane Gas Conversion Kit
84279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
86694421 Whirlpool Screw Assembly
87694538 Whirlpool Bracket
88WP694424 Whirlpool Limiter
89WP694423 Whirlpool Regulator
90WP694422 Whirlpool Spring
91WP3401850 Whirlpool Wire Harness
92WPL 694510
93W10295523 Whirlpool Plug
