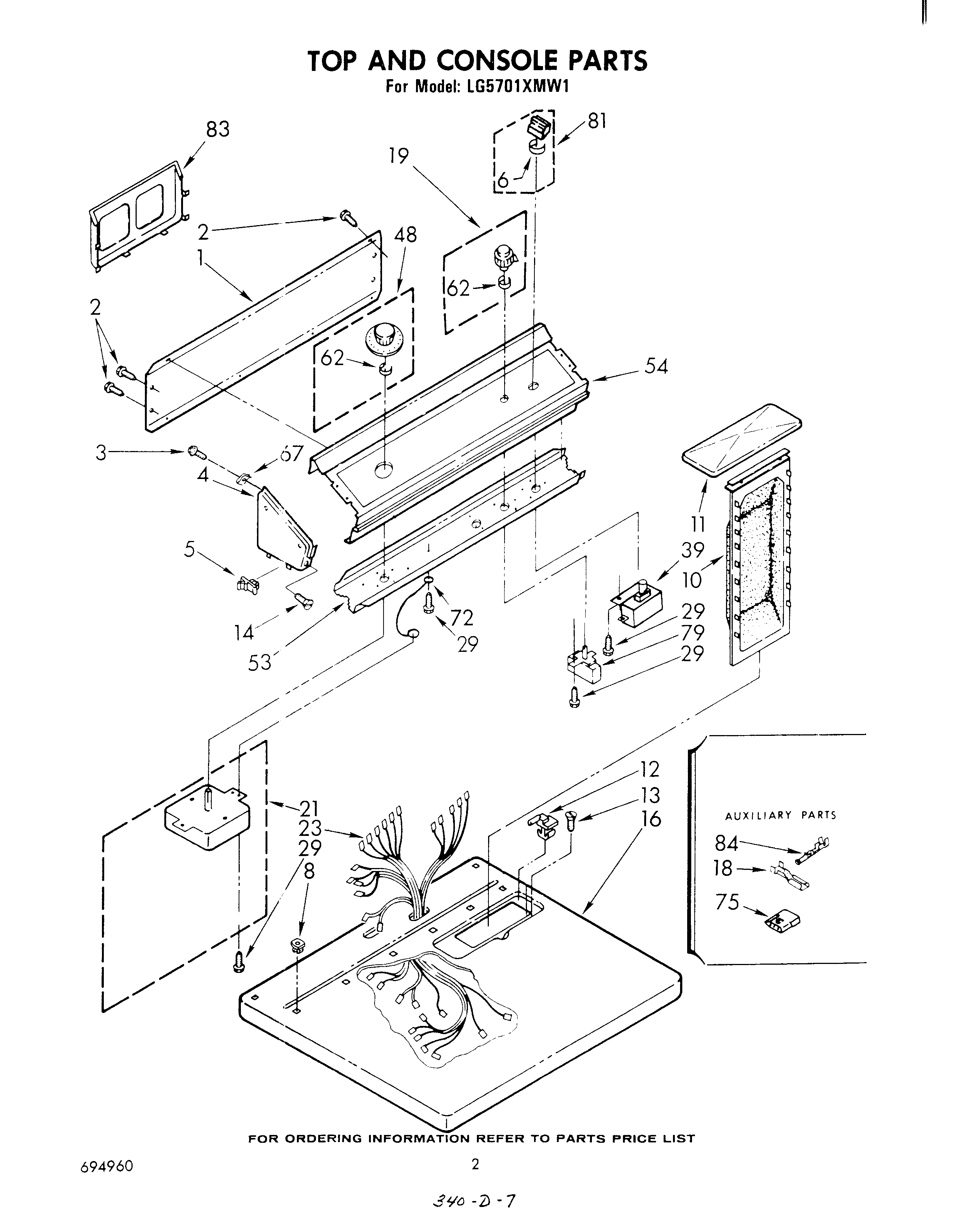

LG5701XMW1 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

LG5701XMW1 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

Written by

in

LG5701XMW1 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

Products

PositionProduct
Platinum (Uncut)
Golden Harvest (Uncut)
Almond (Uncut)
Enamal, Toast (1 Qt. Uncut)
799344 Whirlpool Refrigerator Paint
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End L.H. (Platinum)
4Cap, End L.H. (Toast)
4Cap, End (L.H.) (Toast)
4Cap, End (L.H.) (White)
4Cap, End L.H. (White)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End L.H. (Golden Harvest)
4Cap, End (L.H.) (Platinum Cap, End (R.H.))
5Stop, Push-In Top
6Clip
8Nut, Push-In (2)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Screw, 8-18 x 1 (2)
16top (white)
16Top (Golden Harvest)
16Top (Almond)
16Top (Platinum)
16Top (Toast)
18WP94614 Whirlpool Terminal
19Control Knob Assembly
21Timer, 60 Hz.
23Harness, Wiring
29WP3390631 Whirlpool Screw
39Switch, Push-To-Start
39(Alt.)
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67Clip (4)
72Wire, Ground
75Connector (Door Switch)
75353424 Whirlpool Connector
79Switch, Rotary
81Button Assembly
83Rack, Literature
84WPL 694960
84WPL 694344
84WPL 691272
84WPL 693849
84Paint, Spray (13 Oz.) (Platinum)
84350956 Whirlpool Spray Assembly
8472017 Whirlpool Appliance Touch-Up Paint White
84WP72107 Whirlpool Touchup
84WP596797 Whirlpool Terminal
84350930 Whirlpool White Spray Paint
8472110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
8472113 Whirlpool Touch-Up Paint
84Golden Harvest
84Toast
84WPL 72112
84WPL 799351
84Leveler (Thinner)
84350938 Whirlpool Spray Gun
