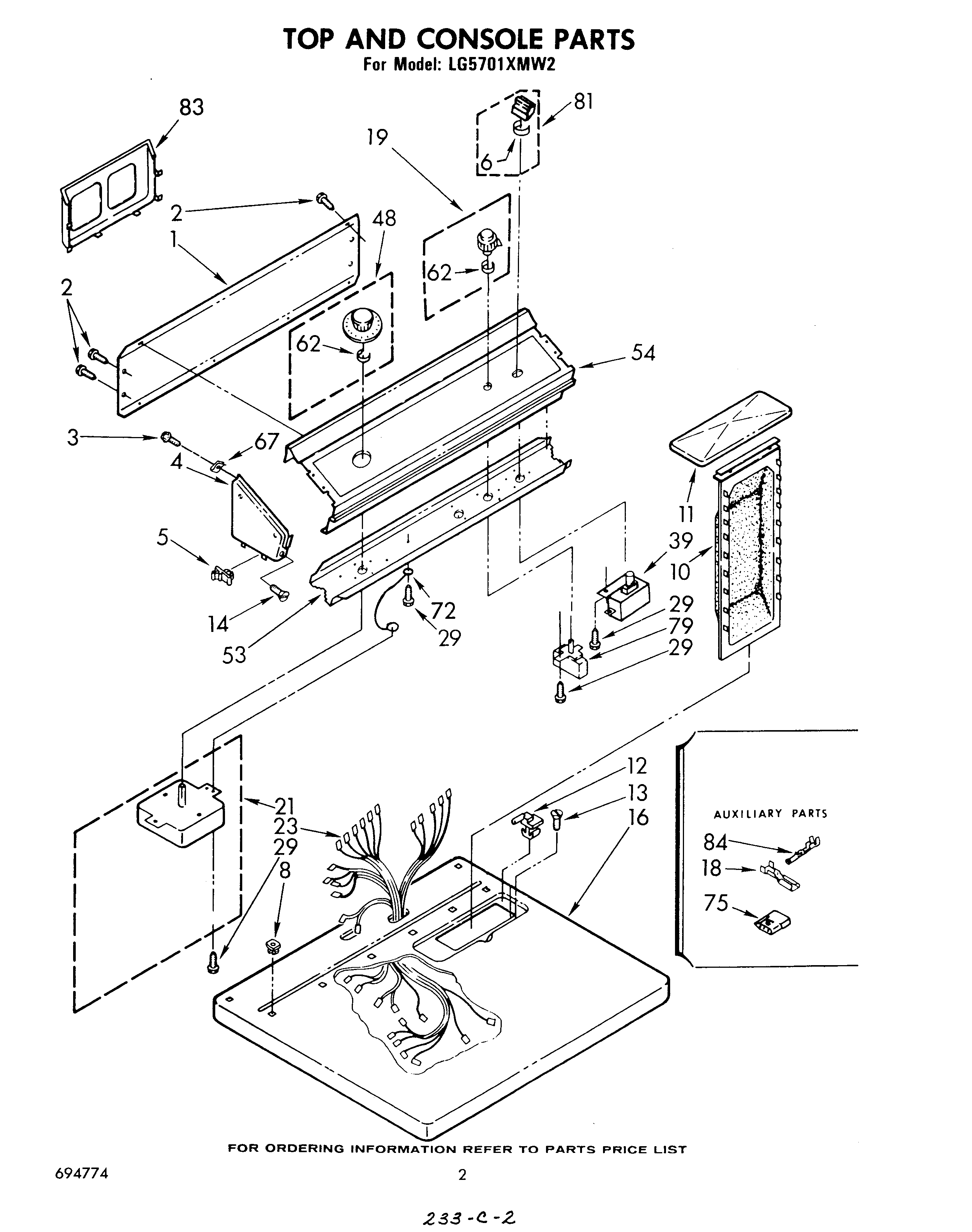

LG5701XMW2 02 – TOP AND CONSOLE , MISCELLANEOUS

LG5701XMW2 02 – TOP AND CONSOLE , MISCELLANEOUS

Written by

in

LG5701XMW2 02 – TOP AND CONSOLE , MISCELLANEOUS

Products

PositionProduct
Platinum (Uncut)
Almond (Uncut)
Enamal, Toast (1 Qt. Uncut)
799344 Whirlpool Refrigerator Paint
Golden Harvest (Uncut)
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End (L.H.) (Toast)
4Cap, End L.H. (Toast)
4Cap, End (L.H.) (Platinum Cap, End (R.H.))
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End (L.H.) (White)
4Cap, End L.H. (White)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End L.H. (Platinum)
4Cap, End L.H. (Golden Harvest)
4Cap, End (L.H.) (Almond)
5Stop, Push-In Top
6Clip
8Nut, Push-In (2)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Golden Harvest)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Screw, 8-18 x 1 (2)
16Top (Toast)
16top (white)
16Top (Golden Harvest)
16Top (Almond)
16Top (Platinum)
18WP94614 Whirlpool Terminal
19Control Knob Assembly
21Timer, 60 Hz.
23Harness, Wiring
29WP3390631 Whirlpool Screw
39Switch, Push-To-Start (Alternate)
39(Alt.)
39Switch, Push-To-Start
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67Nut, Push-In (4)
72Wire, Ground
75Connector (Door Switch)
75353424 Whirlpool Connector
79Switch, Temperature Selector
81Button Assembly
83Rack, Literature
84Paint, Spray (13 Oz.) (Platinum)
84WP596797 Whirlpool Terminal
84WP72107 Whirlpool Touchup
8472017 Whirlpool Appliance Touch-Up Paint White
84350956 Whirlpool Spray Assembly
84350938 Whirlpool Spray Gun
84WPL 694344
84WPL 691272
84350930 Whirlpool White Spray Paint
84Leveler (Thinner)
8472110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
8472113 Whirlpool Touch-Up Paint
84Golden Harvest
84Toast
84WPL 72112
84WPL 799351
84WPL 693849
84WPL 694774
