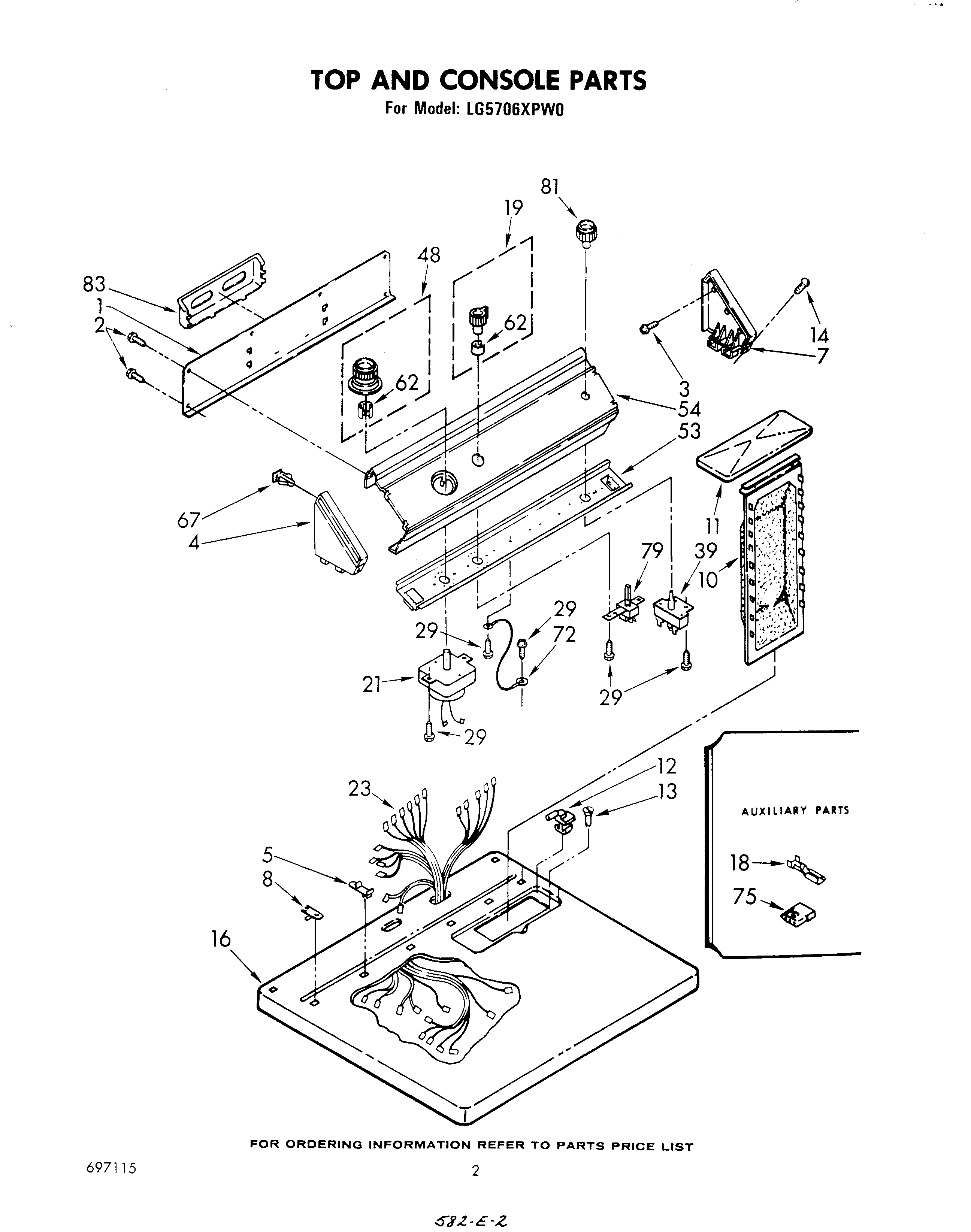

LG5706XPW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG5706XPW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG5706XPW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL 72112
Platinum (Uncut)
Enamal, Toast (1 Qt. Uncut)
WPL LIT677967
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
WPL LIT677971
72113 Whirlpool Touch-Up Paint
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
Golden Harvest
Golden Harvest (Uncut)
Toast
Dryer
WPL LIT697115
WPL LIT696760
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL LIT696233
WP72107 Whirlpool Touchup
Guide, Dryer
Leveler (Thinner)
Almond (Uncut)
Washer (Belt Drive)
Paint, Spray (13 Oz.) (Platinum)
1Panel, Rear
2WP489069 Whirlpool Compactor Screw
3WPL 355326
4Cap, End (L.H.)
5Stop, Push-In Top
7WPL 63795
8Nut, Push-In (2)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WPL 64211
16Top (Almond)
16Top (Golden Harvest)
16Top (White)
16Top (Platinum)
16Top (Toast)
18WP94614 Whirlpool Terminal
19Knob, Water Level
21Timer, 60 Hz.
23Harness, Wiring
29WP3390631 Whirlpool Screw
39Switch, Push-To-Start
39(Alt.)
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
75Receptacle, 3-Way Terminal (Use W/94614)
79Switch, Temperature Selector
81Knob, Push To Start
83Rack, Literature
