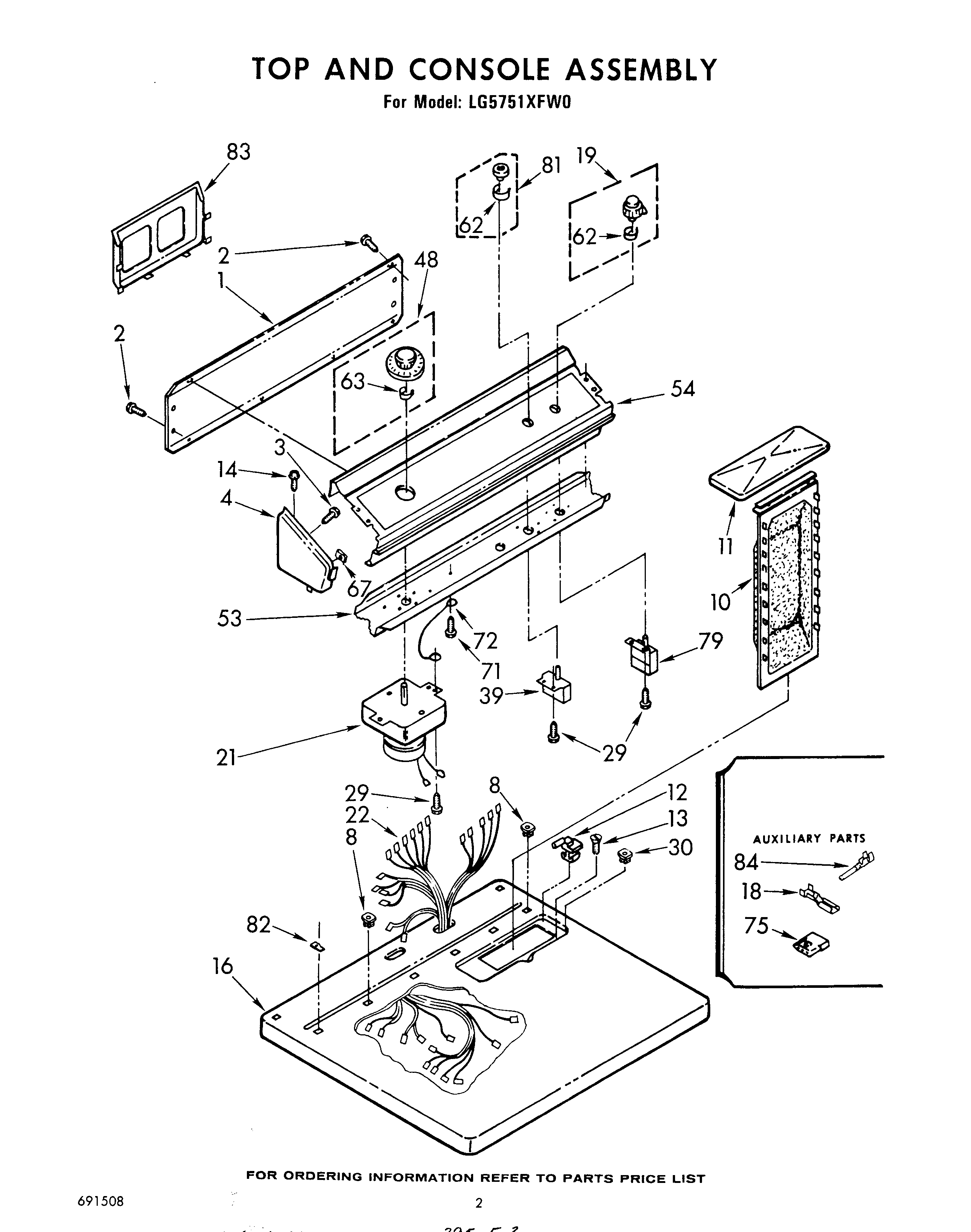

LG5751XFW0 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

Products

PositionProduct
Wire, 25` Roll (Red 12 Ga.)
799344 Whirlpool Refrigerator Paint
1Panel, Rear Console
3WPL 355326
4Cap , End (R.H.) (White)
4Cap, End (L.H.) (White)
8Nut, Push-In (2)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Screw, 8-18 x 1 (2)
16top (white)
18WP94614 Whirlpool Terminal
19Control Knob Assembly
21Timer Assembly 60 Hz.
22Harness, Wiring
29WP3390631 Whirlpool Screw
3098460 Whirlpool Nut
39(Alt.)
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62Clip
63WP688805 Whirlpool Spring Clip
67Clip (4)
71SCREW
72Wire, Ground
75Connector (Door Switch)
75353424 Whirlpool Connector
79Switch, Rotary
81Button Assembly
82Stop, Push-In Top
83Rack, Literature
84Instructions,
84Leveler (Thinner)
84350930 Whirlpool White Spray Paint
84WP596797 Whirlpool Terminal
8472017 Whirlpool Appliance Touch-Up Paint White
84350938 Whirlpool Spray Gun
84Use & Care Guide
84279320 Whirlpool Dryer Rear Terminal Block Kit
84WPL 799351
84Instructions, Wiring
84W10851673 Whirlpool Transformer
84WPL 688898
84WPL 687011
84Wire, Adapter (4“ Long)
84WPL 349849
84Supplement, Installation Instructions
84Wire, Adapter (4-1/2 “ Long)
84List, Service Parts
