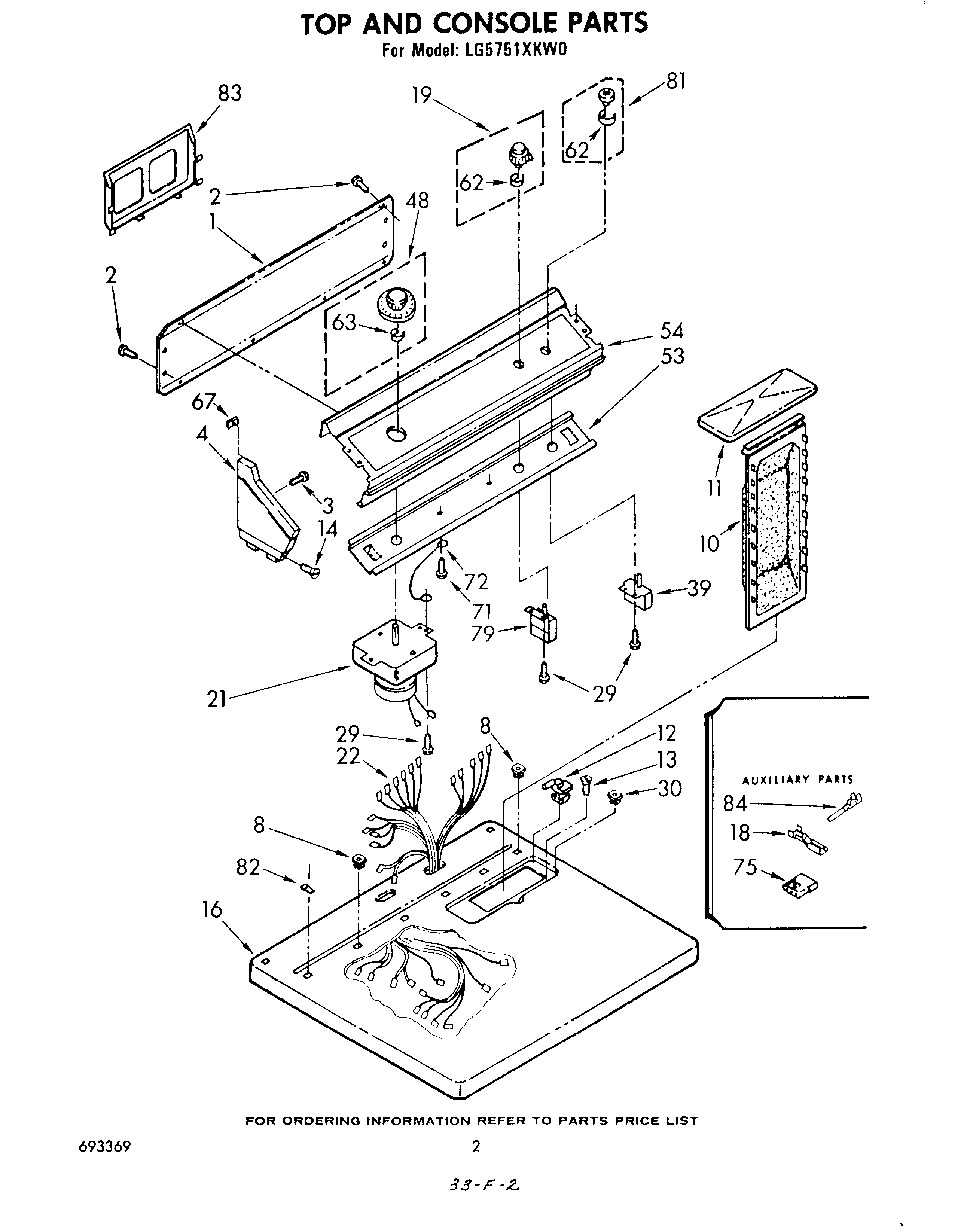

LG5751XKW0 02 – TOP AND CONSOLE , LIT/OPTIONALadmin2025-04-26T11:24:23+00:00LG5751XKW0 02 – TOP AND CONSOLE , LIT/OPTIONAL
Products
| Position | Product |
|---|
| Wire, 25` Roll (Red 12 Ga.) |
| 799344 Whirlpool Refrigerator Paint |
| 1 | Panel, Rear Console |
| 3 | WPL 355326 |
| 4 | Cap, End (L.H.) (White) |
| 4 | Cap, End (L.H.) (White Cap, End (R.H.)) |
| 8 | Nut, Push-In (2) |
| 10 | 339392V Whirlpool Dryer Lint Filter Screen |
| 11 | Cover, Lint Screen (White) |
| 12 | WPW10044470 Whirlpool Hinge Assembly |
| 12 | WPW10044480 Whirlpool Hinge Assembly |
| 13 | W11693756 Whirlpool Screw Assembly |
| 14 | Screw, 8-18 x 1 (2) |
| 16 | top (white) |
| 18 | WP94614 Whirlpool Terminal |
| 19 | Control Knob Assembly |
| 21 | Timer Assembly 60 Hz. |
| 22 | Harness, Wiring |
| 29 | WP3390631 Whirlpool Screw |
| 30 | 98460 Whirlpool Nut |
| 39 | Switch, Push-To-Start (Alternate) |
| 39 | Switch, Push-To-Start |
| 39 | (Alt.) |
| 48 | Timer Knob Assembly |
| 53 | Bracket, Control |
| 54 | Panel, Control |
| 62 | Clip |
| 63 | WP688805 Whirlpool Spring Clip |
| 67 | Clip (4) |
| 71 | SCREW |
| 72 | Wire, Ground |
| 75 | 353424 Whirlpool Connector |
| 75 | Connector (Door Switch) |
| 79 | Switch, Rotary |
| 81 | Button Assembly |
| 82 | Stop, Push-In Top |
| 83 | Rack, Literature |
| 84 | List, Service Parts |
| 84 | 350938 Whirlpool Spray Gun |
| 84 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 84 | WPL 694344 |
| 84 | 350930 Whirlpool White Spray Paint |
| 84 | Leveler (Thinner) |
| 84 | WP596797 Whirlpool Terminal |
| 84 | WPL 799351 |
| 84 | WPL 693849 |
| 84 | Use & Care Guide |
