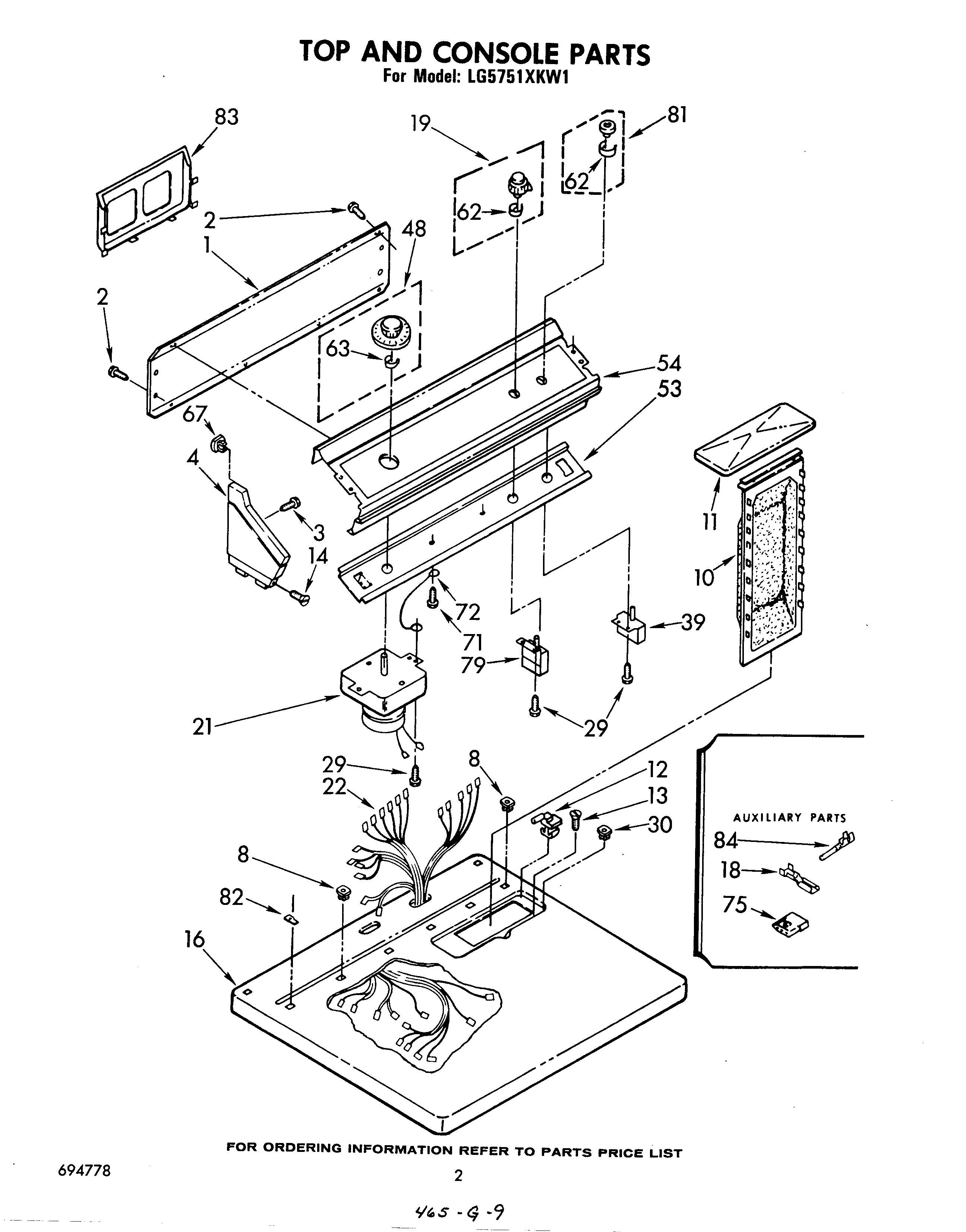

LG5751XKW1 02 – SECTION

Products

Position	Product
	WPL 010875
	799344 Whirlpool Refrigerator Paint
	Wire, 25` Roll (Red 12 Ga.)
1	Panel, Rear Console
3	WPL 355326
4	Cap, End (L.H.) (White Cap, End (R.H.))
4	Cap, End (L.H.) (White)
8	Nut, Push-In (2)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Screw, 8-18 x 1 (2)
16	top (white)
18	WP94614 Whirlpool Terminal
19	Control Knob Assembly
21	Timer Assembly 60 Hz.
22	Harness, Wiring
29	WP3390631 Whirlpool Screw
30	98460 Whirlpool Nut
39	(Alt.)
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	Clip
63	WP688805 Whirlpool Spring Clip
67	Nut, Push-In (4)
71	SCREW
72	Wire, Ground
75	353424 Whirlpool Connector
75	Connector (Door Switch)
79	Switch, Temperature Selector
81	Button Assembly
82	Stop, Push-In Top
83	Rack, Literature
84	Leveler (Thinner)
84	Use & Care Guide
84	350938 Whirlpool Spray Gun
84	WPL 694344
84	72017 Whirlpool Appliance Touch-Up Paint White
84	350930 Whirlpool White Spray Paint
84	WP596797 Whirlpool Terminal
84	WPL 799351
84	WPL 693849
84	List, Service Parts
