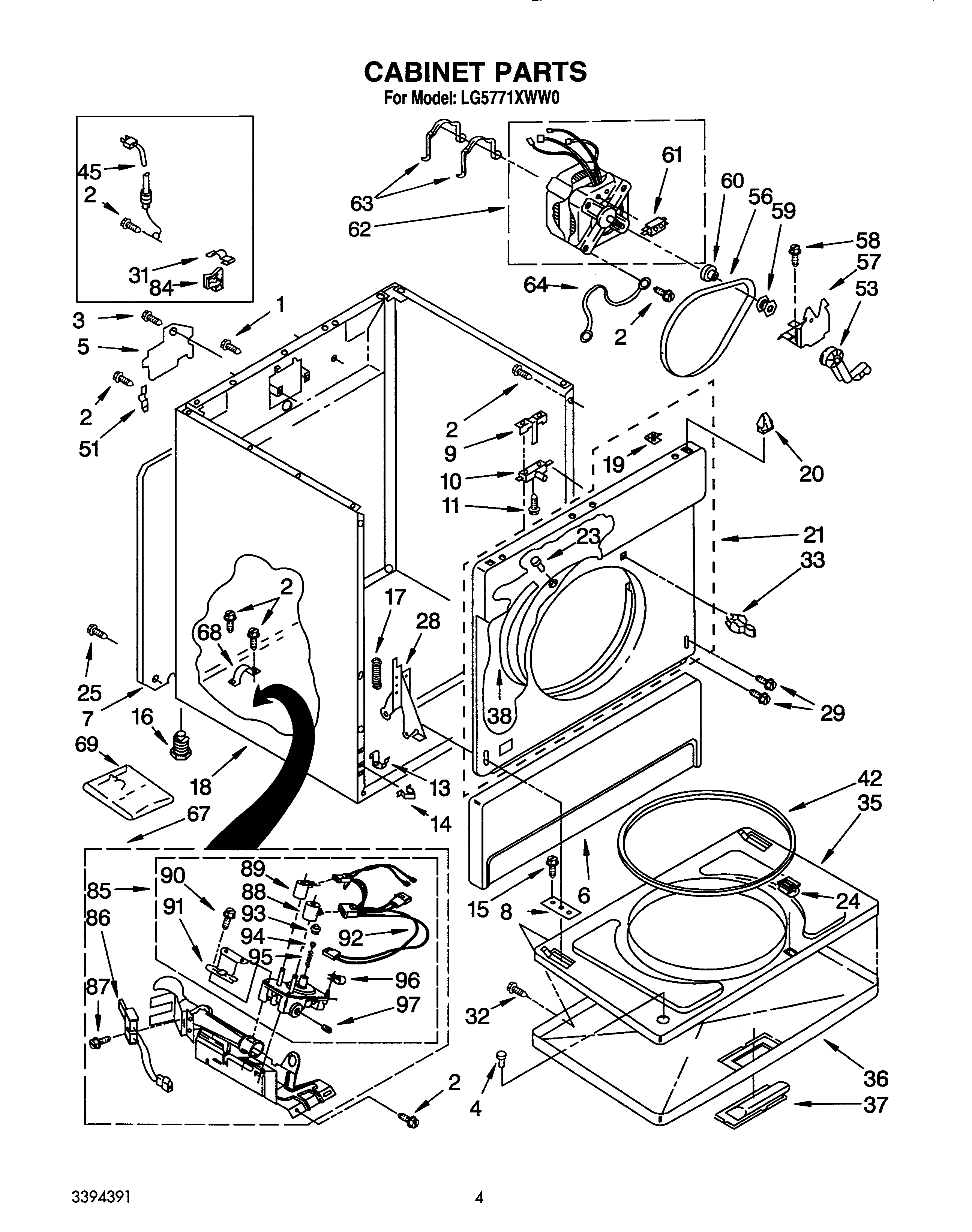

LG5771XWN0 03 – CABINET

Products

Position	Product
1	W10850756 Whirlpool Screw
2	SCREW
3	WP693995 Whirlpool Screw
4	238614 Whirlpool Bumper Hinge
5	W11736322 Whirlpool Cover Assembly
6	Panel, Toe (Almond)
6	Panel, Toe (White)
7	Panel, Rear
8	W11252547 Whirlpool Clip Assembly
9	WP691581 Whirlpool Actuator
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
13	279320 Whirlpool Dryer Rear Terminal Block Kit
14	WP3388229 Whirlpool Dryer Spring Clip
15	WP308685 Whirlpool Microwave Screw
16	49621 Whirlpool Leveling Feet
17	Spring, Door (2)
18	Cabinet (White)
18	Cabinet (Almond)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel Assembly (White)
21	Front Panel Assembly (Almond)
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
25	WP489069 Whirlpool Compactor Screw
28	Hinge, L.H.
28	Hinge, R.H.
29	Screw, 10-32 x 1/2
31	8528351 Whirlpool Clip
32	WP694091 Whirlpool Screw
35	Door, Rear
36	Door, Front (Almond)
36	Door, Front (White)
37	Handle, Door (Almond)
37	WP348721 Whirlpool Handle
38	279264 Whirlpool Bearing and Seal Kit
42	WP3390733 Whirlpool Door Seal Assembly
45	W11222083 Whirlpool Power Cord
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
60	WP3393657 Whirlpool Belt Retainer
61	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
64	Wire, Ground (Motor)
67	Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
68	341029 Whirlpool Clamp
69	Kit, Conversion Type 1 To Type 3 (MFD)
69	49572A Whirlpool Dryer Propane Gas Conversion Kit
84	Clip, Harness (Rear Bulkhead Area)
85	279923 Whirlpool Gas Valve
86	279311 Whirlpool Dryer Flat Igniter with Bracket
87	WPW10366705 Whirlpool Screw
88	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
90	694421 Whirlpool Screw Assembly
91	694538 Whirlpool Bracket
92	WP3401850 Whirlpool Wire Harness
93	WP694424 Whirlpool Limiter
94	WP694423 Whirlpool Regulator
95	WP694422 Whirlpool Spring
96	WPL 694510
97	W10295523 Whirlpool Plug
