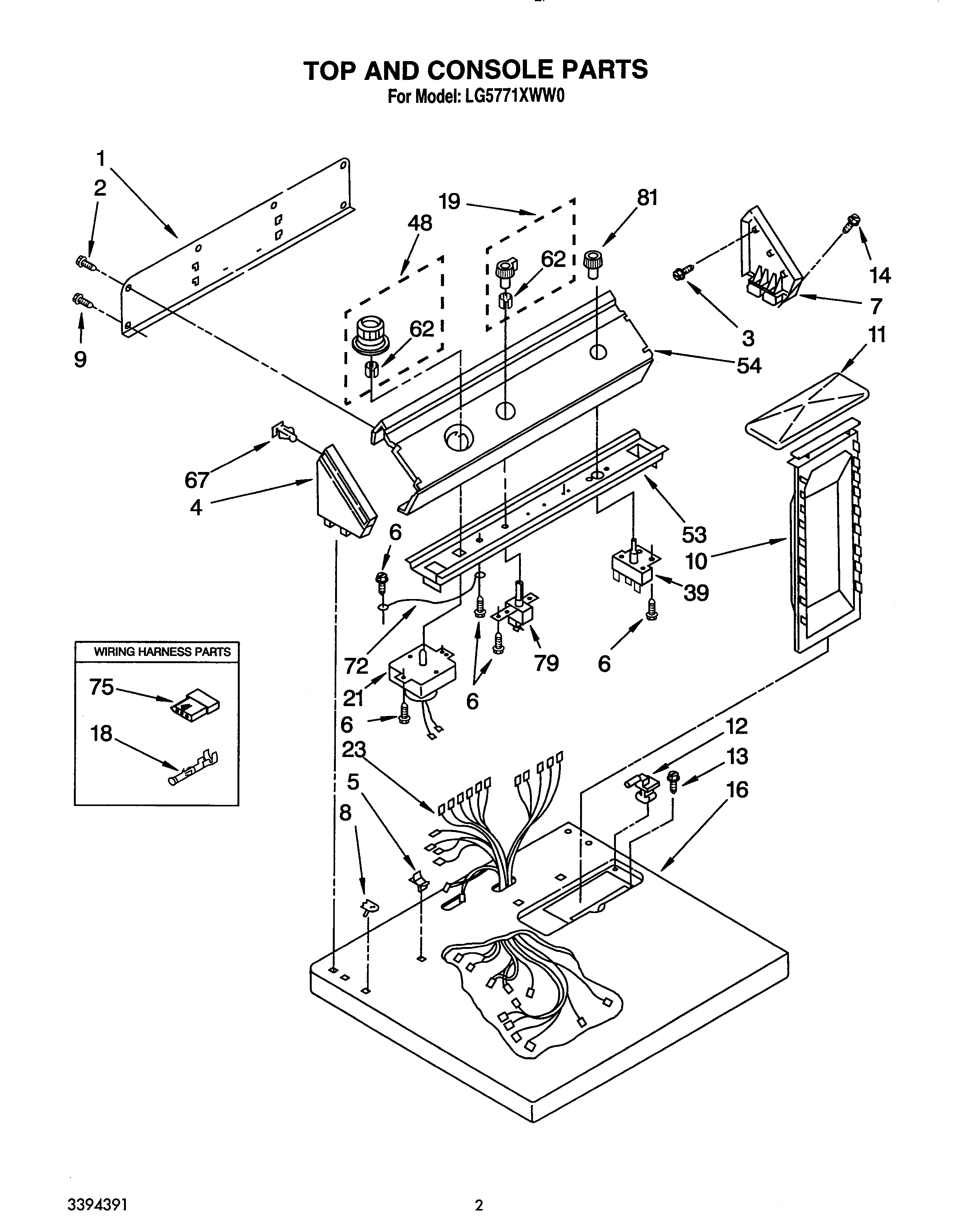

LG5771XWW0 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	Washer (Belt Drive)
	Dryer
	Instructions, Installation
	Guide, Dryer
	Use & Care Guide
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	WPL LIT677971
	Label, Operating Instructions
	WPL LIT677967
	Label, Wiring Diagram
	Almond (Uncut)
	Leveler (Thinner)
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	799344 Whirlpool Refrigerator Paint
	List, Service Parts
	WP72107 Whirlpool Touchup
1	Panel, Rear
2	WP489069 Whirlpool Compactor Screw
3	WPL 355326
4	Cap, End (L.H.)
5	Stop, Push-In Top
6	SCREW
7	WPL 63795
8	Nut, Push-In (2)
9	WP693995 Whirlpool Screw
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
16	Top (White)
16	Top (Almond)
18	WP94614 Whirlpool Terminal
19	Control Knob, Temperature
21	Timer Assembly, 60 Hz.
23	Harness, Wiring
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
39	(Alt.)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
79	Switch, Temperature Selector
81	Knob, Push-To-Start
