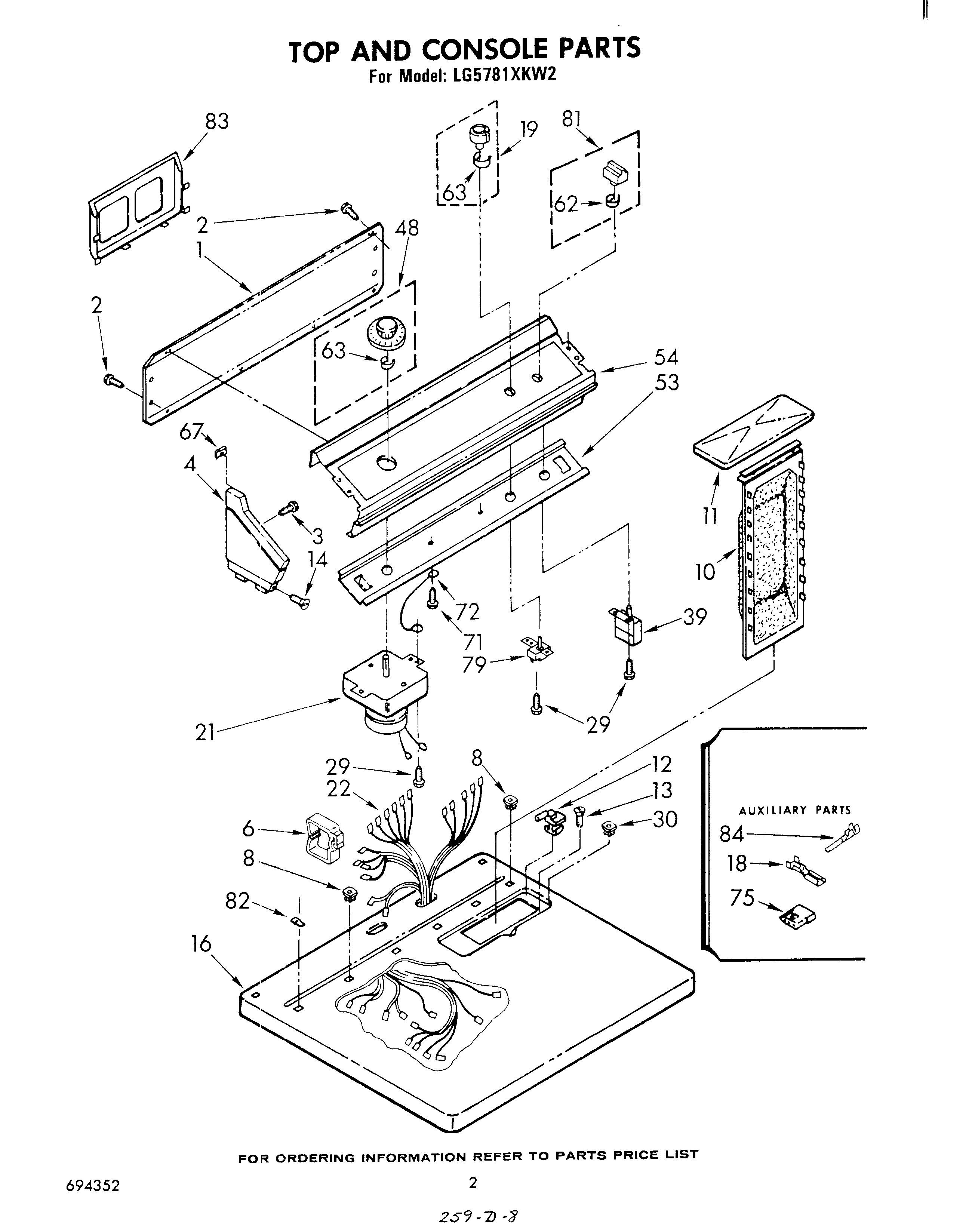

LG5781XKW2 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG5781XKW2 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG5781XKW2 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
Almond (Uncut)
Enamel, New Avocado (1 Qt. Uncut)
799344 Whirlpool Refrigerator Paint
Golden Harvest (Uncut)
Wire, 25` Roll (Red 12 Ga.)
1Panel, Rear Console
3WPL 355326
4Cap, End L.H. (Golden Harvest)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End (L.H.) (Almond)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (White)
4End Cap Assembly, L.H. (New Avocado)
4End Cap Assembly, L.H. (New Avocado)
4Cap, End L.H. (White)
6Clip, Harness (Rear Bulkhead Area)
8Nut, Push-In (2)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (New Avocado)
11Cover, Lint Screen (Golden Harvest)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Screw, 8-18 x 1 (2)
16top (white)
16Top (Almond)
16Top (Golden Harvest)
16Top (New Avocado)
18WP94614 Whirlpool Terminal
19Control Knob Assembly
21Timer Assembly 60 Hz.
22Harness, Wiring
29WP3390631 Whirlpool Screw
3098460 Whirlpool Nut
39Switch, Push-To-Start (Alternate)
39Switch, Push-To-Start
39(Alt.)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62Clip
63WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
71SCREW
72Wire, Ground
75Connector (Door Switch)
75353424 Whirlpool Connector
79Switch, Rotary
81Button Assembly
82Stop, Push-In Top
83Rack, Literature
84WPL 694344
84WPL 691264
8472017 Whirlpool Appliance Touch-Up Paint White
84350956 Whirlpool Spray Assembly
84350938 Whirlpool Spray Gun
84WP72107 Whirlpool Touchup
84Leveler (Thinner)
84WPL 799351
84Paint, Spray 13 Oz. (Avocado)
8472109 Whirlpool Dacor Avocado Touch-Up Paint
84Golden Harvest
8472110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
84350930 Whirlpool White Spray Paint
84WP596797 Whirlpool Terminal
84WPL 693849
84WPL 694352
