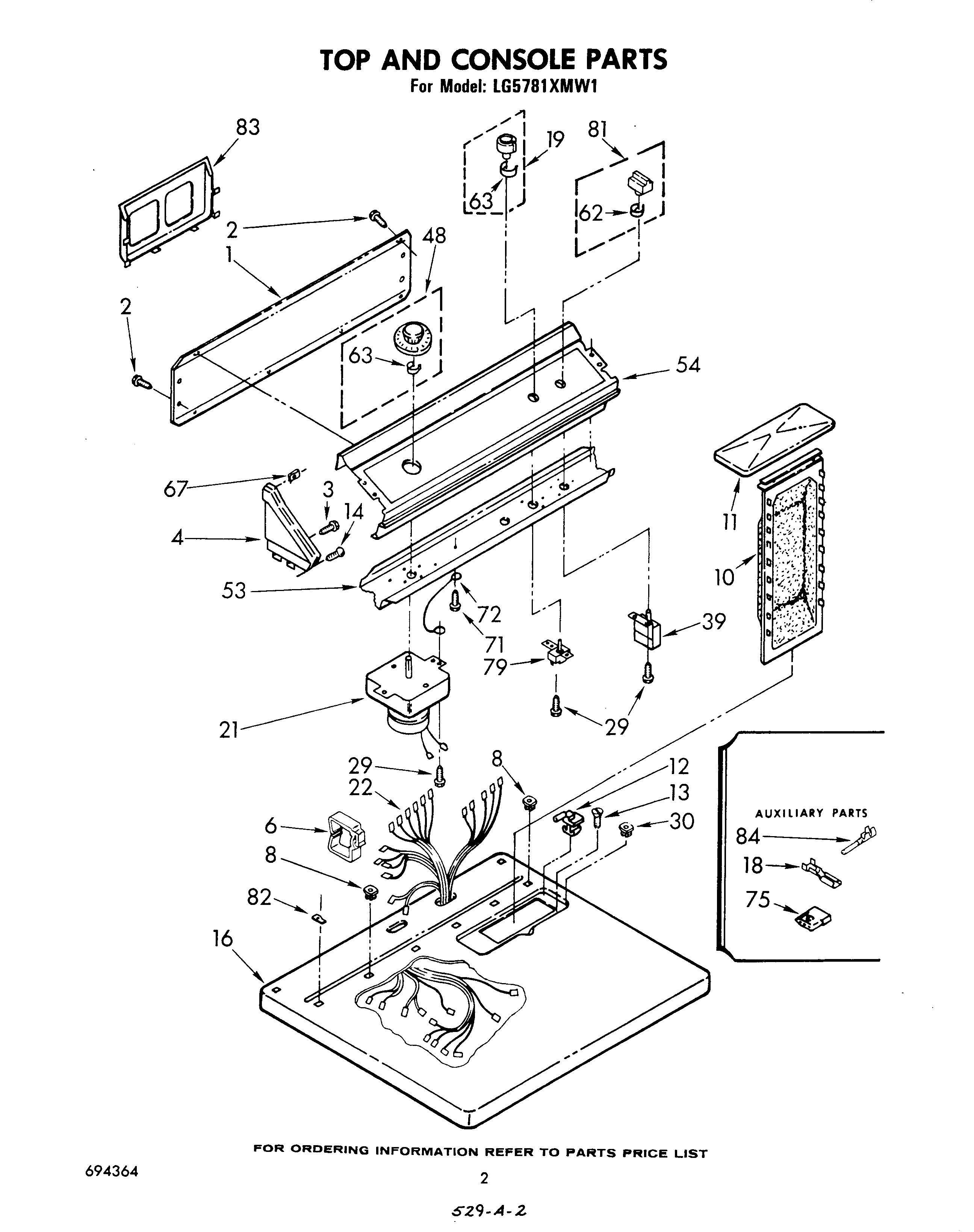

LG5781XMW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG5781XMW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG5781XMW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
Golden Harvest (Uncut)
Wire, 25` Roll (Red 12 Ga.)
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
1Panel, Rear Console
3WPL 355326
4Cap, End (L.H.) (White)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End L.H. (Golden Harvest)
4Cap, End L.H. (White)
6Clip, Harness (Rear Bulkhead Area)
8Nut, Push-In (2)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Screw, 8-18 x 1 (2)
16top (white)
16Top (Almond)
16Top (Golden Harvest)
18WP94614 Whirlpool Terminal
19Control Knob Assembly
21Timer Assembly 60 Hz.
22Harness, Wiring
29WP3390631 Whirlpool Screw
3098460 Whirlpool Nut
39(Alt.)
39Switch, Push-To-Start
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62Clip
63WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
71SCREW
72Wire, Ground
75353424 Whirlpool Connector
75Connector (Door Switch)
79Switch, Temperature Selector
81Button Assembly
82Stop, Push-In Top
83Rack, Literature
84WPL 694344
84WPL 694364
84WP72107 Whirlpool Touchup
8472110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
84WPL 799351
84WP596797 Whirlpool Terminal
84Leveler (Thinner)
84Golden Harvest
84350930 Whirlpool White Spray Paint
8472017 Whirlpool Appliance Touch-Up Paint White
84350956 Whirlpool Spray Assembly
84350938 Whirlpool Spray Gun
84WPL 693849
84WPL 693671
