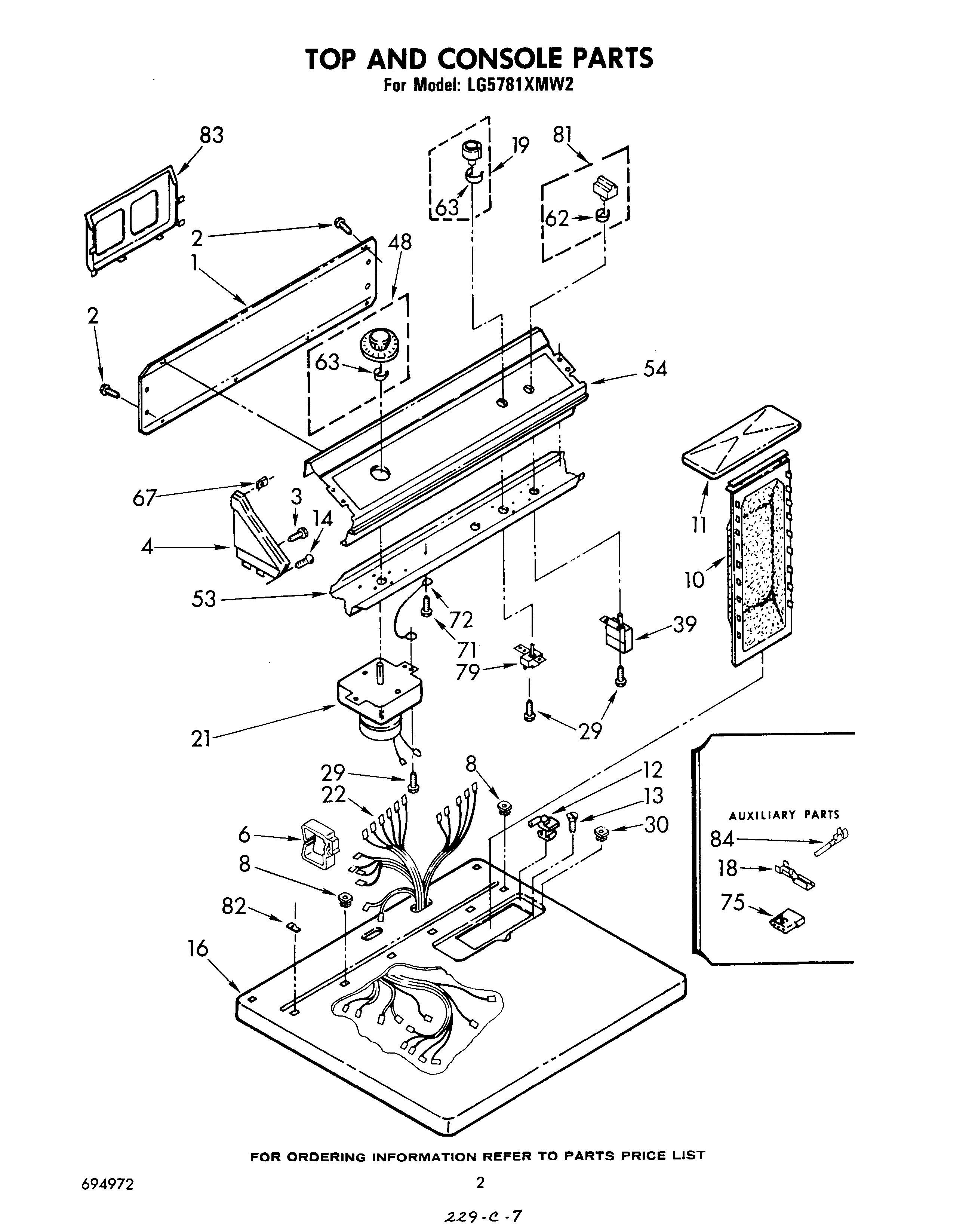

LG5781XMW2 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
Golden Harvest (Uncut)
Wire, 25` Roll (Red 12 Ga.)
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
1Panel, Rear Console
3WPL 355326
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End L.H. (Golden Harvest)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (White)
4Cap, End L.H. (White)
4Cap, End (L.H.) (Almond)
6Clip, Harness (Rear Bulkhead Area)
8Nut, Push-In (2)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Golden Harvest)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Screw, 8-18 x 1 (2)
16Top (Golden Harvest)
16Top (Almond)
16top (white)
18WP94614 Whirlpool Terminal
19Control Knob Assembly
21Timer Assembly 60 Hz.
22Harness, Wiring
29WP3390631 Whirlpool Screw
3098460 Whirlpool Nut
39Switch, Push-To-Start (Alternate)
39(Alt.)
39Switch, Push-To-Start
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62Clip
63WP688805 Whirlpool Spring Clip
67Nut, Push-In (4)
71SCREW
72Wire, Ground
75Connector (Door Switch)
75353424 Whirlpool Connector
79WPL 695091
81Button Assembly
82Stop, Push-In Top
83Rack, Literature
84WPL 694344
84WP72107 Whirlpool Touchup
84WPL 693671
84WPL 694972
84WPL 693849
84350956 Whirlpool Spray Assembly
8472017 Whirlpool Appliance Touch-Up Paint White
84Leveler (Thinner)
84WP596797 Whirlpool Terminal
84350930 Whirlpool White Spray Paint
8472110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
84WPL 799351
84Golden Harvest
84350938 Whirlpool Spray Gun
