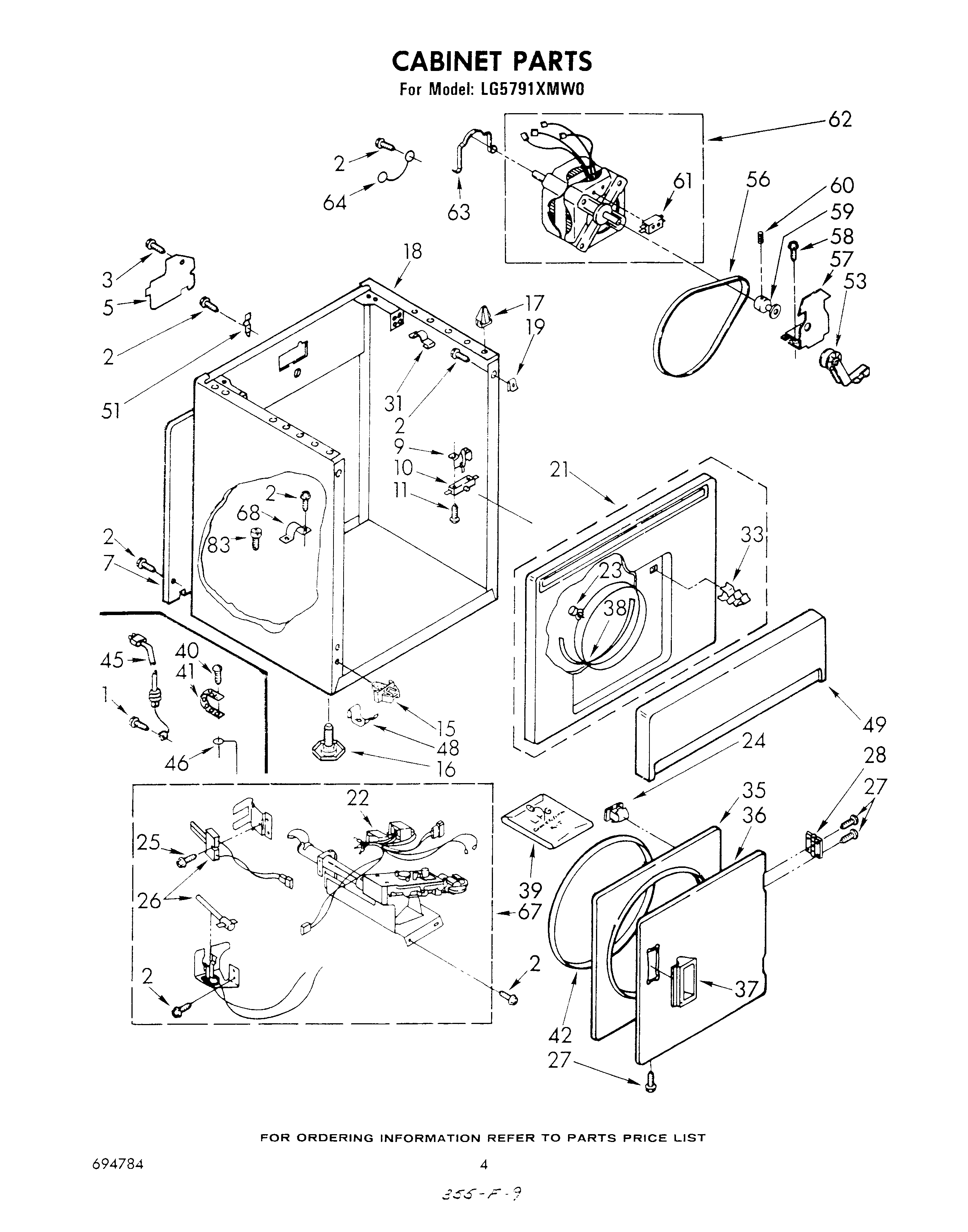

LG5791XMW0 03 – CABINET

LG5791XMW0 03 – CABINET

Written by

in

LG5791XMW0 03 – CABINET

Products

PositionProduct
2SCREW
5W11736322 Whirlpool Cover Assembly
7Panel, Rear
9WP691581 Whirlpool Actuator
10W10820036 Whirlpool Door Switch Kit
11WP98129 Whirlpool Screw
15Clip, Toe Panel
1649621 Whirlpool Leveling Feet
17WP18776 Whirlpool Lock
18Cabinet (White)
18Cabinet (Almond)
18Cabinet (Golden Harvest)
19WP98234 Whirlpool Nut
21Front Panel Assembly (White)
21Upper Front Panel Assembly (Almond)
21Upper Front Panel Assembly (Golden Harvest)
22BURNER-GAS
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
25WPW10366705 Whirlpool Screw
26279311 Whirlpool Dryer Flat Igniter with Bracket
27WP694091 Whirlpool Screw
28WP348023 Whirlpool Hinge
318528351 Whirlpool Clip
35280077 Whirlpool Door
36WPL 689319
36Door, Front (Almond)
36WP348205 Whirlpool Door
37Handle, Door (Golden Harvest)
37WP686711 Whirlpool Door Handle
37Handle, Door (Almond)
38279264 Whirlpool Bearing and Seal Kit
39W10402145 Whirlpool LP Gas Connection
3949572A Whirlpool Dryer Propane Gas Conversion Kit
39Kit, Conversion Type 1 To Type 3 (MFD)
40Screw, Ground (10-24 x 1)
41Strap, Ground
42W11613302 Whirlpool Door Seal
45W11222083 Whirlpool Power Cord
46WPL 364089
48WP297092 Whirlpool Clip
49Panel, Toe (Golden Harvest)
49Panel, Toe (White)
49Panel, Toe (Almond)
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59W11233559 Whirlpool Motor Pulley
60SCREW, SET
61279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
64Wire, Ground (Motor)
67WPL 688639
67WPL 688637
67Burner Assembly 60 Hz. (Type 1, 2 & 3) (White Rodgers)
68341029 Whirlpool Clamp
83WPL 343826
