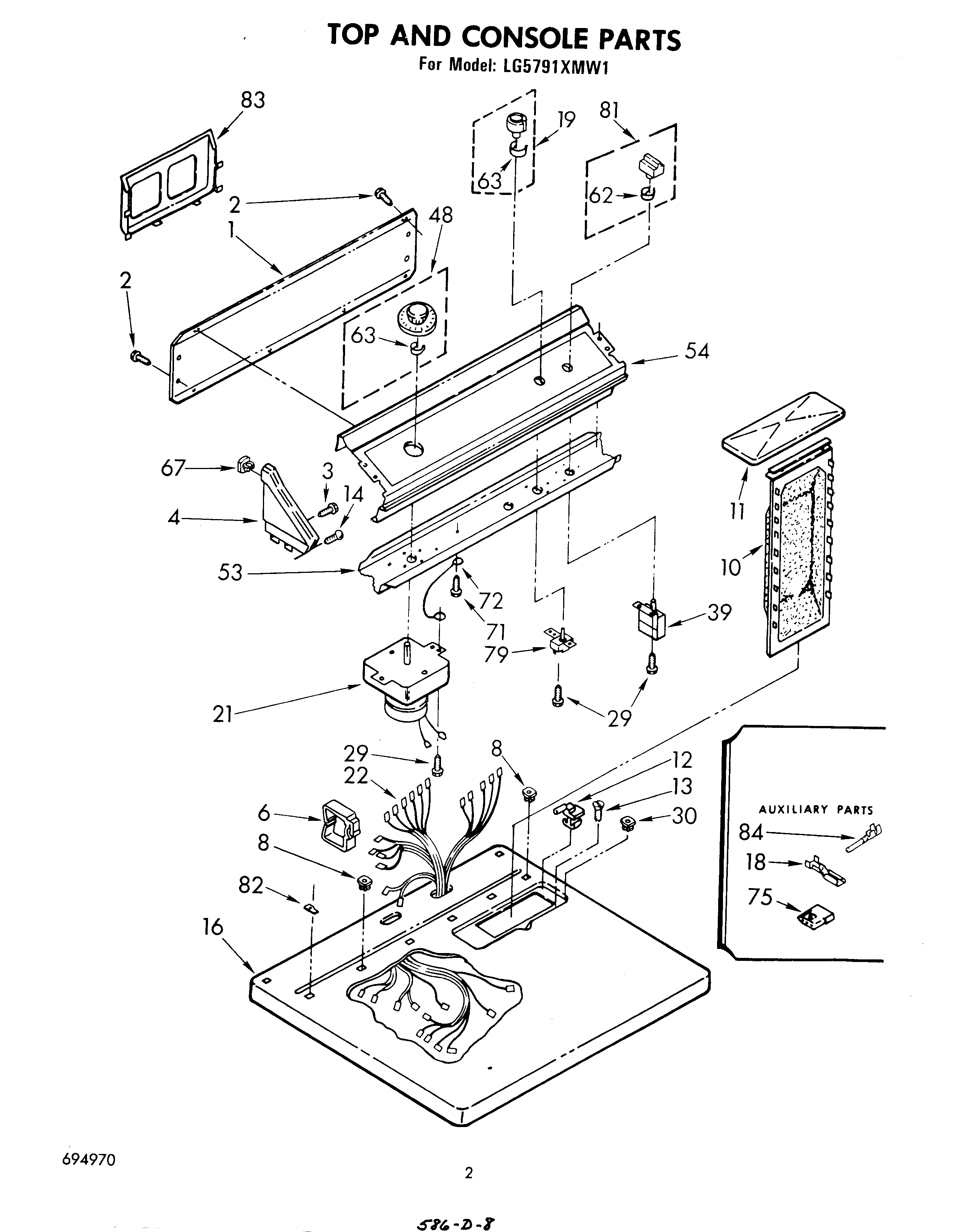

LG5791XMW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT693680
72113 Whirlpool Touch-Up Paint
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
Wire, 25` Roll (Red 12 Ga.)
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
WPL LIT677971
WPL 261880
WPL LIT677967
WPL LIT694970
Washer (Belt Drive)
Guide, Dryer
WPL LIT694344
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
799344 Whirlpool Refrigerator Paint
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
Almond (Uncut)
Leveler (Thinner)
WP72107 Whirlpool Touchup
350938 Whirlpool Spray Gun
350930 Whirlpool White Spray Paint
Dryer
1Panel, Rear Console
3WPL 355326
4Cap, End L.H. (White)
4Cap, End L.H. (Platinum)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End L.H. (Golden Harvest)
4Cap, End L.H. (Toast)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (Platinum Cap, End (R.H.))
4Cap, End (L.H.) (Toast)
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
6Clip, Harness (Rear Bulkhead Area)
8Nut, Push-In (2)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Screw, 8-18 x 1 (2)
16Top (Almond)
16Top (Golden Harvest)
16top (white)
16Top (Toast)
16Top (Platinum)
18WP94614 Whirlpool Terminal
19Control Knob Assembly
21Timer Assembly 60 Hz.
22Harness, Wiring
29WP3390631 Whirlpool Screw
3098460 Whirlpool Nut
39(Alt.)
39Switch, Push-To-Start
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62Clip
63WP688805 Whirlpool Spring Clip
67Nut, Push-In (4)
71SCREW
72Wire, Ground
75353424 Whirlpool Connector
75Connector (Door Switch)
79WPL 695091
81Button Assembly
82Stop, Push-In Top
83Rack, Literature
84WP596797 Whirlpool Terminal
