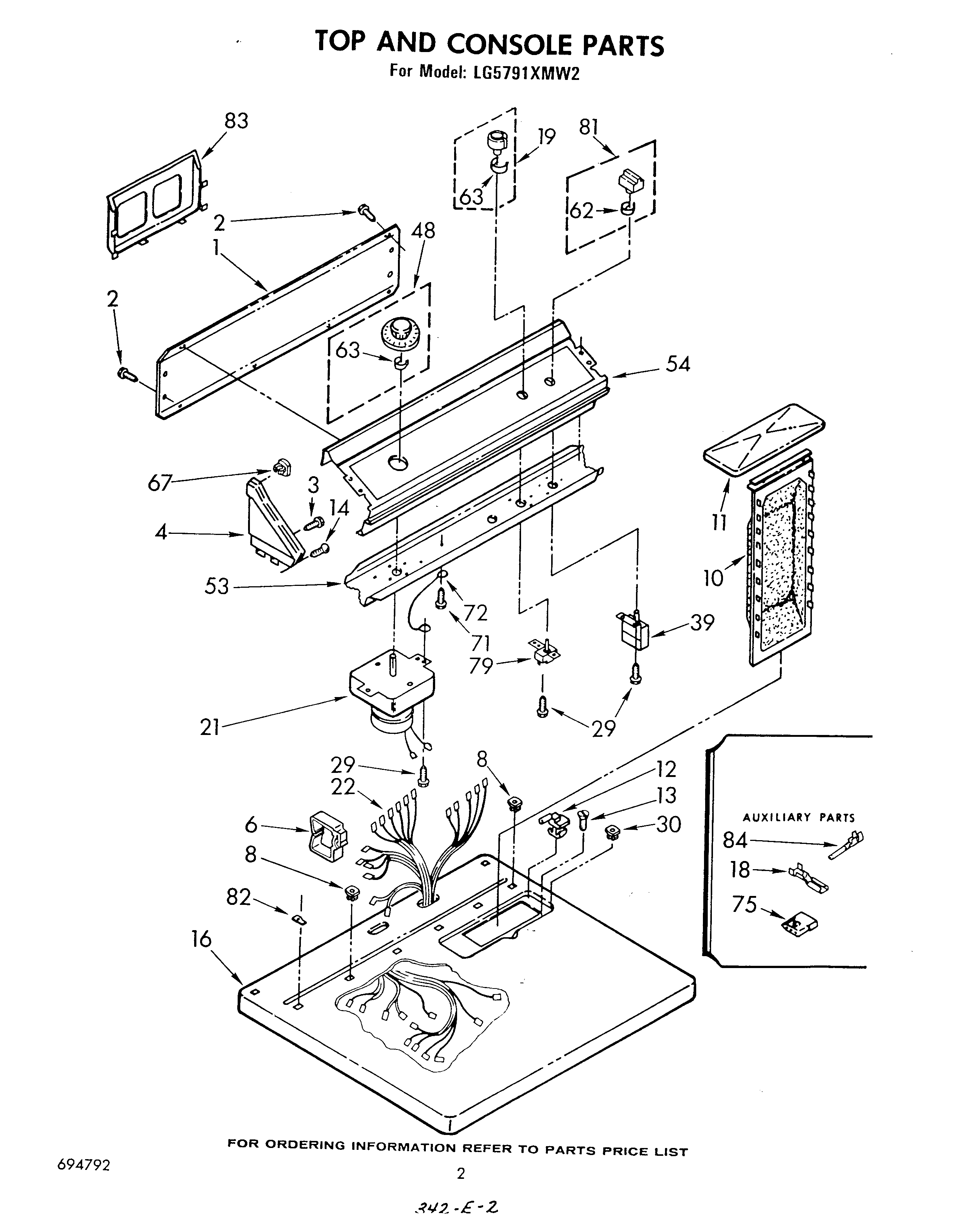

LG5791XMW2 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG5791XMW2 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG5791XMW2 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
Almond (Uncut)
799344 Whirlpool Refrigerator Paint
1Panel, Rear Console
3WPL 355326
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (White)
4Cap, End L.H. (White)
6Clip, Harness (Rear Bulkhead Area)
8Nut, Push-In (2)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Screw, 8-18 x 1 (2)
16Top (Almond)
16top (white)
18WP94614 Whirlpool Terminal
19Control Knob Assembly
21Timer Assembly 60 Hz.
22Harness, Wiring
29WP3390631 Whirlpool Screw
3098460 Whirlpool Nut
39Switch, Push-To-Start
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62Clip
63WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
71SCREW
72Wire, Ground
75Connector (Door Switch)
75353424 Whirlpool Connector
79WPL 695091
81Button Assembly
82Stop, Push-In Top
83Rack, Literature
84WPL 694344
84WPL 693680
84350938 Whirlpool Spray Gun
84350956 Whirlpool Spray Assembly
8472017 Whirlpool Appliance Touch-Up Paint White
84350930 Whirlpool White Spray Paint
84WP72107 Whirlpool Touchup
84Leveler (Thinner)
84WP596797 Whirlpool Terminal
84WPL 693849
84WPL 799351
84List, Service Parts
