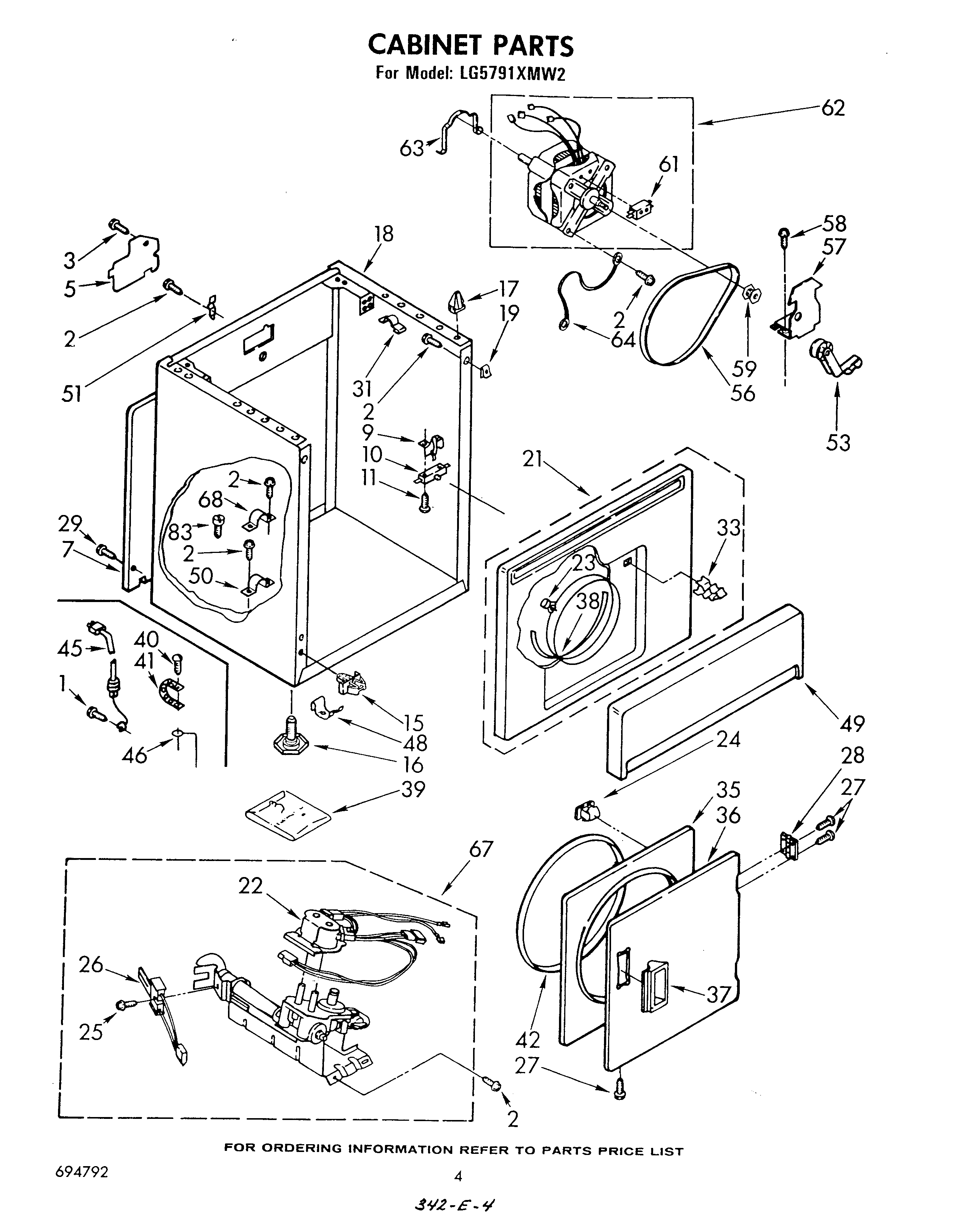

LG5791XMW2 03 – CABINET

LG5791XMW2 03 – CABINET

Written by

in

LG5791XMW2 03 – CABINET

Products

PositionProduct
2SCREW
5W11736322 Whirlpool Cover Assembly
7Panel, Rear
9WP691581 Whirlpool Actuator
10W10820036 Whirlpool Door Switch Kit
11WP98129 Whirlpool Screw
15Clip, Toe Panel
1649621 Whirlpool Leveling Feet
17WP18776 Whirlpool Lock
18Cabinet (Almond)
18Cabinet (White)
18Cabinet (Golden Harvest)
19WP98234 Whirlpool Nut
21Upper Front Panel Assembly (Almond)
21Front Panel Assembly (White)
22279923 Whirlpool Gas Valve
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
25WPW10366705 Whirlpool Screw
26279311 Whirlpool Dryer Flat Igniter with Bracket
27WP694091 Whirlpool Screw
28WP348023 Whirlpool Hinge
29WP489069 Whirlpool Compactor Screw
318528351 Whirlpool Clip
35280077 Whirlpool Door
36Door, Front (Almond)
36WP348205 Whirlpool Door
37Handle, Door (Almond)
37WP686711 Whirlpool Door Handle
38279264 Whirlpool Bearing and Seal Kit
39Kit, Conversion Type 1 To Type 3 (MFD)
3949572A Whirlpool Dryer Propane Gas Conversion Kit
40Screw, Ground (10-24 x 1)
41Strap, Ground
42W11613302 Whirlpool Door Seal
45W11222083 Whirlpool Power Cord
46WPL 364089
48WP297092 Whirlpool Clip
49Panel, Toe (White)
49Panel, Toe (Almond)
50Clamp, Pipe (Front)
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
61279827 Whirlpool Dryer Drive Motor
61WP660658 Whirlpool Clamp
64Wire, Ground (Motor)
67Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
68341029 Whirlpool Clamp
83WPL 343826
